10m 11m 12m 15m Class2 Class3 Steel Power Pole S500MC With Galvanization

China 10m 11m 12m 15m Class2 Class3 Steel Power Pole S500MC With Galvanization supplier
10m 11m 12m 15m Class2 Class3 Steel Power Pole S500MC With Galvanization supplier 10m 11m 12m 15m Class2 Class3 Steel Power Pole S500MC With Galvanization supplier 10m 11m 12m 15m Class2 Class3 Steel Power Pole S500MC With Galvanization supplier 10m 11m 12m 15m Class2 Class3 Steel Power Pole S500MC With Galvanization supplier 10m 11m 12m 15m Class2 Class3 Steel Power Pole S500MC With Galvanization supplier

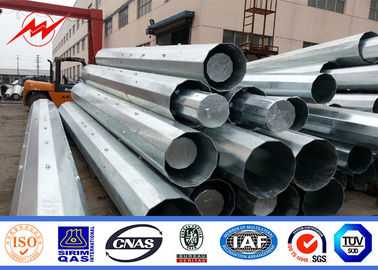

Large Image :  10m 11m 12m 15m Class2 Class3 Steel Power Pole S500MC With Galvanization

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/SGS
Model Number: Electric Steel Power Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 container
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 30 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
Detailed Product Description
Product Name: Steel Power Pole Application: Distribution Line
Material: S500MC Minimum Yield Strength: 500 Mpa
Max Ultimate Tensile Strength: 620 Mpa Wall Thickness: 3.5mm 4mm

 Ghana 10m 11m 12m 15m class2 class3 steel power pole S500MC with galvanization





  Descripition of material:
  1. Poles are made by the high-quality metal plants,which were molded into the multi-row cone-shaped     vertical steel barwith hot galvanized anti-corrosion treatment
  2. Light plate frame is made by high-quality stainless steel
  3. Fastened bolts and nuts of stainless steel

 10m 11m 12m 15m Class2 Class3 Steel Power Pole S500MC With Galvanization









 Specification:



Suit for Electricity distribution
Shape Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Material Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,
SS490, to ST52-
Torlance of the dimenstion +- 2%
Power 10 KV ~550 KV
Safety Factor Safety factor for conducting wine : 8
Safety factor for grounding wine : 8
Design Load in Kg 300~ 1000 Kg appliced to 50cm from the to pole
Marks Nane palte through rivert or glue ,engrave ,emboss as per customer requirement
Surface treatment Hot dip galvanized Following ASTM A 123,
color polyester power or any other standard by client required
Joint of Poles Insert mode,innerflange mode,face to face joint mode
Design of pole Against earthquake of 8 grade
Wind Speed 160 Km/Hour . 30 m /s
Minimum yield strength 355 mpa
Minimum ultimate tensile strength 490 mpa
Max ultimate tensile strength 620 mpa
Standard ISO 9001
Length of per section Within 14m once forming without slip joint
Welding We has past flaw testing.Internal and external double welding makes
the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1
Thickness 1 mm to 30 mm
Production Process Rew material test → Cuttingj →Molding or bending →
Welidng (longitudinal )→Dimension verify →Flange welding
→Hole drilling →Calibration → Deburr→Galvanization or
powder coating ,painting →Recalibration →Thread →Packages
Packages Our poles as normal cover by Mat or straw bale at the top and bottom ,
anyway also can following by client required , each 40HC or OT can
loading how many pcs will calculation base on the client actually
specification and data

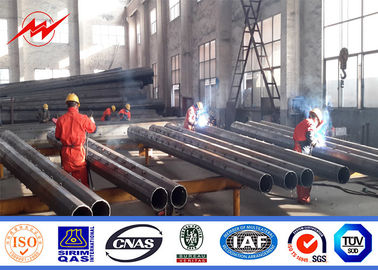

 Production Process
 Raw material test → Cutting →bending →Welding (longitudinal )→Dimension verify →Flange welding  →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting  →Recalibration →Packages

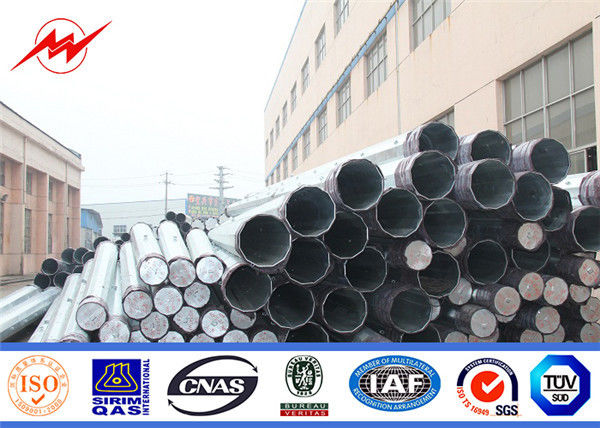

  Package

  Packing with blanket or according to client’s request.

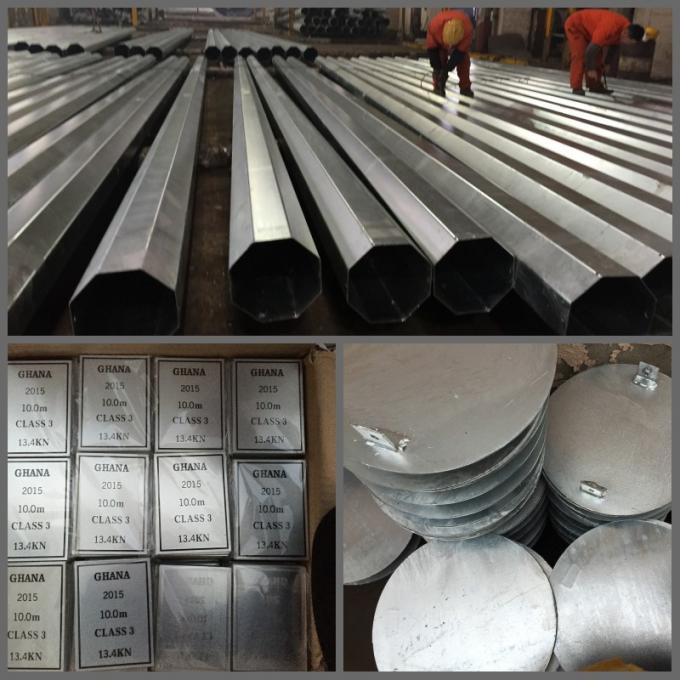

  Name Plate

 10m 11m 12m 15m Class2 Class3 Steel Power Pole S500MC With Galvanization





 Quality Control
 We strictly follow the standard of ISO9001-2008. Quality is in the first place at every stage of production  to  ensure the product compliance to the specification/standards. Careful inspections are carried out by  highly trained inspection engineers during every procedure from raw material stage to finished product  and  delivery.

 10m 11m 12m 15m Class2 Class3 Steel Power Pole S500MC With Galvanization
