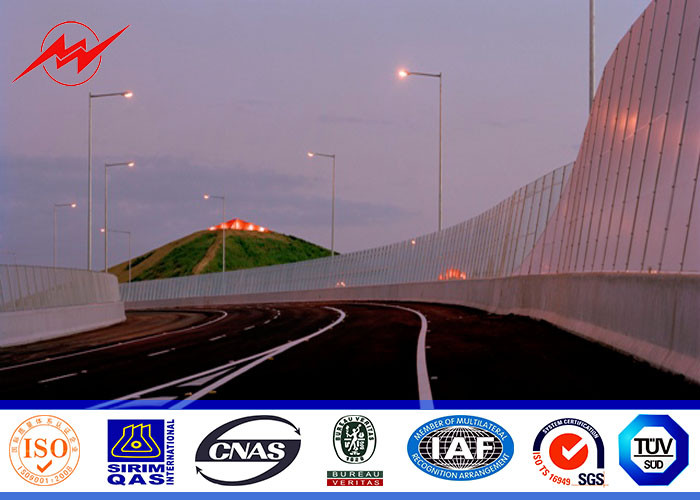

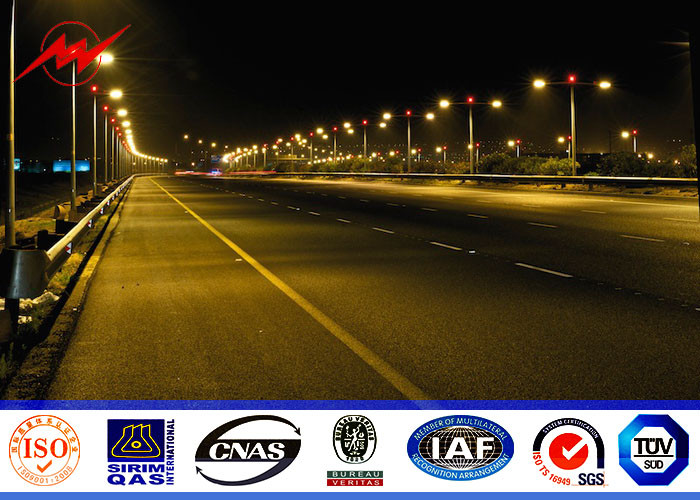

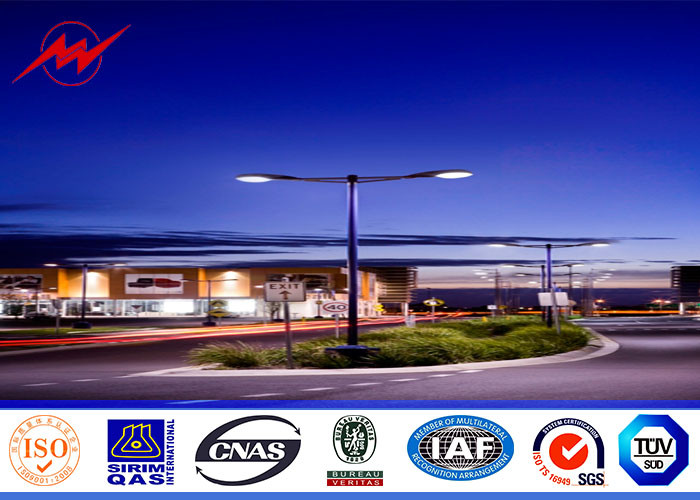

10mm 3mm wall thickness Galvanized Steel Pole for highway light

China 10mm 3mm wall thickness Galvanized Steel Pole for highway light supplier
10mm 3mm wall thickness Galvanized Steel Pole for highway light supplier 10mm 3mm wall thickness Galvanized Steel Pole for highway light supplier 10mm 3mm wall thickness Galvanized Steel Pole for highway light supplier 10mm 3mm wall thickness Galvanized Steel Pole for highway light supplier

Large Image :  10mm 3mm wall thickness Galvanized Steel Pole for highway light

Product Details:

Place of Origin: Yixing,Jiangsu,China
Brand Name: Milky Way
Certification: ISO9001
Model Number: Street Light Poles

Payment & Shipping Terms:

Minimum Order Quantity: 1 Poles
Price: Negotation
Packaging Details: Naked Package or customerized
Delivery Time: 10-30 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 30,000 Tons per month
Detailed Product Description
Pole Section: Single Section Painting Color: Black And White Color
Light Wattage: 30w To 60w LED Light Arm Type: One Or Two Arms
Surface Treatment: Galvanization And Powder Coating Pole Shape: Round,octagonal
Average Gavanzation Thickness: According To The Pole Thickness
High Light:

steel transmission poles

,

power line pole

10mm 3mm wall thickness Galvanized Steel Pole for highway light



Quick Details for Galvanized Steel Pole



Item No

 10mm 3mm wall thickness Galvanized Steel Pole for highway light

Height

 10M

Thickness

 3mm,5mm,3.5mm,4mm,4.5mm

Shape

 According to customer's design or our standard shape such as Conical,round,octagonal,dodecagon

Material

Q345B/A572,minimum yield strength>=345n/mm2

Q235B/A36,minimum yield strength>=235n/mm2

Q460, minimum yield strength>=460n/mm2

Wind Design

32 m/s or 35m/s

Suit for

street way,Airport,seaport,plaza,stadium,square,highway



Applications



Street Lighting

Open area Lighting

Yard Lighting

Periphery Lighting

Signage Lighting



Prodcut Workshop



10mm 3mm wall thickness Galvanized Steel Pole for highway light 0



Pole Type



Flange Based

Ground Planted

Shear Based



10mm 3mm wall thickness Galvanized Steel Pole for highway light 1



MATERIAL



Material used to fabricate the pole components will be in accordance of international standards and as per the project specifications.

Main Material is Q235,Q345,Gr65 or as specified in the customer specification.



FINISHING



Shaft, Base plate, Arm Bracket and other accessories are hot dip galvanized according to BS EN 1461 and its recent revisions, the minimum average coating thickness is according to BS EN 1461, or as per the customer requirements, but not more than 70 microns average.



No welding, cutting or drilling is done after galvanizing.



The anchor bolts including nuts and washers are rough black or hot dip galvanised according to ASTM A 123 as per customized requirement.





SHAPE



Anchor Bolts

• Available in 24" x 3/4", 36" x 1", 48" x 1 1/4" and 54" x 1 1/2"

• Hot dip galvanized

• Supplied as optional product

• Standard re-Bar conforming to C.S.A. Standard CAN/CSA - G30.18-M Grade 400 for

24" X 3/4". Higher grades for larger sizes.

• Supplied with hexagon nut and washer

Nut & Bolt Cover

• Supplied with pole. Designed to fit 1", 1 1/4" and 1 1/2" bolts.

• High strength polyurethane

• Available in colours

Handhole

•Pole is supplied with 4" x 7" handhole, grounding stud and handhole cover

The standard tenon size is 2 3/8" O.D. by 7" long.

Any designs not shown in this catalogue can be produced by Nova Pole International

and inquiries should be communicated to company representatives.

Approval drawings are available on request.

All measurements shown here are imperial measure (inches, square inches and feet)

unless otherwise noted.



Light Type

10mm 3mm wall thickness Galvanized Steel Pole for highway light 2



Company:



Jiangsu Milky Way specialize in offering a wide range of Octagonal Poles that is used in street light poles. These poles are fabricated using high grade raw material like steel Q235 and latest technology as per the international quality standards. Moreover, these are available in customized options to suit the varied requirements of the clients.
