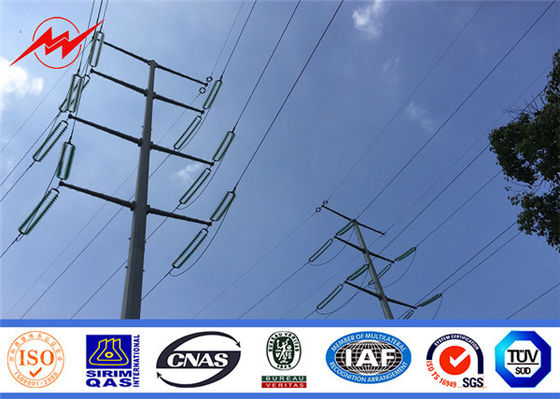

110kv 27.5m Tapered Steel Tubular Pole For Power Transmission Hot Dip Galvanized

China 110kv 27.5m Tapered Steel Tubular Pole For Power Transmission Hot Dip Galvanized supplier
110kv 27.5m Tapered Steel Tubular Pole For Power Transmission Hot Dip Galvanized supplier 110kv 27.5m Tapered Steel Tubular Pole For Power Transmission Hot Dip Galvanized supplier 110kv 27.5m Tapered Steel Tubular Pole For Power Transmission Hot Dip Galvanized supplier 110kv 27.5m Tapered Steel Tubular Pole For Power Transmission Hot Dip Galvanized supplier 110kv 27.5m Tapered Steel Tubular Pole For Power Transmission Hot Dip Galvanized supplier 110kv 27.5m Tapered Steel Tubular Pole For Power Transmission Hot Dip Galvanized supplier

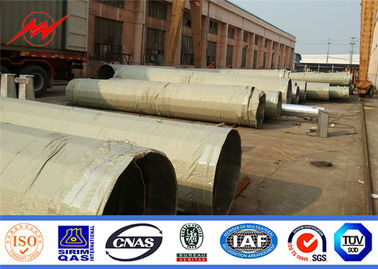

Large Image :  110kv 27.5m Tapered Steel Tubular Pole For Power Transmission Hot Dip Galvanized

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/SGS
Model Number: Steel Tubular Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
Detailed Product Description
Product Name: Steel Tubular Pole Welding Standard: AWSD 1.1
Material: Q345 Wall Thickness: 3mm
Warranty: 15 Years Life Time: 50 Years

110kv 27.5m hot dip galvanized tapered Steel Tubular Pole





 Steel
 The material is in accordance with NF EN 10025
 Standard and NF EN 10149 Standard,it has the following property.
 -Yield Strength=355N/mm2
 -Toughness remains the same under 20 degrees below zero.
 -Galvanization is in accordance with NFA35503 Standard Class 1.





 Manufacture Tolerance
 -Component Length:-25mm to 75mm
 -Straightness:2mm/m
 -Twisting degree:1°per 3 meters length
 -Ovalisation:Maximum is 3%
 -The average diameter:+/-0.5%
 -Slip length:+/-150mm





 Specification:



Suit for Electricity distribution
Shape Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Material Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,
SS490, to ST52-
Torlance of the dimenstion +- 2%
Power 10 KV ~550 KV
Safety Factor Safety factor for conducting wine : 8
Safety factor for grounding wine : 8
Design Load in Kg 300~ 1000 Kg appliced to 50cm from the to pole
Marks Nane palte through rivert or glue ,engrave ,emboss as per customer requirement
Surface treatment Hot dip galvanized Following ASTM A 123,
color polyester power or any other standard by client required
Joint of Poles Insert mode,innerflange mode,face to face joint mode
Design of pole Against earthquake of 8 grade
Wind Speed 160 Km/Hour . 30 m /s
Minimum yield strength 355 mpa
Minimum ultimate tensile strength 490 mpa
Max ultimate tensile strength 620 mpa
Standard ISO 9001
Length of per section Within 14m once forming without slip joint
Welding We has past flaw testing.Internal and external double welding makes
the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1
Thickness 1 mm to 30 mm





 Welding
 We have past flaw testing. Internal and external double welding makes the welding beautiful in shape
 Welding Standard :AWS ( American Welding Society ) D 1.1

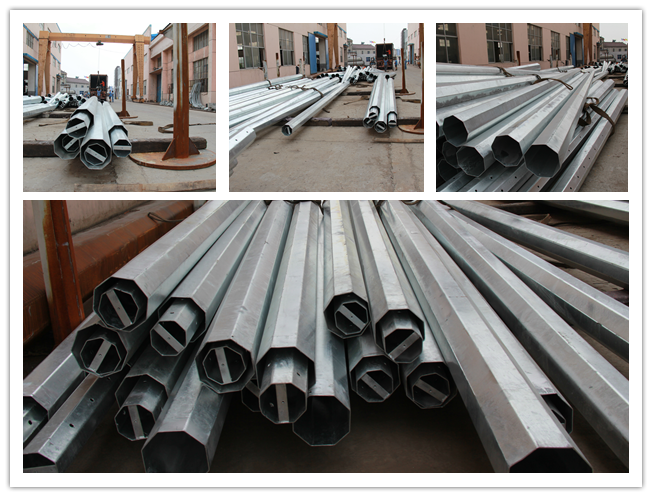

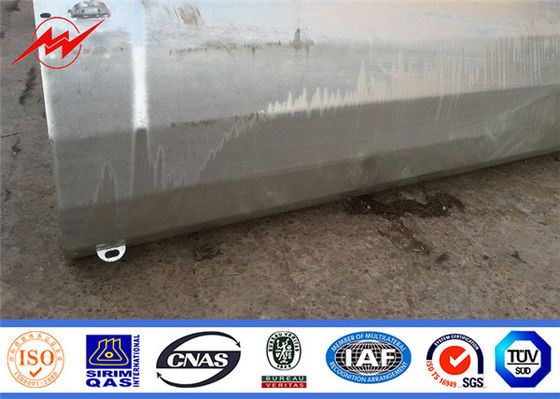

110kv 27.5m Tapered Steel Tubular Pole For Power Transmission Hot Dip Galvanized





 Surface Treatment
 Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.

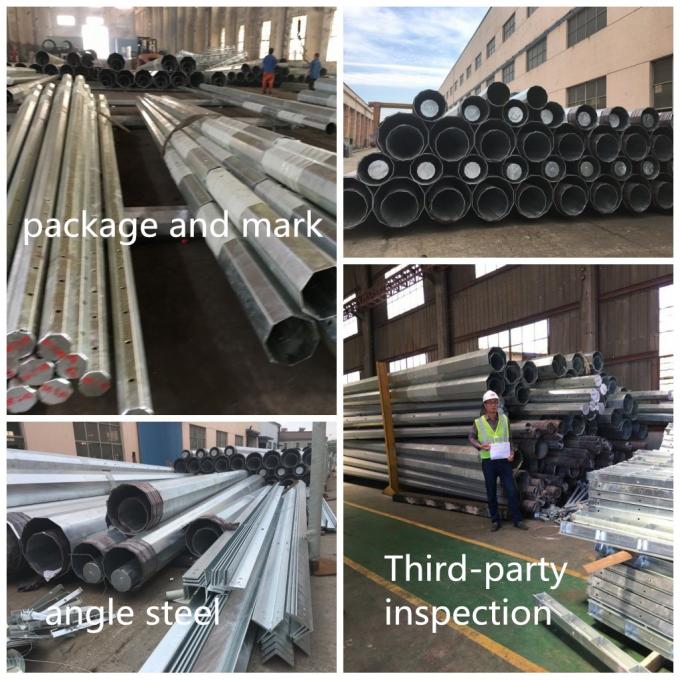

 Quality Control
 We strictly follow the standard of ISO9001-2008. Quality is in the first place at every stage of production  to ensure the product compliance to the specification/standards. Careful inspections are carried out by  highly trained  inspection engineers during every procedure from raw material stage to finished product  and delivery.

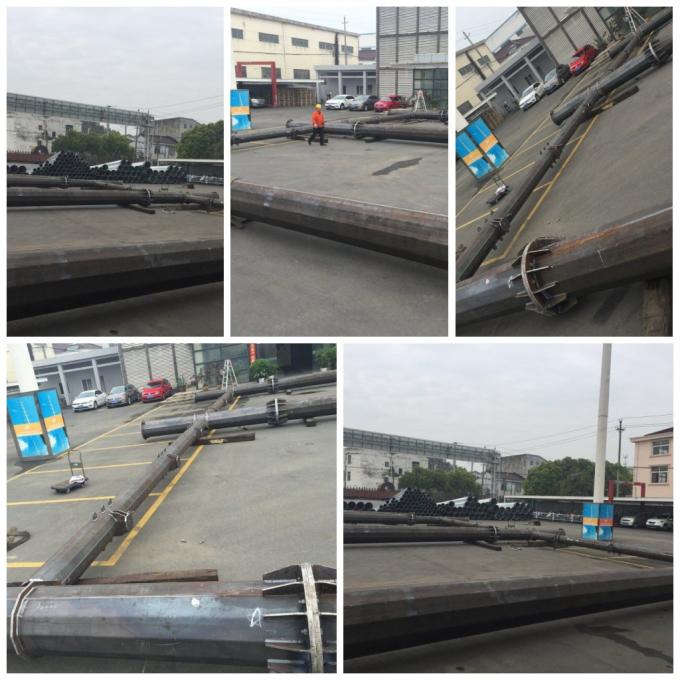

More Projects--Ghana Electricity Company visit on site

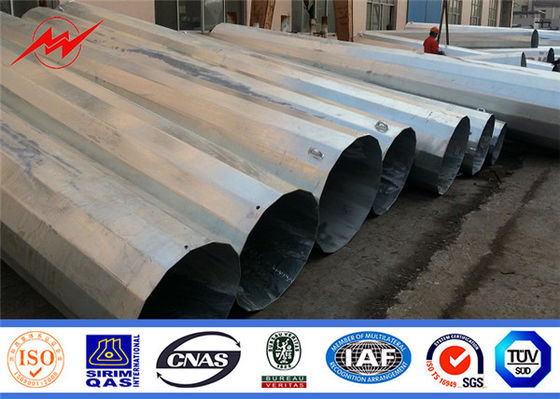

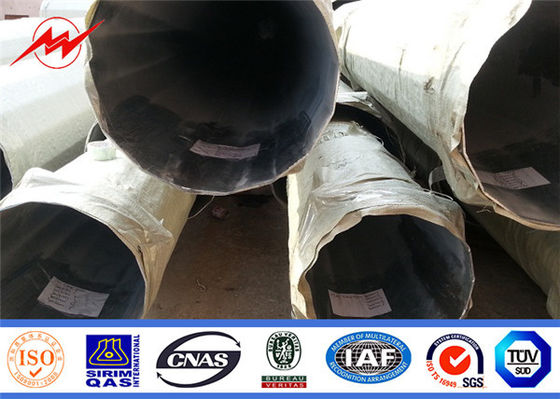

110kv 27.5m Tapered Steel Tubular Pole For Power Transmission Hot Dip Galvanized

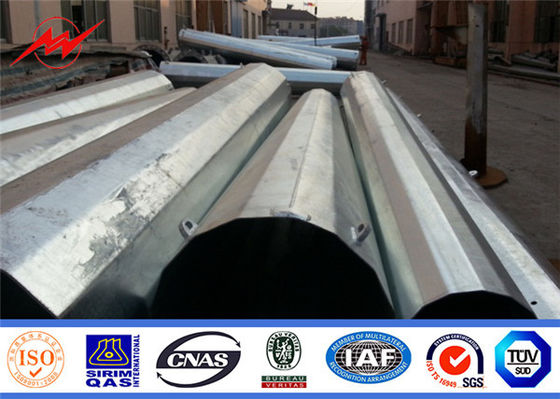

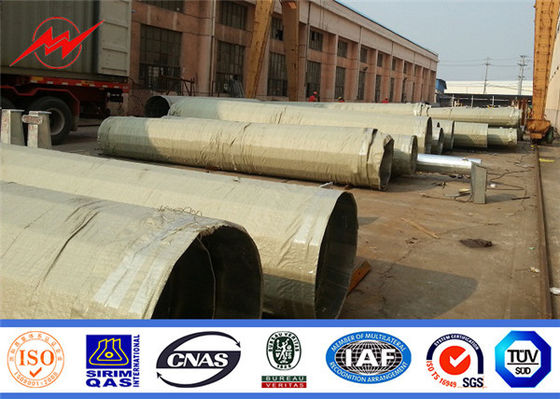

110kv 27.5m Tapered Steel Tubular Pole For Power Transmission Hot Dip Galvanized
