11kv Conical Electrical Hot Dip Galvanized Steel Utility Poles 2.5mm to 10mm Thickness

China 11kv Conical Electrical Hot Dip Galvanized Steel Utility Poles 2.5mm to 10mm Thickness supplier
11kv Conical Electrical Hot Dip Galvanized Steel Utility Poles 2.5mm to 10mm Thickness supplier 11kv Conical Electrical Hot Dip Galvanized Steel Utility Poles 2.5mm to 10mm Thickness supplier 11kv Conical Electrical Hot Dip Galvanized Steel Utility Poles 2.5mm to 10mm Thickness supplier 11kv Conical Electrical Hot Dip Galvanized Steel Utility Poles 2.5mm to 10mm Thickness supplier

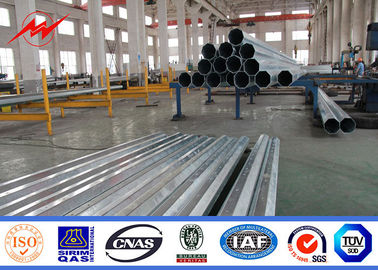

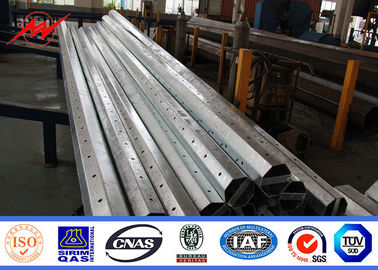

Large Image :  11kv Conical Electrical Hot Dip Galvanized Steel Utility Poles 2.5mm to 10mm Thickness

Product Details:

Place of Origin: China
Brand Name: Milky Way
Certification: ISO//BV
Model Number: Hot Dip Galvanized Steel Power Pole For Powerful Transmission Line

Payment & Shipping Terms:

Minimum Order Quantity: one 40HQ
Price: negotiation
Packaging Details: as per customer request
Delivery Time: usually 2 weeks after confirming
Payment Terms: T/T
Supply Ability: 300 pieces pole per day
Detailed Product Description
Type: Straight Pole, Tensile Pole,turn Pole Thickness: 1mm To 30mm
Power: 10kv~550kv Design Of Pole: Against Earthquake Of 8 Grade
Wind Speed: 160km/h, 30m/s Welding Standard: AWS D 1.1
High Light:

electric utility poles

,

steel utility poles

11kv Conical Electrical Hot Dip Galvanized Steel Power Pole 2.5mm to 10mm Thickness



Company Information



Established in 1991,Jiangsu Milky Way Steel Poles is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .

Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on.



We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV transmission poels ,our products have been deliveried to more than 70 contries and areas ,including America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia , Dominica, Congo, Togo and Guniea so on.



Packaging
Size
40HQ
Weight
26 T
Packaging Details
Our poles as normal cover by sea/road-worthy wooden packing material, anyway also can following by client required, each 40HQ or OT can loading how many pcs will calculation base on the client actually specification and date.



Mechanical Property



The metal supports are designed to withstand the nominal force F and the pressure of the wind V applied at 0.25m from the top. Under these loads, the safety factor with respect to the elastic limit of the steel is larger than 1.8. The post also resists a torque equal to (F+V) ×1m. Tests shows the load intervened when breaking is around 2 times of design load.





Galvanization



Standard: NFA91121

Average thickness of the galvanization: Not less than 70



11kv Conical Electrical Hot Dip Galvanized Steel Utility Poles 2.5mm to 10mm Thickness 0



Maintenance



The hot dip galvanization treatment can increase the service life of the steel pole without the environmental pollution and no need for other daily maintenance. The following described types are specially designed for Africa Market which can meet the regulated height and load standard of France electricity power company.





Production



Our steel pole is bent to form to the polygonal (conical) section firstly. Then it is welded by the automatic submerged-arc. Then it is welded by the automatic submerged-arc welding machine.



Thirdly the top cap, strip and base plate will be welded to the pole. And finally other accessories (support brackets, ladder support, etc.) will be welded to the pole shaft.

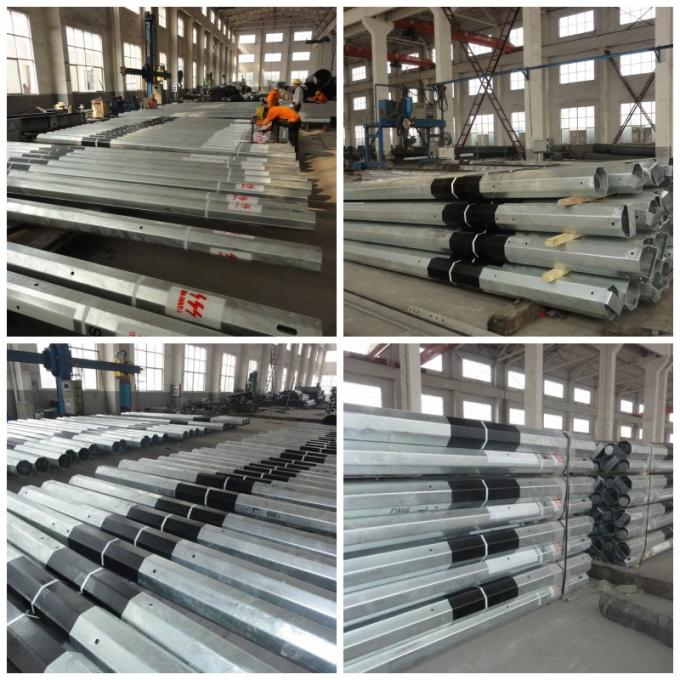

11kv Conical Electrical Hot Dip Galvanized Steel Utility Poles 2.5mm to 10mm Thickness 1



Manufacturer Tolerance



- Component Length: -25mm to 75mm

- Straightness: 2mm/m

- Twisting degree: 1̊ per 3 meters length

- Ovalisation : Maximum is 3%

- The average diameter : +/-0.5%

-Slip length: +/-150mm





Mechanical Property



The metal supports are designed to withstand the nominal force F and the pressure of the wind V applied at 0.25m from the top. Under these loads, the safety factor with respect to the elastic limit of the steel is larger than 1.8. The post also resists a torque equal to (F+V) ×1m. Tests shows the load intervened when breaking is around 2 times of design load.

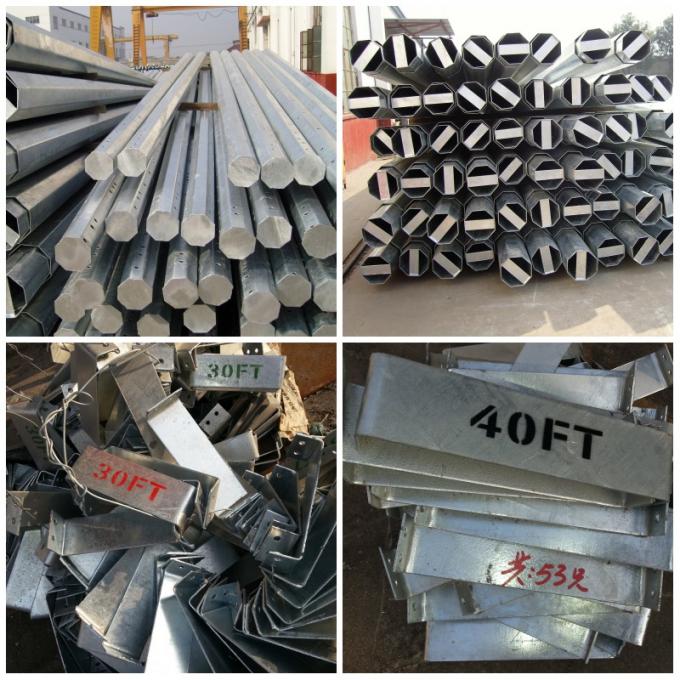

11kv Conical Electrical Hot Dip Galvanized Steel Utility Poles 2.5mm to 10mm Thickness 2
