11KV HDG Electric Transmission Power Pole 25M 20KN with Cross Arms

China 11KV HDG Electric Transmission Power Pole 25M 20KN with Cross Arms supplier
11KV HDG Electric Transmission Power Pole 25M 20KN with Cross Arms supplier 11KV HDG Electric Transmission Power Pole 25M 20KN with Cross Arms supplier 11KV HDG Electric Transmission Power Pole 25M 20KN with Cross Arms supplier 11KV HDG Electric Transmission Power Pole 25M 20KN with Cross Arms supplier

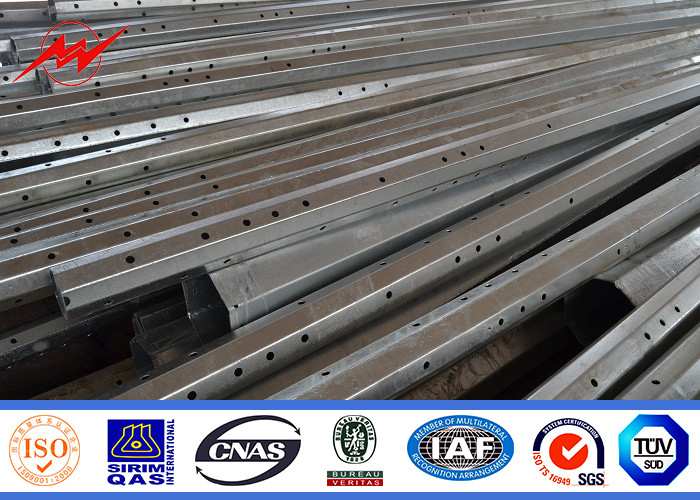

Large Image :  11KV HDG Electric Transmission Power Pole 25M 20KN with Cross Arms

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/
Model Number: Steel Electric Power Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Detailed Product Description
Product Name: Steel Electric Power Pole Application: Power Transmission
Galvanization Standard: ASTM A 123 Color: Silver
Cross Arm: Single Or Twice Cross Arm Finishing 1: Black Pole, Rough Pole
Finishing 2: Hot Dip Galvanizing Antirust
High Light:

electric power pole

,

transmission line poles

 11KV HDG Electric Transmission Power Pole 25M 20KN with Cross Arms





 Specification:



Material:

Hot rolled steel, Q235,Q345,S235,S355,SS400,Gr 50

Pole’s height

3m –15m

length

Within 16m once forming without slip joint

Wall thickness

2.3mm-30mm

Pole's Shape:

Round, Polygonal, Octagonal, Taper round, Round conical, Square

Arm type:

Single arm, Double arm, Tri-arm, Four-arm

Application:

Outdoor illumination, Road illumination, Street illumination

welding

It has past flaw testing, internal and external double welding makes the

welding beautiful in shape. It confirms with the international welding

standard of CWB.

Galvanizing

Hot dip galvanization with thickness of 80-100µm average in accordance

with Chinese standardGB/T 13912-2002 or American standard

ASTM A123, IS: 2626-1985.

Painting color:

Refer to client’s requirement and then according to (RAL)Color card

Finishing 1:

Black pole, Rough pole

Finishing 2:

Hot dip Galvanizing antirust.

Finishing 3:

HDG. with powder coating

Temperature range

-35 °C~+45 °C

Max wind velocity

Aganist wind pressure of 160Km/h

Base plate mounted

Base plate is square, octagonal or round in shape with slotted holes

for anchor bolt and dimension as per customer’s requirement.

Ground mounted

The length buried underground as per customer’s requirement.

Quality Control

We are well equipped with superior production equipments,

solid technical strength, excellent managing mode and quality

control system, perfect after service. We have passed the ISO9001:2008

Quality Systems Authentication.

Certificates

ISO9001-2008,   Audited Supplier, The AAA grade certificate of goodwill

Other

Less land occupation & easy maintenance.





 Steel
 The material is in accordance with NF EN 10025
 Standard and NF EN 10149 Standard,it has the following property.
 - Yield Strength=355N/mm2
 - Toughness remains the same under 20 degrees below zero.
 - Galvanization is in accordance with NFA35503 Standard Class 1.

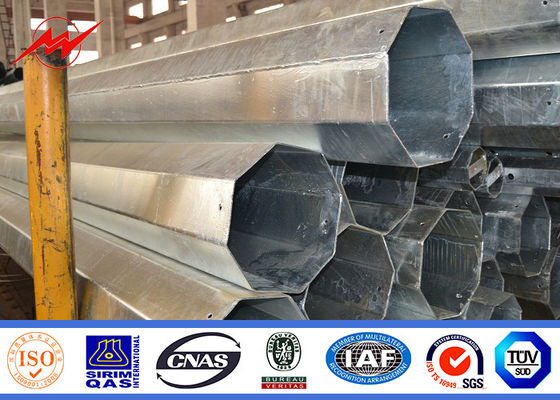

 11KV HDG Electric Transmission Power Pole 25M 20KN with Cross Arms 0



 Galvanization
 Standard:NFA91121
 Average thickness of the galvanization:Not less than 86μm.

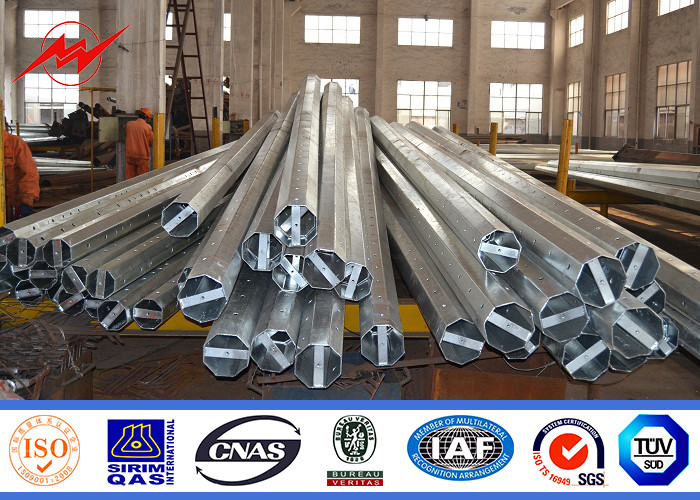

 11KV HDG Electric Transmission Power Pole 25M 20KN with Cross Arms 1





 Installation
 - Remove all the equipment on the pole during Assembly.
 - Circle a sling around th epole shaft of each section.
 - Fix the sling on top section to one pulley block.
 - The sling on the bottom section is tightly fixed and fixed at the center of gravity.
 - Make the steel pole vertical by tighten the sling of the top section.
 - Fix the steel pole.
 - Remove the sling.

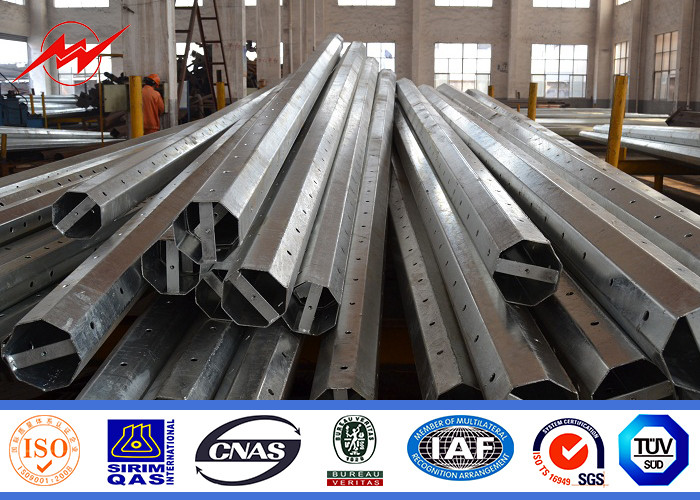

  11KV HDG Electric Transmission Power Pole 25M 20KN with Cross Arms 2
