11kv Polygonal Utility Power Poles Tower Galvanized Steel Overhead 25KN Load

China 11kv Polygonal Utility Power Poles Tower Galvanized Steel Overhead 25KN Load supplier
11kv Polygonal Utility Power Poles Tower Galvanized Steel Overhead 25KN Load supplier 11kv Polygonal Utility Power Poles Tower Galvanized Steel Overhead 25KN Load supplier 11kv Polygonal Utility Power Poles Tower Galvanized Steel Overhead 25KN Load supplier 11kv Polygonal Utility Power Poles Tower Galvanized Steel Overhead 25KN Load supplier 11kv Polygonal Utility Power Poles Tower Galvanized Steel Overhead 25KN Load supplier

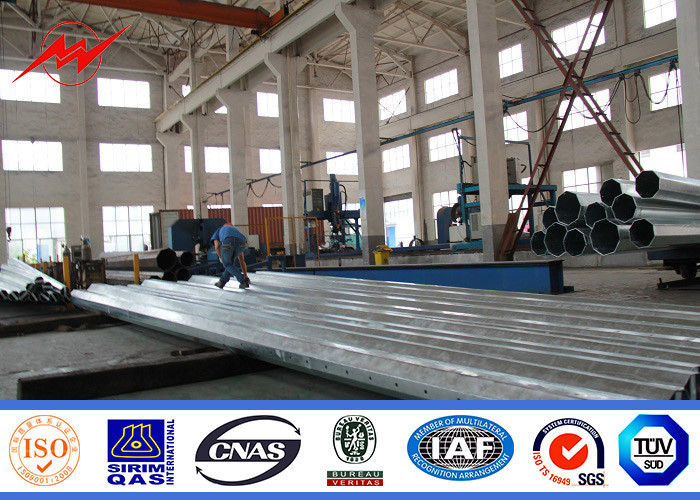

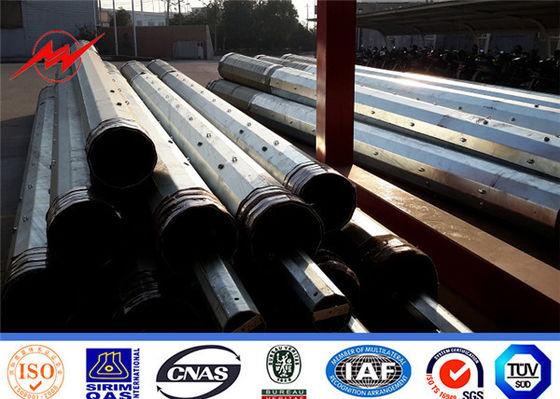

Large Image :  11kv Polygonal Utility Power Poles Tower Galvanized Steel Overhead 25KN Load

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/SGS
Model Number: Steel Utility Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
Detailed Product Description
Product Name: 132kv Power Utility Poles Polygonal Tower Galvanized Steel Electric Pole Load: 25KN
Thickness: 5mm Dimension Torlance: +- 2%
Welding Standard: AWS D 1.1 Galvanization Standard: ASTM A 123
Material: Gr65 Galvanization Thickness: Average Not Less Than 86μm

11kv Polygonal Utility Power Poles Tower Galvanized Steel Overhead Transmission Line



 Specifications:



Suit for

Power Transmission

Shape

Conoid ,Multi-pyramidal,Columniform,polygonal or conical

Power

10  KV ~550 KV

Safety Factor

Safety factor for conducting wine : 8
Safety factor for grounding wine : 8

Wind Speed

33 m /s

Minimum yield strength

355 mpa

Minimum ultimate tensile strength

490 mpa

Max ultimate tensile strength

620 mpa

Standard

ISO 9001

Length of per section

Within 14m once forming without slip joint

Welding

We has past flaw testing.Internal and external double welding makes
the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1

Production Process

Row material test → Cutting →Molding or bending →
Welding (longitudinal )→Dimension verify →Flange welding
→Hole drilling →Calibration → Deburr→Galvanization or
powder coating ,painting →Recalibration →Thread →Packages

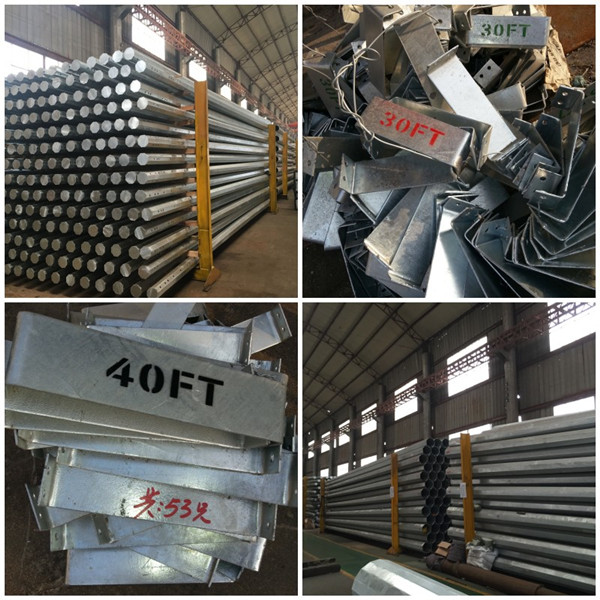

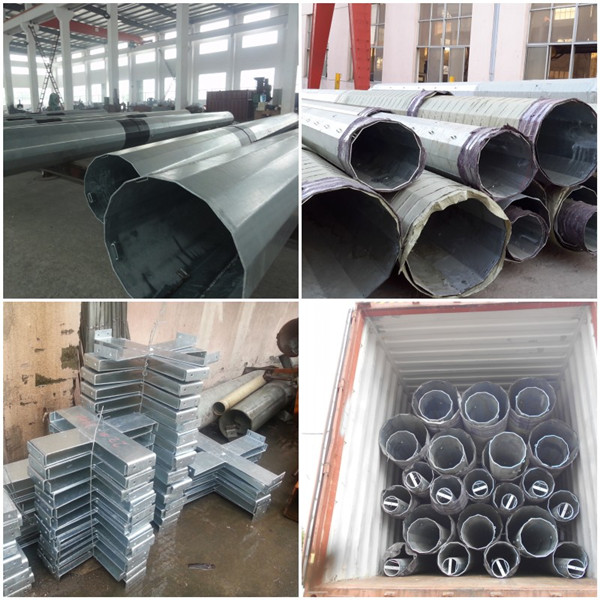

Packages

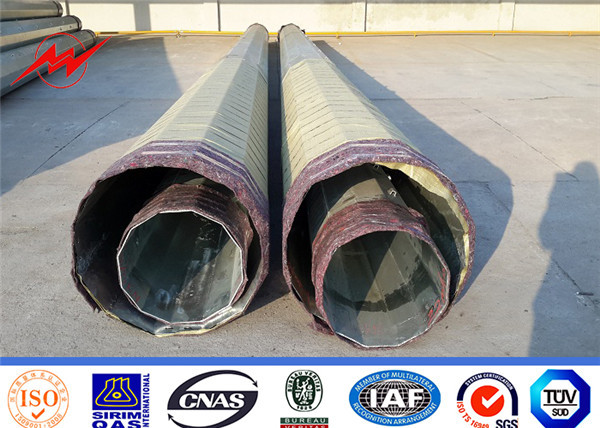

Our poles as normal cover by Mat or straw bale at the top and bottom ,
anyway also can following by client required , each 40HC or OT can
loading how many pcs will calculation base on the client actually
specification and data





 The followed design is based on ASTMA 572 Gr 65 material,with octagonal cross section shape,while the  safety factor is 1.8.If you have other requirement on load,height,material and cross section shape,pls  contact us.





 Description:

 Standard Accessory

 -Top plate

 -Base plate

 -Bottom strip

 -Standard hole

 -Climbing rung

 -Anchor bolt

 -Bitumen protection

 -Painted marking

 -Removable ladder

11kv Polygonal Utility Power Poles Tower Galvanized Steel Overhead 25KN Load



 The information to inquiry or purchase
 -Steel pole height and force
 -Cross arm type and length,the position to install in the steel pole
 -The method to fix the cross arm(use bolt to connect or use one or two template to weld in the steel pole  to install the cross arm)
 -Safety factor of the steel pole
 -Wind speed
 -Type of climbing rung
 -Destination port
 -Other.





Pole Dimension

11kv Polygonal Utility Power Poles Tower Galvanized Steel Overhead 25KN Load











 Company Introduction:
 Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of  the largest sea port of China ,Shanghai,Port .
 Our Company has 24 years experience on producing the steel poles including the transmission power  pole,street light pole,high mast pole and so on.
 We exported to oversea countries since 1991 and our products have been delivered to more than 70  countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa  and so on.
 We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the  high mast pole for Sochi Winter Olympic Game and so on.



11kv Polygonal Utility Power Poles Tower Galvanized Steel Overhead 25KN Load
