12M 600daN Steel Utility Pole Gr65 Material for 55KV Power Distribution

China 12M 600daN Steel Utility Pole Gr65 Material for 55KV Power Distribution supplier
12M 600daN Steel Utility Pole Gr65 Material for 55KV Power Distribution supplier 12M 600daN Steel Utility Pole Gr65 Material for 55KV Power Distribution supplier 12M 600daN Steel Utility Pole Gr65 Material for 55KV Power Distribution supplier 12M 600daN Steel Utility Pole Gr65 Material for 55KV Power Distribution supplier

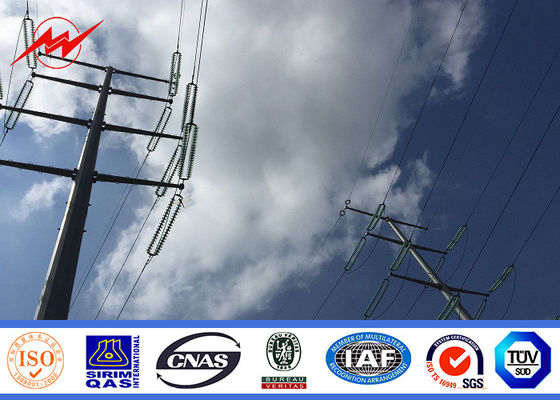

Large Image :  12M 600daN Steel Utility Pole Gr65 Material for 55KV Power Distribution

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/SGS
Model Number: Steel Utility Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
Detailed Product Description
Product Name: Steel Utility Pole Application: Power Transmission
Surface Treatment: Hot Dip Galvanization Lift Time: 50 Years
Galvanization Standard: ASTM A 123 Material: Gr65
Warranty: 15 Years Dimenstion Torlance: +- 2%
Standard: ISO
High Light:

metal utility poles

,

electric telescoping pole

12M 600daN Steel Utility Pole Gr65 Material for 55KV Power Distribution



 Description:

 Our Transmission Pole is designed for the high voltage power transmission and low voltage power  transmission.
 Designed and manufacutred for durability, corrosion resistance and visual appeal.

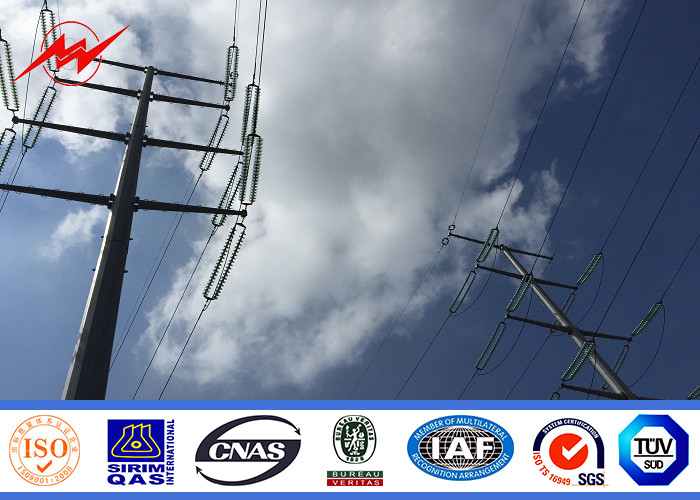

 12M 600daN Steel Utility Pole Gr65 Material for 55KV Power Distribution 0



 Specifications:



Material

Usually Q345B/A572
Q235B/A36
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,
SS490, to ST52-

Torlance of the dimension

+- 2%

Power

10  KV ~550 KV





Marks

Name plate through rivert or glue ,engrave ,emboss as per customer requirement

Surface treatment

Hot dip galvanized Following ASTM A 123,
color polyester power or any other standard by client required

Joint of Poles

Insert mode,inner flange mode,face to face joint mode

Design of pole

Against earthquake of 8 grade

Wind Speed

33 m /s

Minimum yield strength

355 mpa

Minimum ultimate tensile strength

490 mpa

Max ultimate tensile strength

620 mpa

Standard

ISO 9001

Length of per section

Within 14m once forming without slip joint





 The information to inquiry or purchase
 -Steel pole height and force
 -Cross arm type and length,the position to install in the steel pole
 -The method to fix the cross arm(use bolt to connect or use one or two template to weld in the steel pole  to install the cross arm)
 -Safety factor of the steel pole
 -Wind speed
 -Type of climbing rung
 -Destination port
 -Other.

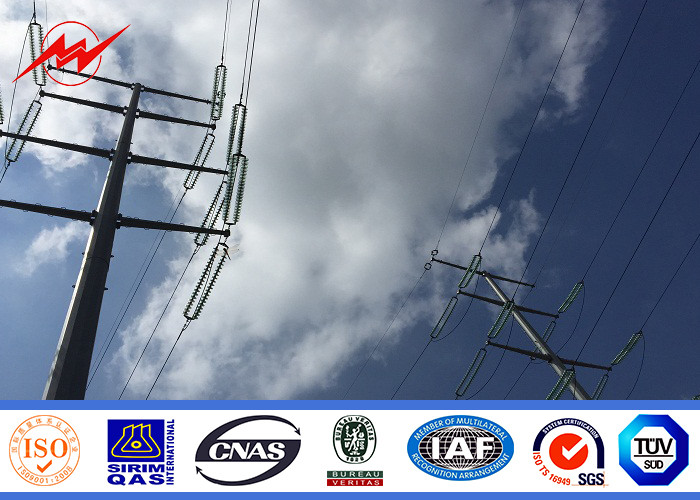

12M 600daN Steel Utility Pole Gr65 Material for 55KV Power Distribution 1



 Technical information-Cross Arm

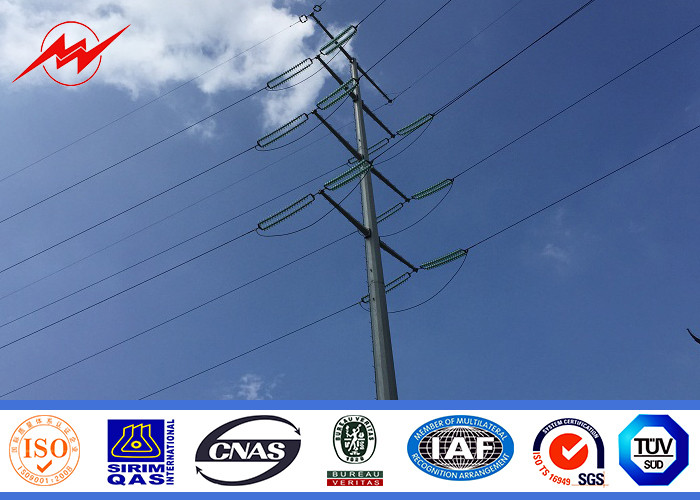

 12M 600daN Steel Utility Pole Gr65 Material for 55KV Power Distribution 2



 The above listed is the most frequently used design,and is made from angel steel.And the cross arm will  be fixed to the pole shaft connecting by bolts through the pre-drilling holes on both the cross arms and  the pole shaft.If you have any other requirements on the design,material and connecting method for  cross arm,pls contact us.
