12m Galvanized 2.5mm square Light Poles Powder Coating with Cross Arms

Certification
China Jiangsu milky way steel poles co.,ltd certification
China Jiangsu milky way steel poles co.,ltd certification
Dear Sirs, Hereby we confirm that JiangSu MilkyWay steel poles co., ltd is our partner for several years. Since that time this company has shown itself as reliable supplier of qualitative products.We also would like to note that they provide top level service and all kinds of support.We plan to continue our fruitful cooperation co-operation for many years more.

—— Abacus

We do hereby certify the 69 KV transmmision line steel pole(from 25ft to 90 ft ) manufacuterd by Jiangsu Milky Way Steel Poles Co., Ltd since 2010.We are satisfied with their quality,service and the ways and attention they showed toward our order.

—— National Electricity Company

I'm Online Chat Now

12m Galvanized 2.5mm square Light Poles Powder Coating with Cross Arms

China 12m Galvanized 2.5mm square Light Poles Powder Coating with Cross Arms supplier
12m Galvanized 2.5mm square Light Poles Powder Coating with Cross Arms supplier 12m Galvanized 2.5mm square Light Poles Powder Coating with Cross Arms supplier 12m Galvanized 2.5mm square Light Poles Powder Coating with Cross Arms supplier 12m Galvanized 2.5mm square Light Poles Powder Coating with Cross Arms supplier

Large Image :  12m Galvanized 2.5mm square Light Poles Powder Coating with Cross Arms

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/
Model Number: Galvanized Steel Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Detailed Product Description
Product Name: Galvanized Steel Pole Power Supply: Solar/AC
Welding Standard: AWS D 1.1 Material: Q345
Anchor Bolts: Customization Available Dimenstion Torlance: +- 2%
Finish: Black Steel
High Light:

street lamp pole

,

galvanized street light pole

 12M Single Arm Street Light Poles Q235 Material for Park Lighting





 Specifications:



Type

Street Lamp pole, lamp post . Lamp column

Shape

Conoid ,Multi-pyramidal,Columniform,polygonal or conical

Material

Usually   Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,

SS400, SS490ST52

Torlance of dimenstion

-0.02

Design Load in Kg

300~ 1000 Kg appliced to 50cm from the to pole

Surface treatment

Hot dip galvanized Following ASTM A 123, color polyester power

or any other standard by client required.

Standard

Octagonal tapered column
Certified by SIRIM QAS INTERNATIONAL.
Approved by JABATAN KERJA RAYA MALAYSIA.
Conforms to Standard:
Pole design : BS EN 40
Material : BS EN 10025 S275 / JIS G3101 SS400
Welding : BS 5135
Galvanizing : BS 729 / ISO 1461 ASTM A 123

Length of per section

Within 14m once forming without slip joint.

Suit for

Highway
Roadway
Residential subdivisions
Commercial development

Option

Height from 6m to 12m
Flange mounted or planted type
Variable arm length from 0.125m to 3.0m with single or double arm type
Variable spigot size from 35mm to 60mm.

Production Process

Raw material test → Cutting →Molding or bending →

Welidng (longitudinal )→Dimension verify →Flange welding

→Hole drilling →Calibration →Deburr→Galvanization or powder coating ,painting

→Recalibration →Thread→Packages





12m Galvanized 2.5mm square Light Poles Powder Coating with Cross Arms 0

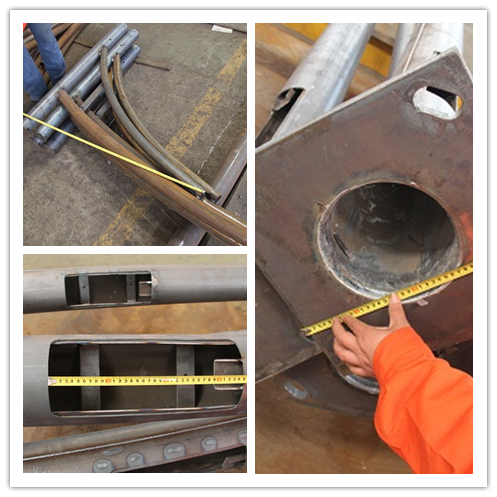

 The information to inquiry or purchase
 -Steel pole height
 -Dimension of the flange
 -Position and dimension of the service door
 -Cross arm type and length,the position to install in the steel pole
 -The method to fix the cross arm(use bolt to connect or use one or two template to weld in the steel pole  to install the cross arm)
 -Wind speed
 -Destination port
 -Other.

 12m Galvanized 2.5mm square Light Poles Powder Coating with Cross Arms 1

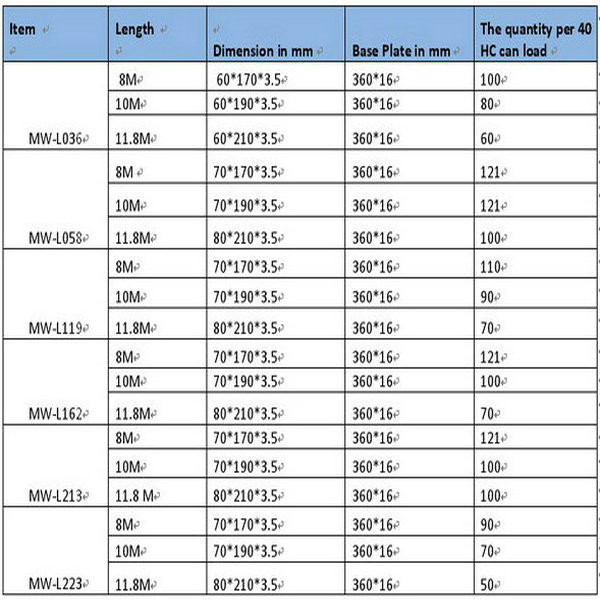

 Package:

 Our poles as normal cover by Mat or straw bale at the top and bottom ,
 anyway also can following by client required , each 40HC or OT can
 loading how many pcs will calculation base on the client actually
 specification and data.

 12m Galvanized 2.5mm square Light Poles Powder Coating with Cross Arms 2
