132KV 15m Transmission Electrical Steel Power Pole Hot Dip Glavanized For Aferica

China 132KV 15m Transmission Electrical Steel Power Pole Hot Dip Glavanized For Aferica supplier
132KV 15m Transmission Electrical Steel Power Pole Hot Dip Glavanized For Aferica supplier 132KV 15m Transmission Electrical Steel Power Pole Hot Dip Glavanized For Aferica supplier 132KV 15m Transmission Electrical Steel Power Pole Hot Dip Glavanized For Aferica supplier 132KV 15m Transmission Electrical Steel Power Pole Hot Dip Glavanized For Aferica supplier 132KV 15m Transmission Electrical Steel Power Pole Hot Dip Glavanized For Aferica supplier 132KV 15m Transmission Electrical Steel Power Pole Hot Dip Glavanized For Aferica supplier

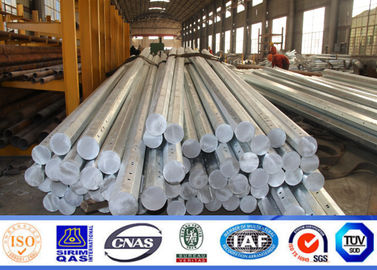

Large Image :  132KV 15m Transmission Electrical Steel Power Pole Hot Dip Glavanized For Aferica

Product Details:

Place of Origin: China
Brand Name: Milky Way
Certification: ISO9001
Model Number: 132KV 15m transmission electrical steel power pole

Payment & Shipping Terms:

Minimum Order Quantity: one 40HQ
Price: negotiation
Packaging Details: as per customer request
Delivery Time: usually 2 weeks after confirming
Payment Terms: L/C, T/T
Supply Ability: 300 pieces pole per day
Detailed Product Description
Name: 132KV 15m Transmission Electrical Steel Power Pole Hot Dip Glavanized For The Aferica Type: 132KV 15m Transmission Electrical Steel Power Pole
Material: ASTM 572 Grade 50 With Yieled Strength No Less Than 345mpa Shape: Octagonal
Height: 8-45m Galvanization Standard: Hot Dip Glavanized Inaccordance With ASTM A123 With Thickness ≥ 86μm
Thickness: 3mm Welding Standard: AWS D1.1 With Penatration Rate No Less Than 80%-100%
Joint Of Poles: 50 Years Warranty Period: Overlap / Flange/ Direct Burial
High Light:

electric utility poles

,

steel utility poles



132KV 15m transmission electrical steel power pole hot dip glavanized for the Aferica



Specification
132KV 15m transmission electrical steel power pole
Type
132KV 15m transmission electrical steel power pole
Shape
Octagonal
Material
ASTM 572 grade 50 with yield strength not less than 345mpa
Torlance of dimenstion
-0.02
Design Load in Kg
300~ 1000 Kg appliced to 50cm from the to pole
Surface treatment
Hot dip glavanized inaccordance with ASTM A123 with thickness ≥ 86μm
Standard
Octagonal Conical tapered column
Certified by SIRIM QAS INTERNATIONAL.
Approved by JABATAN KERJA RAYA MALAYSIA.
Conforms to Standard:
Pole design : BS EN 40
Material : BS EN 10025 S275 / JIS G3101 SS400
Welding : BS 5135
Galvanizing : BS 729 / ISO 1461 ASTM A 123
Length of per section
Within 11.8m once forming without slip joint.
Option of steel power pole
Height from 8m to 35m
Flange mounted or planted type
Production Process of high mast pole
Raw material test → Cutting →Molding or bending
→Welidng (longitudinal )→Dimension verify →Flange welding
→Hole drilling →Calibration →Deburr→Galvanization or powder
coating ,painting →Recalibration→Thread →Packages


The products made by us is high resisitivity against heat ,humidity ,moisture,water etc. Owning to use the rare earth special craft during the productionprocess, to ensure its high precise, good quality and competitive advantage.Meanwhile, we can accept the product type damage test to ensure the highsafe factor of our products. Because of good quality and competitive pricecaused by innovation and management reform, experienced service infabrication ,design, installment, consultancy, we have built long-term relationship with many countries, such as America ,Morocco,Sir Lanka ,Russia, Jordan,Guyana,Nigeria, Australia, Spain, Indonesia, Singapore, the Philippines, Kenya,Areb etc.

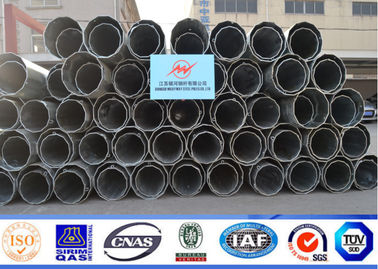

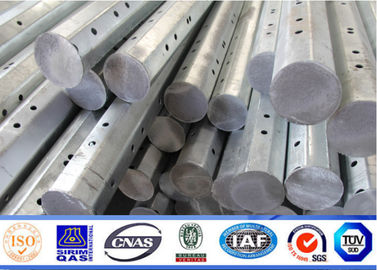

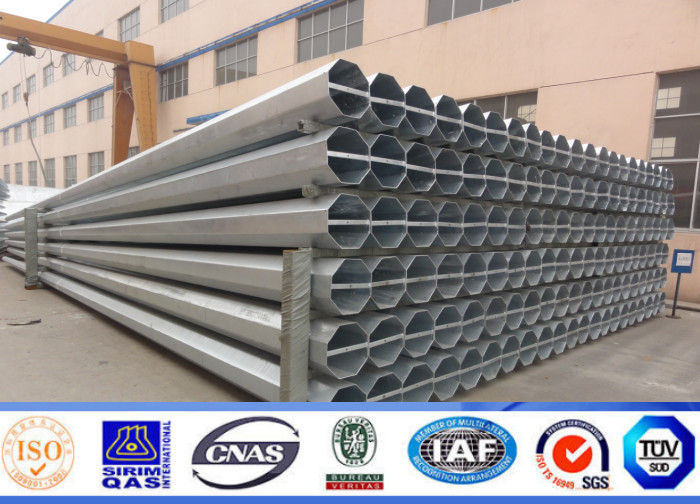

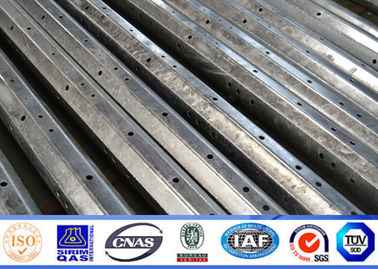

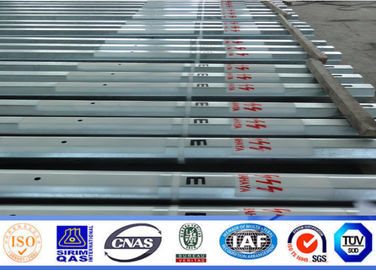

Products Picture



132KV 15m Transmission Electrical Steel Power Pole Hot Dip Glavanized For Aferica 0

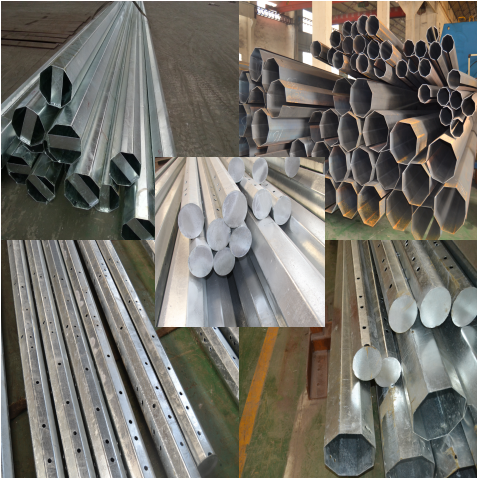

Material

ASTM 572 grade 50 with yield strength not less than 345mpa

132KV 15m Transmission Electrical Steel Power Pole Hot Dip Glavanized For Aferica 1 132KV 15m Transmission Electrical Steel Power Pole Hot Dip Glavanized For Aferica 2

132KV 15m Transmission Electrical Steel Power Pole Hot Dip Glavanized For Aferica 3

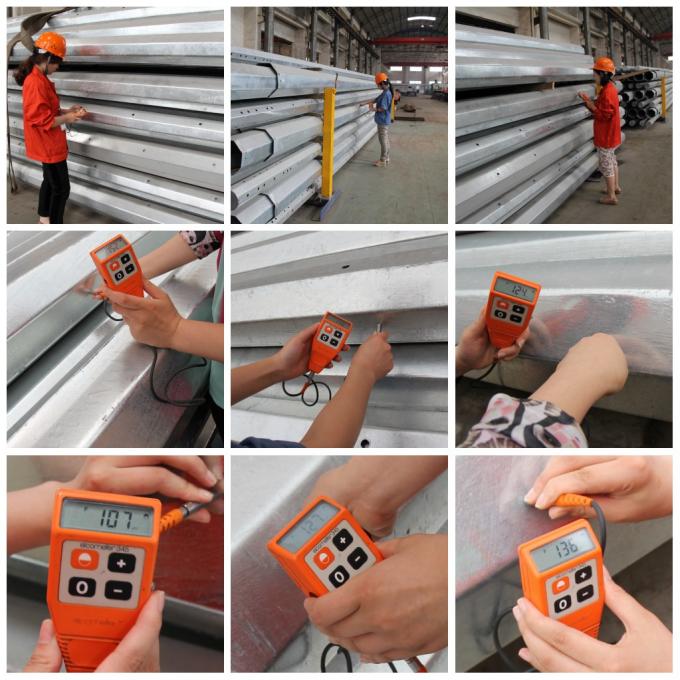

3.Glavanization

---Average thickness of the galvanization : not less than 86 μm



 132KV 15m Transmission Electrical Steel Power Pole Hot Dip Glavanized For Aferica 4

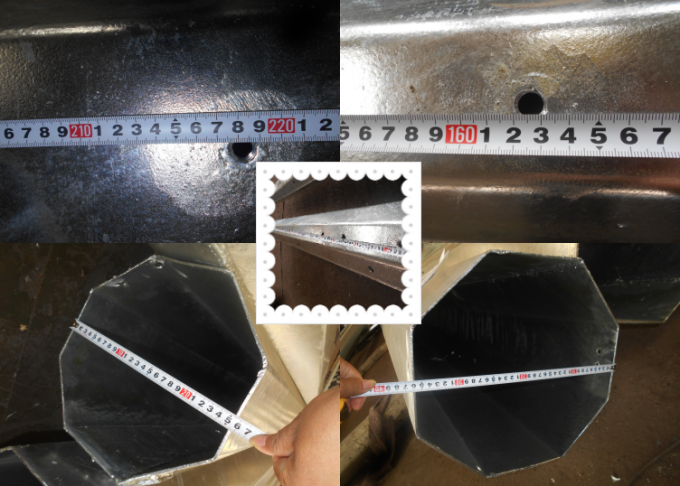

4. Manufacture Tolerance

---Componet Length:-25mm to 75mm

---Stranghtness: 2mm/m

---Twisting degree: 1° per 3 meters length

---Ovalisation: Maximum is 3%

---The average diameter : +/-0.5%

---Slip length: +/-150mm

 132KV 15m Transmission Electrical Steel Power Pole Hot Dip Glavanized For Aferica 5





5.Standaed Accessory

---Top plate

---Base plate

---Bottom strip

---Climbing rung

---Anchor bolt

---Bitumen marking

---Removable ladder

132KV 15m Transmission Electrical Steel Power Pole Hot Dip Glavanized For Aferica 6

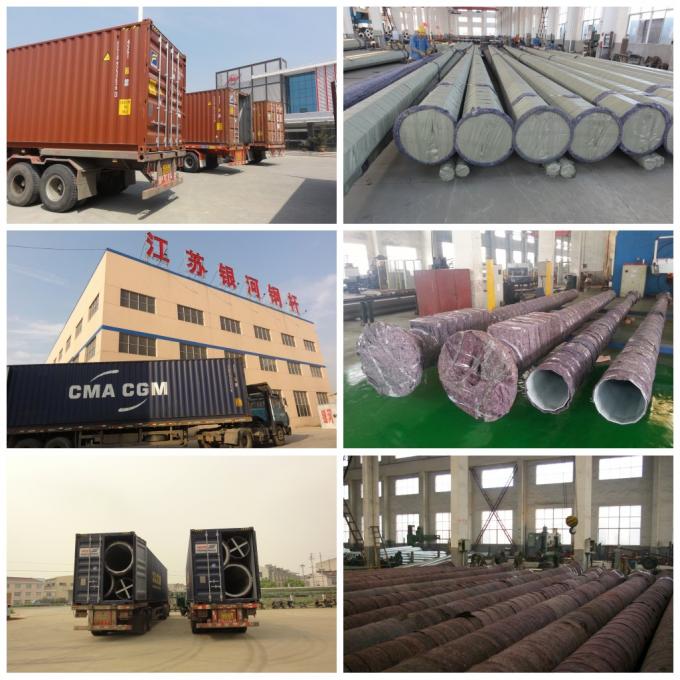

6. The information to inquiry or purchase

---Steel pole height and force

---Cross arm type and length, the position to install in the steel pole

---The method to fix the cross arm (use Bolt to connect or use one or two template to weld in

the steel pole to install the cross arm)

---Safety factor of the steel pole.

---wind speed

---Type of climbing rung

---Destination port







Application

Plaza High Mast Lighting pole

Airport High Mast Lighting pole

Highway High Mast Lighting pole

Storage-yard High Mast Lighting pole

Industrial-plant High Mast Lighting pole

Park High Mast Lighting tower

Dock High Mast Lighting tower

Stadiums High Mast Lighting tower

Overpass High Mast Lighting tower

Toll-station High Mast Lighting tower

132KV 15m Transmission Electrical Steel Power Pole Hot Dip Glavanized For Aferica 7



Company instruction:

JiangSu Milky Way Steel Poles Co., Ltd.was established in 1988, is located in Yixing City, Jiangsu Province, Wan Shi Town, covering an area of 35,000 square meters, annual output value reached 200 million . We have 20 years experience in design and production. Our main products are power pole, communication towers, street lighting poles, steel bracket and so on. The company has strong technical force, advanced production equipment, perfect quality management system, product quality has reached international advanced level.



132KV 15m Transmission Electrical Steel Power Pole Hot Dip Glavanized For Aferica 8
