14.5m Overall Height Tapered Steel Utility Pole With 3mm Thickness 1250kg Load

China 14.5m Overall Height Tapered Steel Utility Pole With 3mm Thickness 1250kg Load supplier
14.5m Overall Height Tapered Steel Utility Pole With 3mm Thickness 1250kg Load supplier 14.5m Overall Height Tapered Steel Utility Pole With 3mm Thickness 1250kg Load supplier 14.5m Overall Height Tapered Steel Utility Pole With 3mm Thickness 1250kg Load supplier 14.5m Overall Height Tapered Steel Utility Pole With 3mm Thickness 1250kg Load supplier

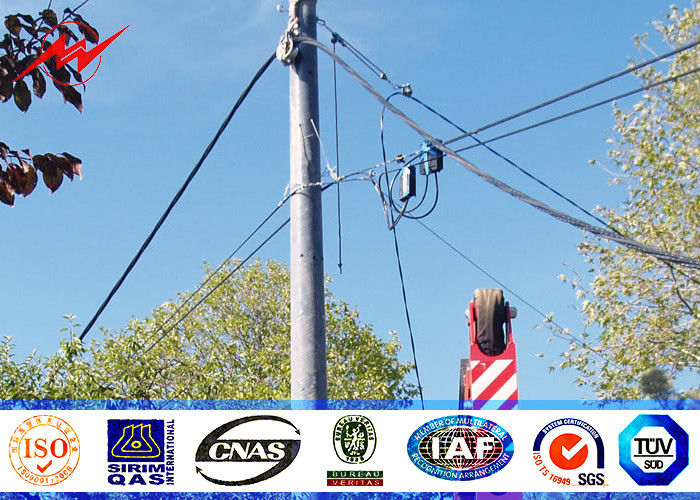

Large Image :  14.5m Overall Height Tapered Steel Utility Pole With 3mm Thickness 1250kg Load

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/SGS
Model Number: Steel Utility Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
Detailed Product Description
Height: 14.5m Pole Shape: Tapered
Thickness: 3mm Or More Welding Standard: AWS D 1.1
Surface Treatment: Galvanization Dimenstion Torlance: +- 2%
High Light:

electrical power poles

,

electrical transmission poles

14.5m overall height tapered Steel Utility Pole with 3mm thickness 1250kg load



Specifications:



Product Code Length ULS Pole Dimension
Top Base
11M 13.5KN 11M 13.5kN 160 328
12.5M 12KN 12.5M 12KN 160 340
12.5M 16KN 12.5M 16KN 180 380
12.5M 24KN 12.5M 24KN 200 420
14M 16KN 14M 16KN 190 402
14M 24KN 14M 24KN 210 465

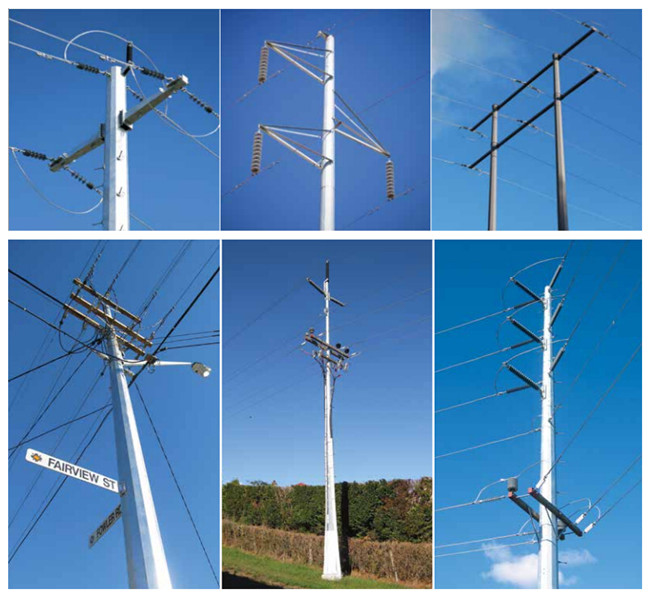

Pole Design



14.5m Overall Height Tapered Steel Utility Pole With 3mm Thickness 1250kg Load 0


Standard Accessory
-Top plate
-Base plate
-Bottom strip
-Standard hole
-Climbing rung
-Anchor bolt
-Bitumen protection
-Painted marking
-Removable ladder

Available Foundation Types
Direct Embedment
Anchor Bolt/Base Plate
Vibratory Steel Caisson

Available Finishes
Galvanized per ASTM A123
Paint over galvanized,paint over black steel
Powder Coating

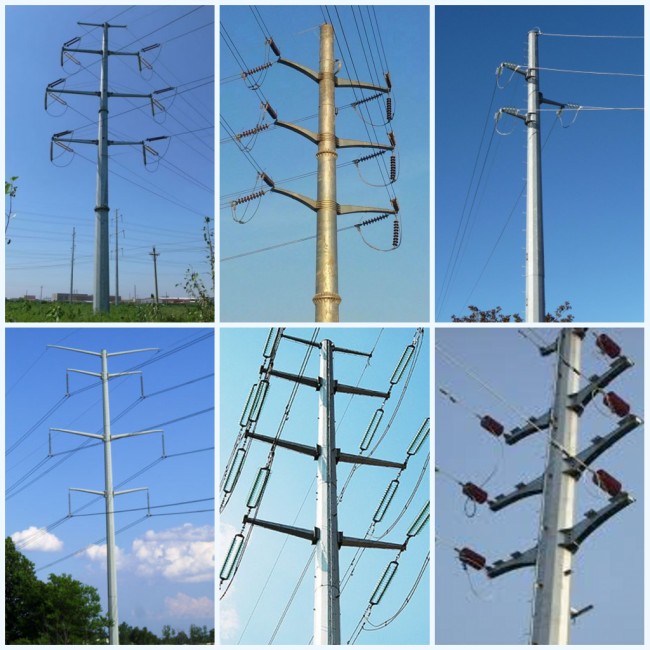

Pictures

14.5m Overall Height Tapered Steel Utility Pole With 3mm Thickness 1250kg Load 1




Standard Features

In-Ground Mounted:
12-sided pole shaft
Welded top cap
Mounting holes (to your specification if required)
Identification plate
M12 earth point 250mm above the nominal ground line
M24 nut 250mm above the nominal ground line (to assist lifting)
Additional in-ground corrosion protection 200mm above to 400mm below the nominal ground line
Anti-sink straps
Hot dip galvanised finish

Base Plate Mounted:
12-sided pole shaft (40kN to 80kN)
16-sided pole shaft (100kN & 120kN)
Welded top cap
Mounting holes (to your specification if required)
Identification plate
M12 earth point 250mm above the pole base
Two lifting gussets on the base plate
Anchor bolts, templates, nuts & washers
Hot dip galvanised finish

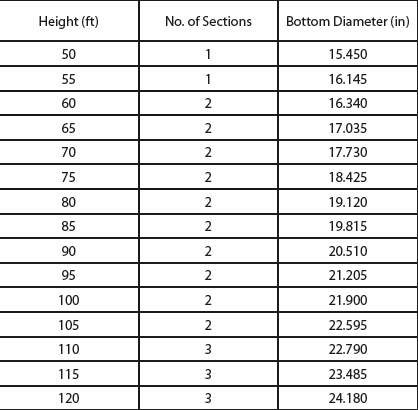

Product Dimension



14.5m Overall Height Tapered Steel Utility Pole With 3mm Thickness 1250kg Load 2





Utility poles often support wires and other components for many utilities such as electric power,

telecommunications, cable television, and fiber optic. Transmission lines typically carry the electric power from the source to substations where distribution lines branch off to supply the surrounding businesses and homes with power. Figure 1 shows a typical transmission structure. In some cases there is difficulty in making a distinction between utility transmission lines and utility distribution lines. Distribution lines can best be distinguished from transmission lines by their smaller rights-of-way. In addition to having taller poles and structures, a transmission line is accompanied by rights-of-way ranging from 75-200 feet and voltages around or above 69 kV.



Company Introduction:

Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .

Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.

We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.

We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the high mast pole for Sochi Winter Olympic Game and so on.
