14 M 1250 Dan 16 Sides Conical Steel Power Pole For Distribution Line

China 14 M 1250 Dan 16 Sides Conical Steel Power Pole For Distribution Line supplier
14 M 1250 Dan 16 Sides Conical Steel Power Pole For Distribution Line supplier 14 M 1250 Dan 16 Sides Conical Steel Power Pole For Distribution Line supplier 14 M 1250 Dan 16 Sides Conical Steel Power Pole For Distribution Line supplier 14 M 1250 Dan 16 Sides Conical Steel Power Pole For Distribution Line supplier 14 M 1250 Dan 16 Sides Conical Steel Power Pole For Distribution Line supplier

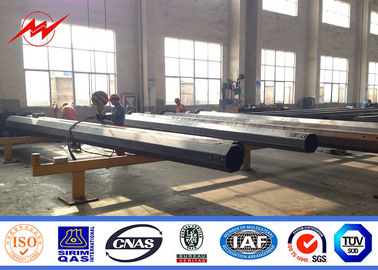

Large Image :  14 M 1250 Dan 16 Sides Conical Steel Power Pole For Distribution Line

Product Details:

Place of Origin: China
Brand Name: Milky Way
Certification: ISO/SGS/BV
Model Number: Conical Steel Power Pole For Distribution Line Electric Utility Poles

Payment & Shipping Terms:

Minimum Order Quantity: one 40HQ
Price: negotiation
Packaging Details: as per customer request
Delivery Time: usually 2 weeks after confirming
Payment Terms: T/T
Supply Ability: 300 pieces pole per day
Contact Now
Detailed Product Description
Shape: Conoid ,multi-pyramidal,columniform,polygonal Or Conical Type: Straight Pole, Tensile Pole, Turn Pole
Power: 10kv~550kv Tolance Of Dimenstion: +-2%
Surface Treatment: Hot Dip Galvanization Design Of Pole: Against Earthquake Of 8 Grade



14m 1250dan 16 sides Conical Steel Power Pole For Distribution Line , Galvanization Electric Utility Poles



Specifications



Type

Straight Pole ,Tensile Pole ,Turn Pole

Suit for

Electricity distribution

Shape

Conoid ,Multi-pyramidal,Columniform,polygonal or conical


Material

Usually   Q345B/A572,minimum yield strength>=345n/mm2
               Q235B/A36,minimum yield strength>=235n/mm2

As well as Hot rolled coil from Q460 ,

ASTM573 GR65, GR50 ,SS400,
SS490, to ST52-

Torlance of dimenstion

+- 2%

Power

10  KV ~550 KV

Safety Factor

Safety factor for conducting wine : 8
Safety factor for grounding wine : 8

Design Load in Kg

300~ 1000 Kg appliced to 50cm from the to pole

Marks

Nane palte through rivert or glue ,engrave ,

emboss as per customer

requirement

Surface treatment

Hot dip galvanized Following ASTM A 123,

color polyester power
or any other standard by client required.

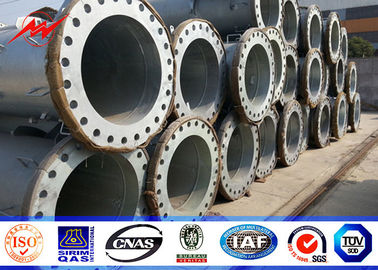

Joint of Poles

Insert mode,innerflange mode,face to face joint mode .


Design of pole

Against earthquake of 8 grade

Wind Speed

160 Km/Hour .  30 m /s

Minimum yield strength

355 mpa

Minimum ultimate tensile strength

490 mpa

Max ultimate tensile strength

620 mpa

Standard

ISO 9001

Length of per section

Within 14m once forming without slip joint

Welding

We  has past flaw testing.Internal and

external double welding
makes the welding beautiful in shape

Welding Standard :AWS ( American Welding Society ) D 1.1


Thickness

1 mm to 30 mm

Production Process

Rew material test → Cuttingj →Molding or bending →

Welidng (longitudinal )
→Dimension verify →Flange welding →Hole drilling →

Calibration → Deburr
→Galvanization or powder coating ,painting →Recalibration →

Thread
→Packages

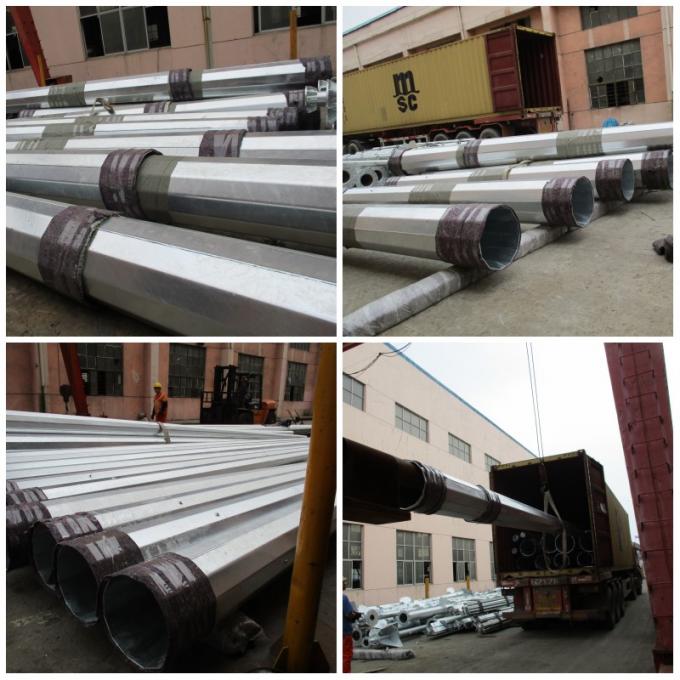

Packages

Our poles as normal cover by Mat or straw bale at the

 top and bottom ,
anyway also can following by client required , each 40HC

 or OT can loading
how many pcs will calculation base on the client actually

 specification

and data.



14 M 1250 Dan 16 Sides Conical Steel Power Pole For Distribution Line

Our Service


1. Factory direct sale.
2. Industry and trade integration business.
3. 15 years experience.
4. Customized designs.
5. ODM, OEM acceptable.
6. Flexible payment.
7. Fast, accurate quotes.
8. Our good service.
9. Technical support by e-mail.
10. Calling service.
11. Provide maintenance instruction video.





WE ARE MANUFACTURER SINCE 1992



Experience: Our company was set up in 1992, having over 24 years of production experience in galvanized garden light poles.

Production Capacity: We manufacture galvanized garden light poles from 3M-35M at the capacity of 20,000 poles per month.

Production lines: For galvanized garden light poles we carry on vertical production to get good control of quality and cost

We have plate cutting line--plate bending line-- auto. welding line--polishing line--spray painting line--packaging line



14 M 1250 Dan 16 Sides Conical Steel Power Pole For Distribution Line



ADVANTAGES



OEM&ODM service available

Great anti-corrosion performance

Long life time: 25 years long life span

BAOSTEEL Q235 steel, high strength and great resilience

Dual protection treatments: hot galvanized first and then powder paint

Multiple painting colors available: Default color Gray. Custom available

Dismountable arms and foundation kit: Only a screwdriver, requiring no welding



14 M 1250 Dan 16 Sides Conical Steel Power Pole For Distribution Line
