14m 2500 Dan 2 Segements Direct Burial Electric Steel Pole Galvanized Pole Monopole

Certification
Good quality Electrical Power Pole for sales
Good quality Electrical Power Pole for sales
Dear Sirs, Hereby we confirm that JiangSu MilkyWay steel poles co., ltd is our partner for several years. Since that time this company has shown itself as reliable supplier of qualitative products.We also would like to note that they provide top level service and all kinds of support.We plan to continue our fruitful cooperation co-operation for many years more.

—— Abacus

We do hereby certify the 69 KV transmmision line steel pole(from 25ft to 90 ft ) manufacuterd by Jiangsu Milky Way Steel Poles Co., Ltd since 2010.We are satisfied with their quality,service and the ways and attention they showed toward our order.

—— National Electricity Company

I'm Online Chat Now

14m 2500 Dan 2 Segements Direct Burial Electric Steel Pole Galvanized Pole Monopole

China 14m 2500 Dan 2 Segements Direct Burial Electric Steel Pole Galvanized Pole Monopole supplier
14m 2500 Dan 2 Segements Direct Burial Electric Steel Pole Galvanized Pole Monopole supplier 14m 2500 Dan 2 Segements Direct Burial Electric Steel Pole Galvanized Pole Monopole supplier 14m 2500 Dan 2 Segements Direct Burial Electric Steel Pole Galvanized Pole Monopole supplier 14m 2500 Dan 2 Segements Direct Burial Electric Steel Pole Galvanized Pole Monopole supplier

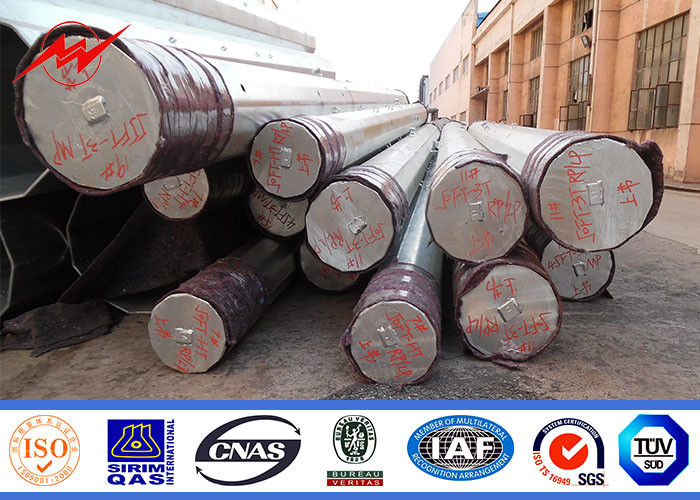

Large Image :  14m 2500 Dan 2 Segements Direct Burial Electric Steel Pole Galvanized Pole Monopole

Product Details:

Place of Origin: Jiangsu
Brand Name: milkyway
Certification: ISO9001:2015
Model Number: 14m 2500dan 2 segements

Payment & Shipping Terms:

Minimum Order Quantity: one container
Price: USD 130-180/pieces
Packaging Details: Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pics will calculation base on the client actually specification and data.
Delivery Time: always 2 weeks
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 pieces per month
Contact Now
Detailed Product Description
Name: 14m 2500dan 2 Segements Direct Burial Electric Steel Pole , Galvanized Pole Monopole Design: 14m 2500dan
Height: 14m Thickenss: 6mm 8mm
Design Load: 2500dan Port: Always Shanghai
Galvanization Standard: ASTM A123 Average Coating Thickness 86microns Welding: AWS D1.1 Penetration :100%
Safety Factor: Not Less Than 1.0

90FT 2 Segements Direct Burial Electric Steel Pole , Galvanized Pole Monopole

Description

1) Steel materials conform to ASTM A36 with Q235(S235,SS400),Q345(S355JR), Q460,etc
2) Welding: Welding complies with CSA and AWS, AWS D1.1 standard.The welders have got corresponding certificate after testing and inspection.
3) Finish: Hot-dip galvanized in accordance with ASTM A123.
4) Pole Height: All available
5) Pole shape: Conical, Round, Polygonal---Octagonal, Dodecagonal, Hexadecagonal, etc
6) Type: Straight Pole ,Tensile Pole ,Turn Pole (Double-loop corner pole, Single or double loops/circuit pole, single or double tensile/terminal/straight pole, etc)
7) Surface hot-dip-galvanized & painting
8) Resistant: against earthquake of 8.8 grade. Wind speed as design.
9) Quality Standard: ISO9001:2000,AAA credit rating
10) Easy install and maintenance

11) Packages: Normally covered by sack or as customer’s requirement.

12) Voltage:10-550KV

14m 2500 Dan 2 Segements Direct Burial Electric Steel Pole Galvanized Pole Monopole

Material: high quality Q345 hot rolled steel
Mounting Height: 3-30m or according to the requirements of customers
Shape of pole: Round,conical,octagonal,square,mid hinged,polygonal shafts are made of steel sheet that folded into required shape and welded longitudinally by automaticarc welding machine
Brackets: Single or double brackets are in the shape and dimension as per customers requirement
Base plate: Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement
Groung mounted: The length buried underground as per customers requirement
Galvanizing: Hot dip galvanization with thickness of 80-100µm average
Powder coating: Pure polyester powder painting, color is optional

Advantage

OEM&ODM service available

Great anti-corrosion performance

Long life time: 25 years long life span

BAOSTEEL Q235 steel, high strength and great resilience

Dual protection treatments: hot galvanized first and then powder paint

Multiple painting colors available: Default color Gray. Custom available

Dismountable arms and foundation kit: Only a screwdriver, requiring no welding

14m 2500 Dan 2 Segements Direct Burial Electric Steel Pole Galvanized Pole Monopole

FAQ



Q1. How can I get a price of needed pole?

A: 1. Please give the exactly dimensions such as height, thickness, material, top and bottom dia. We can according to your specification give you a similar price.

2. You can send us a drawing; we can according to your drawing give you one price.

Q2. I am a small wholesaler, do you accept small order?
A: It's no problem if you are a small wholesaler; we would like to grow up with you together.
Q3. I am a designer; Can you help me to produce the sample which we designed?
A: Our mission is to help customers to be successful. So it's welcome if we can help you solve problem and make your design come true.
Q4. We want be your agent of our area. How to apply for this?
A: Please send your idea and your profile to delia @yin-he.com
Q5. Tell me about your company?

A:Jiangsu Milky Way Steel Poles Co.,Ltd , we have been a manufacturer and exporter of all kinds of steel poles, including street lighting pole,

power transmission pole, floodlighting pole for large squares and other steel products since 1991.Our poles have been exported to more than 70 countries and areas.

Q6. Do you have some special policies for Brand company?

A:Yes, we have some special support for the company who has own brand but also in our VIP customers list. Please send us your selling

data of last year. So we can see how to support you for your products in your market.

Q7. Can you make Door to Door service? Because i don't know how to do customs clearance.

A:Yes. We can make Door to Door service to help you save much time of shipping. Also we have big discount with shipping company because

we have do much of this every day. So it will save your time also money.



Our steel pole, steel poles , steel power poles ,power steel poles, electrical poles, electrical power poles, power poles, power distribution equipment poles , electric power transimission &distribution steel poles ,hot-dip-galvanized steel poles ,lamp poles ,road poles, streeting lighting poles, street lamp poles ,solar street lamps steel poles ,high mast lamp poles,road lamp poles, the steel street lamp poles, hot-dip-galvanized steel lighting ,outdoor lighting ,outdoor lamps ,street lighting poles ,steel post ,street poles, lamp parts ,lighting fixture ,lighting poles ,lighting equipment ,lighting decoration ,lighting product , street lighting body, high mast lighting steel poles &tower,electric poles, round&square street lighting steel poles with double arm or single arm . Stainless steel poles, Flag mast stainless steel pole, aluminum street light poles, traffic lighting steel poles, telecom tower poles , baseplate , bearing plate, base flanges , are made by hot-roll steel coil ,the process as cut plate, bending ,forming,automatic welding,drill holes ,quality check before galvanized, hot dip galvanized or powder coating , final quality check according by client required.
