15M Galvanized Utility Power Poles With Suspension Double Arm Accessories

China 15M Galvanized Utility Power Poles With Suspension Double Arm Accessories supplier
15M Galvanized Utility Power Poles With Suspension Double Arm Accessories supplier 15M Galvanized Utility Power Poles With Suspension Double Arm Accessories supplier 15M Galvanized Utility Power Poles With Suspension Double Arm Accessories supplier 15M Galvanized Utility Power Poles With Suspension Double Arm Accessories supplier

Large Image :  15M Galvanized Utility Power Poles With Suspension Double Arm Accessories

Product Details:

Place of Origin: China
Brand Name: Milky Way
Certification: ISO, BV,
Model Number: 15M Galvanized Utility Power Poles With Suspension Double Arm Accessories

Payment & Shipping Terms:

Minimum Order Quantity: one 40 HQ
Price: negotiation
Packaging Details: as per customer request
Delivery Time: usually 2 weeks after confirming
Payment Terms: T/T
Supply Ability: 300 pieces pole per day
Detailed Product Description
Style: Galvanization Surface Treatment: Hot Dip Galvanized
Thickness: 1mm To 30mm Design Of Pole: Against Earthquake Of 8 Grade
Torelance Of Dimenstion: +- 2% Material: All Of Our Material Are Purchased From Famous Mill Factory To Assure The Quality
Shape: Round Conical; Octagonal Conical; Straight Square; Polygonal; Tapered Round
High Light:

electrical power poles

,

high voltage pole


15M Galvanized Utility Power Poles With Suspension Double Arm Accessories

Specification

TYPE

Street lighting pole; Lamp pole, Lamp column, different kinds of pole/OEM

MATERIAL

Q235 steel material, Q345B/A572, >=345n/mm2;
Q235B/A36,minimumyield strength>=235n/mm2;
Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490ST52

SHAPE

Column, Hexagon, Octangle, conical or OEM



Dimension

FINISH

Hot dip galvanized and power coated painting finish surface treatment,
Anti-rust, waterproof

HEIGHT

3m 4m 5m 6m 7m 8m 9m 10m 11m 12m

THICKNESS

2mm 2.75mm 3mm 3.5mm OR OEM

BRACKET

1.2m 1.3m 1.5m; bracket dia: 48mm 50mm 60mm

ARMS

Single arm/ double arms

PROCEED

Raw material test → Cutting →Molding or bending →Welding (longitudinal )→
Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→
Galvanization or powder coating ,painting →Recalibration →Thread →Packages

WEIGHT

Need the detail data of the light pole

CBM

Need the detail data of the light pole

MOQ

1*40'HQ

DELIVEY

It depends on the quantities/orders

Anticorrosion methods

Hot dip galvanized steel or hot dip galvanized with Plastic Powder Coating.

Powder coating

Pure polyester powder painting, color is optional


15M Galvanized Utility Power Poles With Suspension Double Arm Accessories 0


All of our material are purchased from famous mill factory to assure the quality
A mill certificate issued by the mill factory with stamp and signature must be provided before unload the material in our factory; otherwise we have our reason to refuse the material.
Before put into production, all the material must pass the chemical and physical analysis to make sure that they have met the requested strength and component.



15M Galvanized Utility Power Poles With Suspension Double Arm Accessories 1

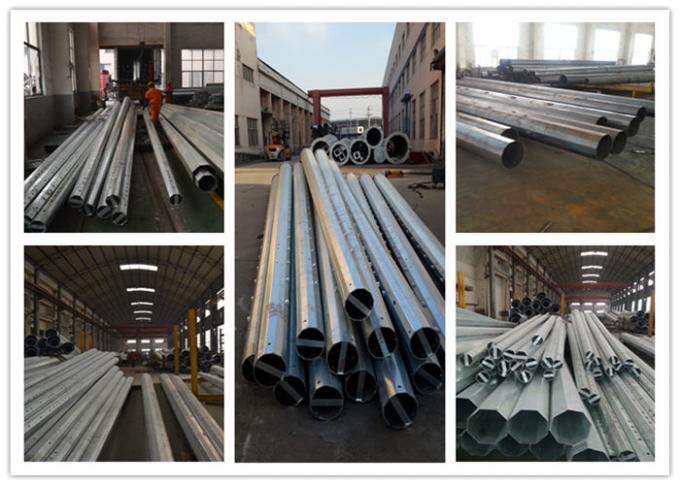

Factory:

Estbilsed in 1991,Jiangsu Milky Way Steel Poles is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on
We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV transmission poels ,our products have been deliveried to more than 70 contries and areas ,including America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia and so on.

15M Galvanized Utility Power Poles With Suspension Double Arm Accessories 2
