15M Octagonal Electric Insulators Distribution Poles For 132KV Electrical Power

China 15M Octagonal Electric Insulators Distribution Poles For 132KV Electrical Power supplier
15M Octagonal Electric Insulators Distribution Poles For 132KV Electrical Power supplier 15M Octagonal Electric Insulators Distribution Poles For 132KV Electrical Power supplier 15M Octagonal Electric Insulators Distribution Poles For 132KV Electrical Power supplier 15M Octagonal Electric Insulators Distribution Poles For 132KV Electrical Power supplier

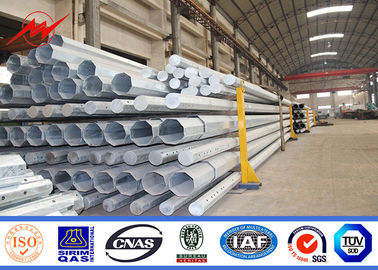

Large Image :  15M Octagonal Electric Insulators Distribution Poles For 132KV Electrical Power

Product Details:

Place of Origin: Yixing,Jiangsu,China
Brand Name: Milky Way
Certification: ISO,BV
Model Number: Electric Power Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 Poles
Price: Negotation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 300pcs per day
Contact Now
Detailed Product Description
Transmisson Line: 132kv Accessories: Climb,earth Rod,insulators
Minimum Yield Strength: 345 Mpa Standard: AWS D1.1 Welding
Appearance: Tubular,triangular,angular,lattice Wind Speed: 35m/s
Usage: Sub Stational Distribution Line

15M Octagonal Shape Electric Power Pole for 132KV Electrical Power Distribution with electric insulators



Some of the advantages of steel poles over wood poles are as follows:


Lighter - steel poles are significantly lighter than wood poles
More consistent - steel poles do not vary in dimension
Longer service life – steel poles are not vulnerable to insects, woodpeckers or other wildlife
Cost competitive – steel poles are becoming much more affordable as an alternative to wood
Recyclable – steel poles are recyclable after their service life
Different appearances - steel poles are available painted, with a traditional galvanized finish, or in weathering steel
With the advantages of steel, utility companies continue to rely on steel distribution poles in place of wood.





Technical Data Sheet



Distribution Range
Product Code Length ULS Pole Dimension
Top Base
11M 13.5KN 11M 13.5kN 160 328
12.5M 12KN 12.5M 12KN 160 340
12.5M 16KN 12.5M 16KN 180 380
12.5M 24KN 12.5M 24KN 200 420
14M 16KN 14M 16KN 190 402
14M 24KN 14M 24KN 210 465
15.5M 12KN 15.5M 12KN 160 405
15.5M 24KN 15.5M 24KN 210 500
Note:Tapered 12-sided, direct buried
Pole deflection less than 5% of pole height at 50% ULS



More Products



15M Octagonal Electric Insulators Distribution Poles For 132KV Electrical Power



The information to inquiry or purchase



-Steel pole height and force

-Cross arm type and length,the position to install in the steel pole

-The method to fix the cross arm(use bolt to connect or use one or two template to weld in the steel pole to install the cross arm)

-Safety factor of the steel pole

-Wind speed

-Type of climbing rung

-Destination port

-Other



Design

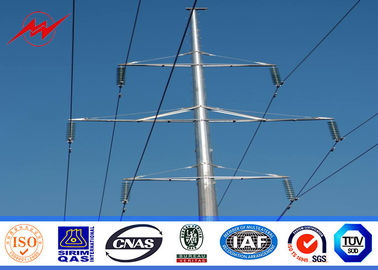

15M Octagonal Electric Insulators Distribution Poles For 132KV Electrical Power



Company Ability



• 2500t Brake Press (capacity to press poles with wall thicknesses up to 30mm)

• Automatic Plasma cutting, Flame cutting, Seam welding and Flange welding machines

• Straightening machines

• CNC Punching machines

• Capacity to produce poles with diameters ranging from 60mm to greater than 3000mm

• Capacity to produce poles in heights from 3m to greater than 75m

• Capable of producing poles for any requirement from small distribution poles to large transmission poles



Production On Site

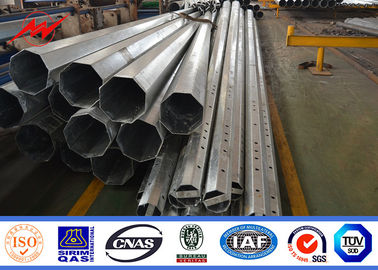

15M Octagonal Electric Insulators Distribution Poles For 132KV Electrical Power





Company Introduction:



Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .

Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.

We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.

We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the high mast pole for Sochi Winter Olympic Game and so on.
