Payment & Shipping Terms:
|Name:||16 M Electrical Steel Tubular Pole With Cross Arm For Transmission Line||Design:||16 M Electrical Steel Tubular Pole With Cross Arm|
|Design Load:||1280kg||Port:||Always Shanghai|
|Galvanization Standard:||ASTM A123 Average Coating Thickness 100microns||Welding:||AWS D1.1 Penetration :100%|

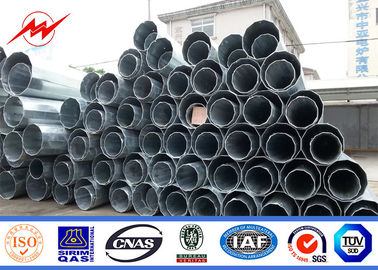

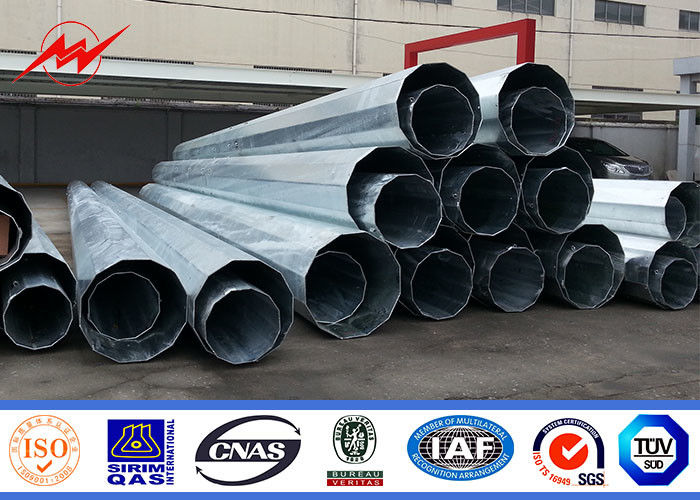

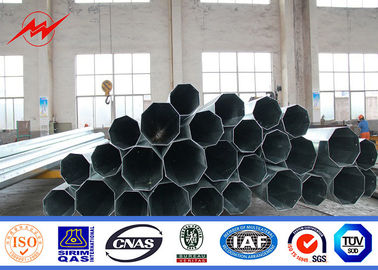

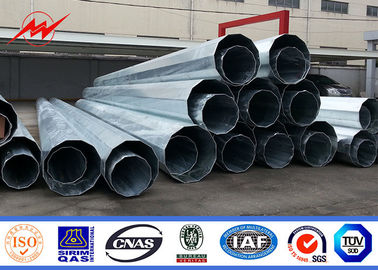

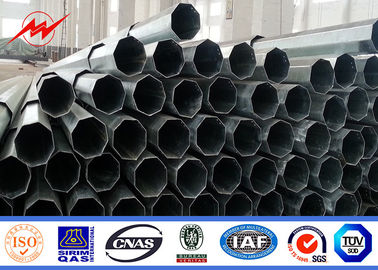

16 M Electrical Steel Tubular Pole With Cross Arm For Transmission Line
|Material||High-quality steel Q235/SS400 from BAOSTEEL Group|
|Welding Technique||Automatic submerged arc welding|
|Surface Treatment||Hot dip galvanizing and powder painting|
|Welding Standard||GB11345 Grade Ⅱ|
|Thickness of Zinc Coating||≥ 86um|
|Adhesive Force of Zinc Coating||GB2694-88|
|Anti-corrosion Lifetime||≥20 years|
|Steel Pole Height Options||9m|
Because of the long and thin shape,closed polygonal section and apply of high strength steel material,these steel poles have excellent durability.they can withstand the extreme condition,such as the frost climate,unbalanced loads, or breaking of wire.
The designing weight of the steel poles are usually relatively light ,and is good for the operation,transportation,assemble and installation.
Since the long and thin straight line shape.the steel pole from Milkyway Steel Poles are easily intergrated into the landscape.At the protected areas(mountains),the installation of steel pole will not influence the aesthetic solution of the scenic spot.
The hot dip galvanization trearment can increase the service life of the steel polewithout the environmental pollution and no need for other daily maintance.The following described types are specially designed for Africa Market which can meet the regulated height and load standard of France electricity power company.

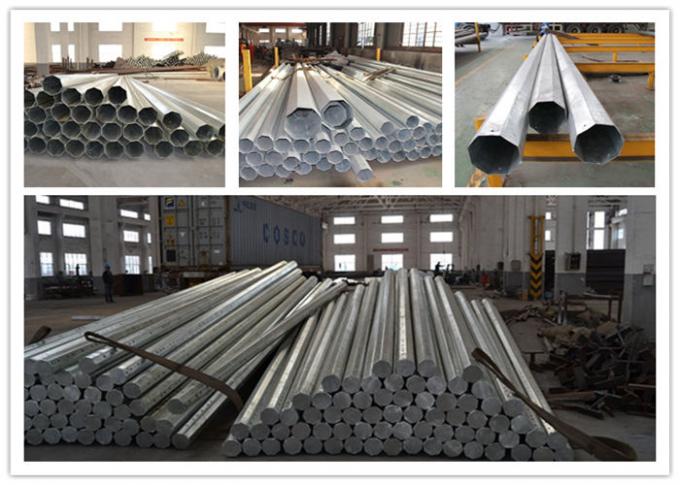

our steel pole is bend to form to the polygonal(conical) section firstly.Then it is welded by the automatic submerged-arc welding machine.Thirdly the top cap,strip and base plate will be welded to the pole.And finally other accessories (support brackets ,ladder support,etc.)will be welded to the pole shaft.
The galvanization of the steel pole are under strict control.galvanization is achieved by immersion in a molten zinc bath(450°) after pre-treated(dipping)
Q1. How can I get a price of needed pole?
A: 1. Please give the exactly dimensions such as height, thickness, material, top and bottom dia. We can according to your specification give you a similar price.
2. You can send us a drawing; we can according to your drawing give you one price.
|Q2. I am a small wholesaler, do you accept small order?|
|A: It's no problem if you are a small wholesaler; we would like to grow up with you together.|
|Q3. I am a designer; Can you help me to produce the sample which we designed?|
|A: Our mission is to help customers to be successful. So it's welcome if we can help you solve problem and make your design come true.|
|Q4. We want be your agent of our area. How to apply for this?|
|A: Please send your idea and your profile to delia @yin-he.com|
|Q5. Tell me about your company?|
A: Jiangsu Milky Way Steel Poles Co.,Ltd , we have been a manufacturer and exporter of all kinds of steel poles, including street lighting pole,
power transmission pole, floodlighting pole for large squares and other steel products since 1991.Our poles have been exported to more than 70 countries and areas.
|Q6. Do you have some special policies for Brand company?|
A: Yes, we have some special support for the company who has own brand but also in our VIP customers list. Please send us your selling
data of last year. So we can see how to support you for your products in your market.
|Q7. Can you make Door to Door service? Because i don't know how to do customs clearance.|
A: Yes. We can make Door to Door service to help you save much time of shipping. Also we have big discount with shipping company because
we have do much of this every day. So it will save your time also money.
