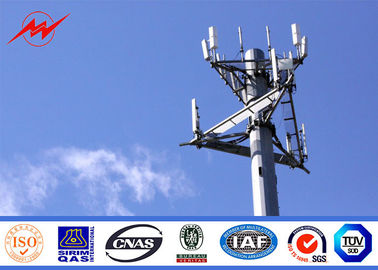

16 Sides 30M Outdoor Monopole Mono Pole Tower Communication Distribution

China 16 Sides 30M Outdoor Monopole Mono Pole Tower Communication Distribution supplier
16 Sides 30M Outdoor Monopole Mono Pole Tower Communication Distribution supplier 16 Sides 30M Outdoor Monopole Mono Pole Tower Communication Distribution supplier 16 Sides 30M Outdoor Monopole Mono Pole Tower Communication Distribution supplier 16 Sides 30M Outdoor Monopole Mono Pole Tower Communication Distribution supplier

Large Image :  16 Sides 30M Outdoor Monopole Mono Pole Tower Communication Distribution

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/SGS
Model Number: Mono Pole Tower

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
Detailed Product Description
Product Name: Mono Pole Tower Application: Communication Distrubution
Thickness: 1 Mm To 30 Mm Warranty: 15 Years
Life Time: 50 Years Galvanization Standard: ASTM A 123

16 Sides 30M Outdoor Monopole Power Tower Communication Distribution



16 Sides 30M Outdoor Monopole Mono Pole Tower Communication Distribution

 Steel


 The material is in accordance with NF EN 10025
 Standard and NF EN 10149 Standard,it has the following property.
 -Yield Strength=355N/mm2
 -Toughness remains the same under 20 degrees below zero.
 -Galvanization is in accordance with NFA35503 Standard Class 1.





 Specifications:



Suit for

Communication distribution

Shape

Conoid ,Multi-pyramidal,Columniform,polygonal or conical

Material

Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,
SS490, to ST52-

Torlance of the dimension

+- 2%

Power

10  KV ~550 KV

Safety Factor

Safety factor for conducting wine : 8
Safety factor for grounding wine : 8

Design Load in Kg

300~ 1000 Kg applied to 50cm from the to pole

Marks

Name plate through rivert or glue ,engrave ,emboss

as per customer requirement

Surface treatment

Hot dip galvanized Following ASTM A 123,
color polyester power or any other standard by client required

Joint of Poles

Insert mode,inner flange mode,face to face joint mode

Design of pole

Against earthquake of 8 grade

Wind Speed

160 Km/Hour .  30 m /s

Length of per section

Within 14m once forming without slip joint

Welding

We has past flaw testing.Internal and external double welding makes
the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1

Thickness

1 mm to 30 mm

Production Process

Row material test → Cutting →Molding or bending →
Welding (longitudinal )→Dimension verify →Flange welding
→Hole drilling →Calibration → Deburr→Galvanization or
powder coating ,painting →Recalibration →Thread →Packages





 Galvanization
 Standard:NFA91121
 Average thickness of the galvanization:Not less than 86μm.





16 Sides 30M Outdoor Monopole Mono Pole Tower Communication Distribution

 Company Introduction:
 Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of  the largest sea port of China ,Shanghai,Port .
 Our Company has 24 years experience on producing the steel poles including the transmission power  pole,street light pole,high mast pole and so on.
 We exported to oversea countries since 1991 and our products have been delivered to more than 70  countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa  and so on.
 We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the  high mast pole for Sochi Winter Olympic Game and so on.
