Product Details:

Place of Origin: Jiangsu
Brand Name: milky way
Certification: ISO9001:2015
Model Number: steel pole

Payment & Shipping Terms:

Minimum Order Quantity: 500pieces
Price: USD 1-500/poles
Packaging Details: Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pics will calculation base on the client actually specification and data.
Delivery Time: always 2 weeks
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000per month
Contact Now
Detailed Product Description
Material: Q235 Q345 GR65 SS400 Wind Speed: 35m/s
Origin Of Place: Yixing Type: Flange
Surface Treament: Hot Dip Galvanization Galvanization Standard: ASTM A123
Welding: AWS D1.1 Warrenty: 30 Years
Lifetime: 50 Years



Product Description

To assure our products qualified ,we take steps as follows :

1. Management team : We have employ the foreign export to take charge of the overall management ,especially the technical management and quality management .

2.Introducing ISO management ,We are award ISO 9001:2008 certificate . .

3.QC inspection :It is our company policy that all the finish product should be inspected by our specialized QC in every manufacture steps and before every shipment"



1-30mm Galvanised Electric Steel Pole For Power Transmission With Flange And Anchor Bol

1-30mm Galvanised Electric Steel Pole For Power Transmission With Flange And Anchor Bol

1-30mm Galvanised Electric Steel Pole For Power Transmission With Flange And Anchor Bol

1-30mm Galvanised Electric Steel Pole For Power Transmission With Flange And Anchor Bol

Product Type:
Straight Pole ,Tensile Pole ,Turn Pole
Material:
Electricity distribution
Shape:
Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Material:
Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52-
Tolerance of dimension:
+- 2%
Safety Factor:
Safety factor for conducting wine : 8
Safety factor for grounding wine : 8
Design Load in Kg:
300~ 1000 Kg appliced to 50cm from the to pole
Marks:
Nane plate through rivert or glue ,engrave ,emboss as per customer requirement
Surface treatment
Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
Joint of Poles
Insert mode,inner flange mode,face to face joint mode .
Design of pole
Against earthquake of 8 grade
Wind Speed
160 Km/Hour . 30 m /s
Minimum yield strength
355 mpa
Minimum ultimate tensile strength
420mpa
Max ultimate tensile strength
690mpa
Length of per section
Within 14m once forming without slip joint
Welding
We has past flaw testing.Internal and external double welding makes the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1
Production Process
Raw material test → Cutting→Molding or bending →Welding (longitudinal )→Dimension verify→Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages









Detailed Images





1-30mm Galvanised Electric Steel Pole For Power Transmission With Flange And Anchor Bol









1-30mm Galvanised Electric Steel Pole For Power Transmission With Flange And Anchor Bol

1-30mm Galvanised Electric Steel Pole For Power Transmission With Flange And Anchor Bol

1-30mm Galvanised Electric Steel Pole For Power Transmission With Flange And Anchor Bol

1-30mm Galvanised Electric Steel Pole For Power Transmission With Flange And Anchor Bol1-30mm Galvanised Electric Steel Pole For Power Transmission With Flange And Anchor Bol





Our Company



1-30mm Galvanised Electric Steel Pole For Power Transmission With Flange And Anchor BolJiangsu Milky Way Steel Poles Co.,Ltd.

Estabilshed in 1991,Jiangsu Milky Way Steel Poles is located in Wuxi ,East of China ,near one of the largest sea port of China ,Shanghai ,Port .Our Products have been widely used in the power transmission ,signal transmission and lighting for street ,road ,square ,palaestra . and so on.We have plenty of export experience . Since our first overseas order from Pakistan in 1991 of 132 KV transmission poles ,our products have been deliveried to more than 70 countries and areas ,including America ,Australia ,Russia ,Genmery ,Span, Philippines ,Malaysia and so on
As an BV ,ISO ,SGS approved supplier in China ,we have more than 20 years produce and export steel pole ,and we can assure the pole we offered is of sound quality which made from qualified material with our professional workers and advance equipment .

1-30mm Galvanised Electric Steel Pole For Power Transmission With Flange And Anchor Bol

Certification

1-30mm Galvanised Electric Steel Pole For Power Transmission With Flange And Anchor Bol

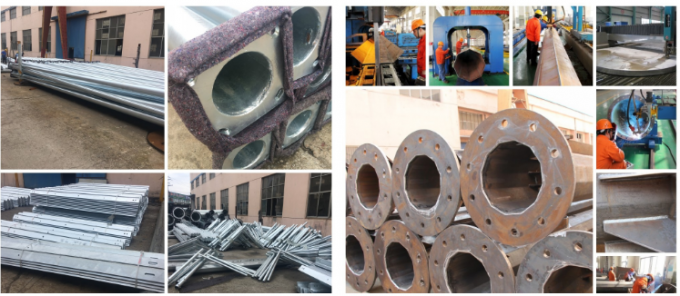

Product Processing

1-30mm Galvanised Electric Steel Pole For Power Transmission With Flange And Anchor Bol

1-30mm Galvanised Electric Steel Pole For Power Transmission With Flange And Anchor Bol

1-30mm Galvanised Electric Steel Pole For Power Transmission With Flange And Anchor Bol

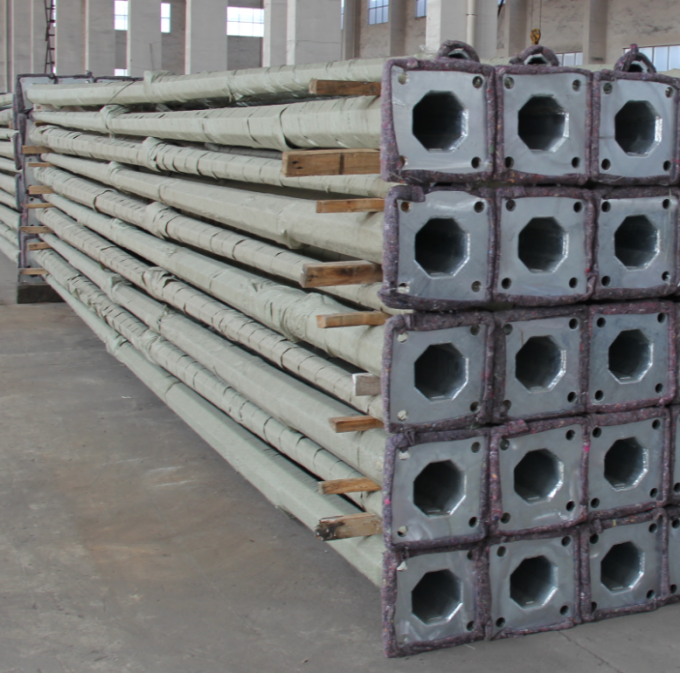

Product Package

1-30mm Galvanised Electric Steel Pole For Power Transmission With Flange And Anchor Bol







Main Products

1-30mm Galvanised Electric Steel Pole For Power Transmission With Flange And Anchor Bol

Trade terms:

1. Price Term: EXW, FOB, CFR or CIF.

The price includes pole shaft, base plate, cross arm and anchor part.

Shipping seaport: Shanghai Seaport. For FOB, CFR or CIF price, please specify which exact model you need, and tell us your order quantity so that we can calculate the local transport charges and sea freight.

2. MOQ: 1 sets.

3. Payment: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.

4. Package: Plastic paper or according to clients requirement.

5. Delivery: for 30 sets, goods can be ready for shipment within 10 workdays after receiving deposit.

6. Parts Design Service Period: 20 years.



Q1. How can I get a price of needed pole?
A: 1. Please give the exactly dimensions such as height, thickness, material, top and bottom dia. We can according to your specification give you a similar price.
2. You can send us a drawing; we can according to your drawing give you one price.

Q2. I am a small wholesaler, do you accept small order?
A: It's no problem if you are a small wholesaler; we would like to grow up with you together.

Q3. I am a designer; Can you help me to produce the sample which we designed?
A: Our mission is to help customers to be successful. So it's welcome if we can help you solve problem and make your design come true.

Q4. We want be your agent of our area. How to apply for this?
A: Please send your idea and your profile to delia @yin-he.com

Q5. Tell me about your company?
A:Jiangsu Milky Way Steel Poles Co.,Ltd , we have been a manufacturer and exporter of all kinds of steel poles, including street lighting pole,power transmission pole, floodlighting pole for large squares and other steel products since 1991.Our poles have been exported to more than 70 countries and areas.

Q6. Do you have some special policies for Brand company?
A:Yes, we have some special support for the company who has own brand but also in our VIP customers list. Please send us your selling data of last year. So we can see how to support you for your products in your market.

Q7. Can you make Door to Door service? Because i don't know how to do customs clearance.
A:Yes. We can make Door to Door service to help you save much time of shipping. Also we have big discount with shipping company because we have do much of this every day. So it will save your time also money.

1-30mm Galvanised Electric Steel Pole For Power Transmission With Flange And Anchor Bol
1-30mm Galvanised Electric Steel Pole For Power Transmission With Flange And Anchor Bol



Our steel pole, steel poles , steel power poles ,power steel poles, electrical poles, electrical power poles, power poles, power distribution equipment poles , electric power transimission &distribution steel poles ,hot-dip-galvanized steel poles ,lamp poles ,road poles, streeting lighting poles, street lamp poles ,solar street lamps steel poles ,high mast lamp poles,road lamp poles, the steel street lamp poles, hot-dip-galvanized steel lighting ,outdoor lighting ,outdoor lamps ,street lighting poles ,steel post ,street poles, lamp parts ,lighting fixture ,lighting poles ,lighting equipment ,lighting decoration ,lighting product , street lighting body, high mast lighting steel poles &tower,electric poles, round&square street lighting steel poles with double arm or single arm . Stainless steel poles, Flag mast stainless steel pole, aluminum street light poles, traffic lighting steel poles, telecom tower poles , baseplate , bearing plate, base flanges , are made by hot-roll steel coil ,the process as cut plate, bending ,forming,automatic welding,drill holes ,quality check before galvanized, hot dip galvanized or powder coating , final quality check according by client required.
