21m 8 Sides Steel Tubular Pole Galvanized electric power pole for Transmission

Certification
China Jiangsu milky way steel poles co.,ltd certification
China Jiangsu milky way steel poles co.,ltd certification
Dear Sirs, Hereby we confirm that JiangSu MilkyWay steel poles co., ltd is our partner for several years. Since that time this company has shown itself as reliable supplier of qualitative products.We also would like to note that they provide top level service and all kinds of support.We plan to continue our fruitful cooperation co-operation for many years more.

—— Abacus

We do hereby certify the 69 KV transmmision line steel pole(from 25ft to 90 ft ) manufacuterd by Jiangsu Milky Way Steel Poles Co., Ltd since 2010.We are satisfied with their quality,service and the ways and attention they showed toward our order.

—— National Electricity Company

I'm Online Chat Now

21m 8 Sides Steel Tubular Pole Galvanized electric power pole for Transmission

China 21m 8 Sides Steel Tubular Pole Galvanized electric power pole for Transmission supplier
21m 8 Sides Steel Tubular Pole Galvanized electric power pole for Transmission supplier 21m 8 Sides Steel Tubular Pole Galvanized electric power pole for Transmission supplier 21m 8 Sides Steel Tubular Pole Galvanized electric power pole for Transmission supplier 21m 8 Sides Steel Tubular Pole Galvanized electric power pole for Transmission supplier

Large Image :  21m 8 Sides Steel Tubular Pole Galvanized electric power pole for Transmission

Product Details:

Place of Origin: China,Jiangsu
Brand Name: MilkyWay
Certification: ISO9001/BV/SGS
Model Number: Steel Tubular Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
Detailed Product Description
Welding: AWS D1.1 Material: Q345
Delivery: 20-30 Days Supply Ability:: 2000pcs Per Week
Brand Name: MilkyWay Certificate: ISO9001:2008
Tolerance: +/-2%
High Light:

metal light pole

,

floodlight pole

21m 8 Sides Steel Tubular Pole Galvanized electric power pole for Transmission





Working atmosphere of

lighting fixture

-35 ℃~+45 ℃
Surface treatment

Hot dip galvanized Following ASTM A 123, color
polyester power or any other standard by client required.

Joint of Poles  Insert mode,innerflange mode,face to face joint mode
Design of pole Against earthquake of 8 grade
Wind Speed 160 Km/Hour
Minimum yield strength 355 mpa
Minimum ultimate tensile strength 490 mpa
Standard   ISO 9001
Length of per section Within 14m once forming without slip joint
Welding

We has past flaw testing.Internal and external double welding makes the
welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1

Thickness  1 mm to 30 mm
Production Process

Raw material test → Cuttingj →Molding or bending →Welidng

(longitudinal
)→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or
powder coating ,painting →Recalibration →Thread →Packages

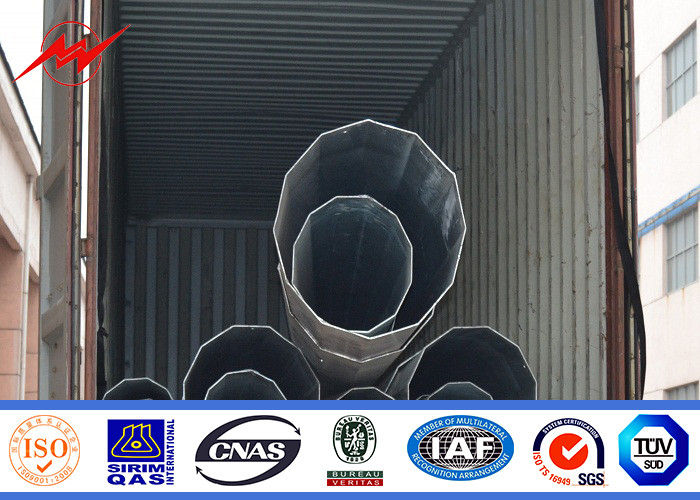

Packages

Our poles as normal cover by Mat or straw bale at the top and
bottom,anyway also can following by client required , each 40HC or OT

can loading how many pcs will
calculation base on the client actually specification and data.

Style   Size and styles are veriable as per customer request






Inspection:



21m 8 Sides Steel Tubular Pole Galvanized electric power pole for Transmission 0





Description:



Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on.



We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV transmission poels ,our products have been deliveried to more than 70 contries and areas ,including America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia and so on.



21m 8 Sides Steel Tubular Pole Galvanized electric power pole for Transmission 1



Our Servises:



1  Reply your inquiry in 24 working hours.



2  Experienced staffs answer all your questions in fluent English.



3  Customized design is available. UEM&UBM are welcomed.



4  Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.



5  Special discount and protection of sales are provided to our distributor.



6  Professional factory : We are manufacturer, specializing in producing all kinds of steel poles for more than 20 years, competitive with good quantity.



7  Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.



8  As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.







if you have any question or need additional information ,pls feel free to contact me !
