Home ProductsSteel Power Pole

220KV 10-100M Hot Dip Galvanized Steel Tubular Pole For Electrical Industry

Certification
Good quality Electrical Power Pole for sales
Good quality Electrical Power Pole for sales
Dear Sirs, Hereby we confirm that JiangSu MilkyWay steel poles co., ltd is our partner for several years. Since that time this company has shown itself as reliable supplier of qualitative products.We also would like to note that they provide top level service and all kinds of support.We plan to continue our fruitful cooperation co-operation for many years more.

—— Abacus

We do hereby certify the 69 KV transmmision line steel pole(from 25ft to 90 ft ) manufacuterd by Jiangsu Milky Way Steel Poles Co., Ltd since 2010.We are satisfied with their quality,service and the ways and attention they showed toward our order.

—— National Electricity Company

I'm Online Chat Now

220KV 10-100M Hot Dip Galvanized Steel Tubular Pole For Electrical Industry

China 220KV 10-100M Hot Dip Galvanized Steel Tubular Pole For Electrical Industry supplier
220KV 10-100M Hot Dip Galvanized Steel Tubular Pole For Electrical Industry supplier 220KV 10-100M Hot Dip Galvanized Steel Tubular Pole For Electrical Industry supplier 220KV 10-100M Hot Dip Galvanized Steel Tubular Pole For Electrical Industry supplier

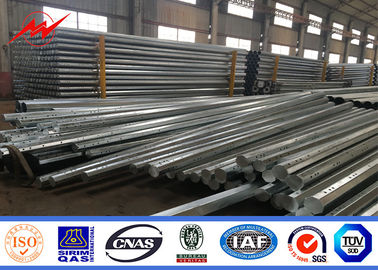

Large Image :  220KV 10-100M Hot Dip Galvanized Steel Tubular Pole For Electrical Industry

Product Details:

Place of Origin: JIANGSU YIXING
Brand Name: milky way
Certification: ISO 9001;2015
Model Number: 220kv steel tubular pole

Payment & Shipping Terms:

Minimum Order Quantity: 10 POLES
Price: USD 99-650 PER POLES
Packaging Details: Our poles as normal cover by Mat or straw bale at the top and bottom and wood between the poles to avoide the damage on the galvanization of the pole ,anyway also can following by client required , The loading capacity of 40HC or OT an be calulated calcu
Delivery Time: ALWAYS 20 DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 POLES PER WEEK
Contact Now
Detailed Product Description
MATERIAL: Q234 Q345 Q460 APPLICATION: POWER TRANSMISSION
COLOR: CUSTOMIZED HEIGHT: 10-100M
SURFACE TREATMENT: HOT DIP GALVANIZATION GALVANIZATION STANDARD: ASTM A123
WELDING: AWS D1.1 WARRENTY: 15 YEARS
Design Of Pole: Against Earthquake Of 8 Grade

220KV 10-100M Hot Dip Galvanized Steel Tubular Pole For Electrical Industry







Product Introduction

220KV 10-100M Hot Dip Galvanized Steel Tubular Pole For Electrical Industry



Material :Usually Q345B/A572,minimum yield strength>=345n/mm2
                Q235B/A36,minimum yield strength>=235n/mm2
               As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52-


Torlance of the diensmtion: +- 2%

Electroshock resistant protective grade :Grade Ⅰ

The casing anti-corrosion performance :Class Ⅱ

Surface treatment: Hot dip galvanized Following ASTM A 123, color polyester power or any                                         other   standard by client required.

Joint of Poles: Insert mode, innerflange mode ,face to face joint mode .

Design of pole: Against earthquake of 8 grade

Wind Speed: 160 Km/Hour

Minimum yield strength :355 mpa

Minimum ultimate tensile strength :490 mpa

Max ultimate tensile strength :620 mpa

Standard ISO :9001:2015

Length of per section :Within 14m once forming without slip joint

Style :Size and styles are veriable as per customer request

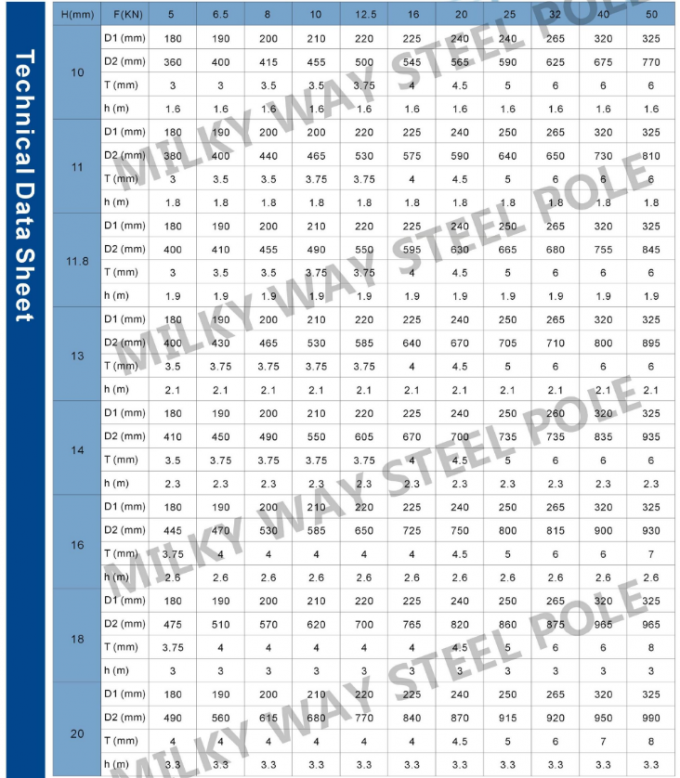

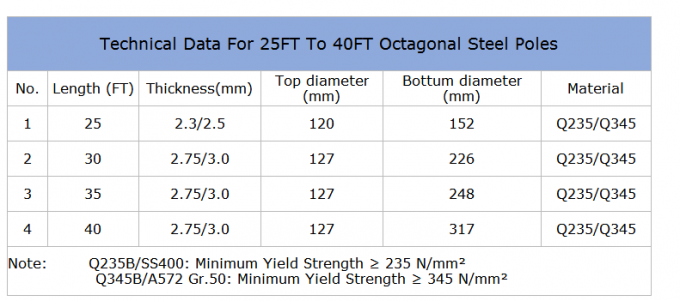

Product Parameters

220KV 10-100M Hot Dip Galvanized Steel Tubular Pole For Electrical Industry

220KV 10-100M Hot Dip Galvanized Steel Tubular Pole For Electrical Industry

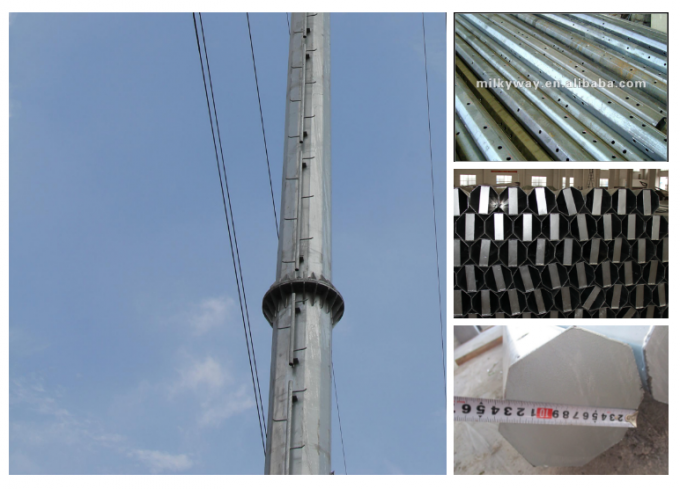

Product Details Show

220KV 10-100M Hot Dip Galvanized Steel Tubular Pole For Electrical Industry

220KV 10-100M Hot Dip Galvanized Steel Tubular Pole For Electrical Industry



Why Choose Us

220KV 10-100M Hot Dip Galvanized Steel Tubular Pole For Electrical Industry





OVERSEAS PROJECT
COUNTRY UTILITY VOLTAGE LEVEL TYPE YEARS OF SUPPLY
PHILIPPINES NEA,NGCP 69KV 25FT-100FT,AS PER CUSTOMS’ REQUIREMENT EVERY YEAR
GHANA GHANA ELERCITY COMPANG   10m,11m 2015
PAKISTAN WAPDA 132KV SPA,APD,SPG 2013
SAUDI ARABIC SAUDI ELECTRICITY COMPANY   10M ELECTRIC POLE 2011
ECUADOR CELEC 138KV PB-B40 2009
MORE PROJECT ,PLEASE VISIT OUR WEBSITE OR CONTACT WITH SALES.



220KV 10-100M Hot Dip Galvanized Steel Tubular Pole For Electrical Industry







 Product Processing

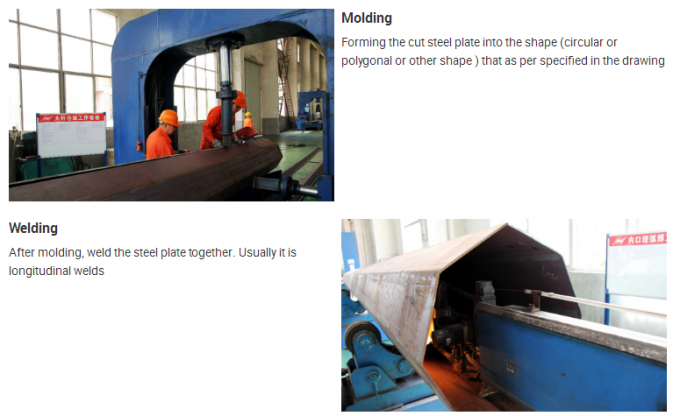

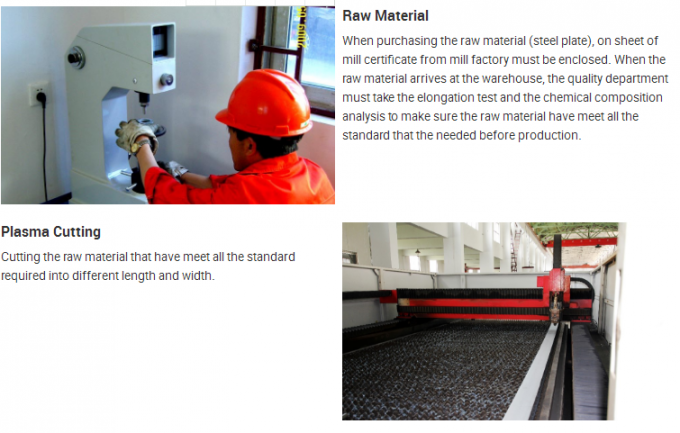

Raw material test → Cutting→Molding or bending →Welding (longitudinal )→Dimension verify→Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages

220KV 10-100M Hot Dip Galvanized Steel Tubular Pole For Electrical Industry

220KV 10-100M Hot Dip Galvanized Steel Tubular Pole For Electrical Industry

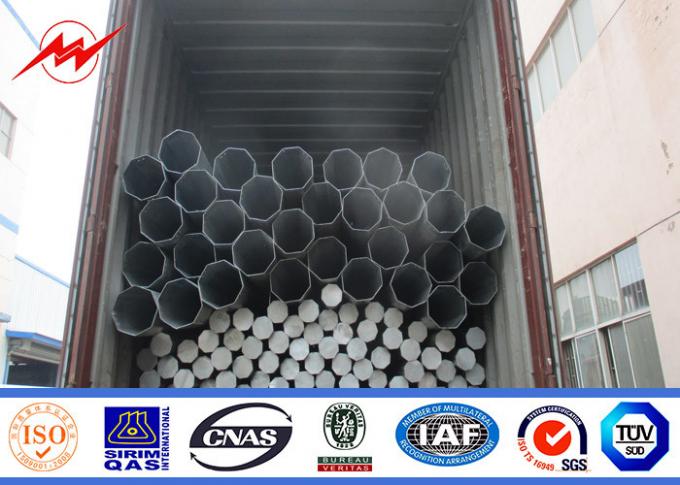

Product Packing

220KV 10-100M Hot Dip Galvanized Steel Tubular Pole For Electrical Industry

Package: Plastic paper or according to clients requirement.

Delivery: for 30 sets, goods can be ready for shipment within 10 workdays after receiving deposit.







Main Products

220KV 10-100M Hot Dip Galvanized Steel Tubular Pole For Electrical Industry

Our steel pole, steel poles , steel power poles ,power steel poles, electrical poles, electrical power poles, power poles, power distribution equipment poles , electric power transimission &distribution steel poles ,hot-dip-galvanized steel poles ,lamp poles ,road poles, streeting lighting poles, street lamp poles ,solar street lamps steel poles ,high mast lamp poles,road lamp poles, the steel street lamp poles, hot-dip-galvanized steel lighting ,outdoor lighting ,outdoor lamps ,street lighting poles ,steel post ,street poles, lamp parts ,lighting fixture ,lighting poles ,lighting equipment ,lighting decoration ,lighting product , street lighting body, high mast lighting steel poles &tower,electric poles, round&square street lighting steel poles with double arm or single arm . Stainless steel poles, Flag mast stainless steel pole, aluminum street light poles, traffic lighting steel poles, telecom tower poles , baseplate , bearing plate, base flanges , are made by hot-roll steel coil ,the process as cut plate, bending ,forming,automatic welding,drill holes ,quality check before galvanized, hot dip galvanized or powder coating , final quality check according by client required.











FAQ



Trade terms:

1. Price Term: EXW, FOB, CFR or CIF.

The price includes pole shaft, base plate, cross arm and anchor part.

Shipping seaport: Shanghai Seaport. For FOB, CFR or CIF price, please specify which exact model you need, and tell us your order quantity so that we can calculate the local transport charges and sea freight.

2. MOQ: 1 sets.

3. Payment: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.

4. Package: Plastic paper or according to clients requirement.

5. Delivery: for 30 sets, goods can be ready for shipment within 10 workdays after receiving deposit.

6. Parts Design Service Period: 20 years.



Q1. How can I get a price of needed pole?

A: 1. Please give the exactly dimensions such as height, thickness, material, top and bottom dia. We can according to your specification give you a similar price.

2. You can send us a drawing; we can according to your drawing give you one price.

Q2. I am a small wholesaler, do you accept small order?
A: It's no problem if you are a small wholesaler; we would like to grow up with you together.
Q3. I am a designer; Can you help me to produce the sample which we designed?
A: Our mission is to help customers to be successful. So it's welcome if we can help you solve problem and make your design come true.
Q4. We want be your agent of our area. How to apply for this?
A: Please send your idea and your profile to delia @yin-he.com
Q5. Tell me about your company?

A:Jiangsu Milky Way Steel Poles Co.,Ltd , we have been a manufacturer and exporter of all kinds of steel poles, including street lighting pole,

power transmission pole, floodlighting pole for large squares and other steel products since 1991.Our poles have been exported to more than 70 countries and areas.

Q6. Do you have some special policies for Brand company?

A:Yes, we have some special support for the company who has own brand but also in our VIP customers list. Please send us your selling

data of last year. So we can see how to support you for your products in your market.

Q7. Can you make Door to Door service? Because i don't know how to do customs clearance.

A:Yes. We can make Door to Door service to help you save much time of shipping. Also we have big discount with shipping company because

we have do much of this every day. So it will save your time also money.
