Payment & Shipping Terms:
|Product Name:||25m Height 8mm Thickness Shopping Mall High Mast Pole With Lifting System||Surface Treatment:||Galvanization|
|Warrenty:||15 Years||Lift Time:||50 Years|
|Shape:||Conoid,multi-pyramidal,columniform,poly||Welding Standard:||AWS D1.1|
high mast lighting pole,
Park Light pole

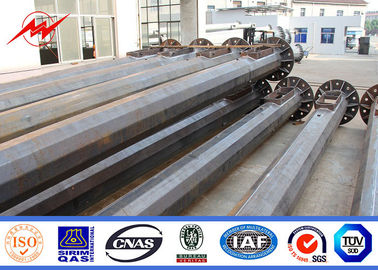

25m height 8mm thickness shopping mall High Mast Pole with lifting system
High mast light using high thermal conductivity material and independent heat-sink per LED chip become an effective solution to heat problems then LED light decline can be reduced to a minimum making lamp life more than 80.000 hours. LED models availability up to 1100W let users to replace from 2000W to 3000W HPS or MH HID lamps with more than 85% energy saving and 200% maintenance costs savings. So Return of Investment (R.O.I) is much less than one year making this technology "mandatory" for large-scale outdoor high poles applications.
Using also the long life and high reliable Mean-Well power supply we have made a breakthrough. Use this design the power life has been as high as 65,000 hours or more, which ensure the reliability and stability of the total lighting system.
Using optical grade PMMA lens with several Beam angle options we also can reduce the light loss and increase the effective illumination distance up to 300 m.
IP67 protection grade is reached handling the product waterproof by the method of single lamp seal and sealed combining, ensure the water resistance of the lamp while meet the thermal conditions, making the lamp more secure, more reliable.
From 20 m to 50 m
Airport ,seaport,plaza,stadium ,square,highway,street way etc
Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Usually Q345B/A572,minimum yield strength>=345n/mm2
400 W- 5000 W
Various figure of slection ,material with hot dip galvanization steel frame ,
Up to 30 000 ㎡
Projector generally to be applied with safety grade IP65 Luminaire with high pressure
Lifter fixed in the inner of the pole with lifting speed of 3~5 meter per minute Euqiped e;
Electric appliance box to be be the holde of the pole ,lifting operation could be 5 meter
Hot dip galvanized Following ASTM A 123, color polyester power or any other
Joint of Poles

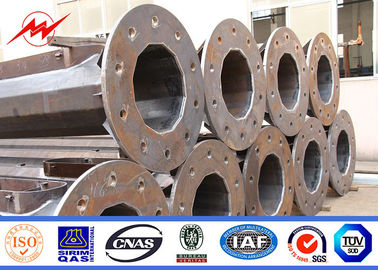

Insert mode,innerflange mode,face to face joint mode .
Design of pole
Against earthquake of 8 grade
Length of per section
Within 14m once forming without slip joint
We has past flaw testing.Internal and external double welding makes the welding beautiful
1 mm to 30 mm
Rew material test → Cuttingj →Molding or bending →Welidng (longitudinal )→Dimension
Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can
Aerial clog could be installed complied with clients desire to carry camera or industrial

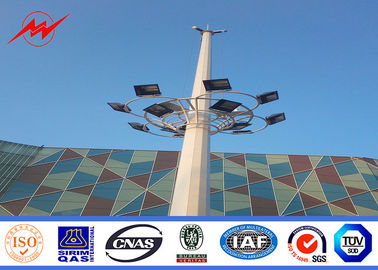

The high mast light have different types, we can arrange all the light to aim in one direction or arranged in a circle. Also it can use the lifting system or fixed ladder, you can choose a better one.
To assure our products qualified ,we take steps as follows :
