27.5m 60KN GR65 Material Utility Power Poles Transmission 45ft 50ft Height

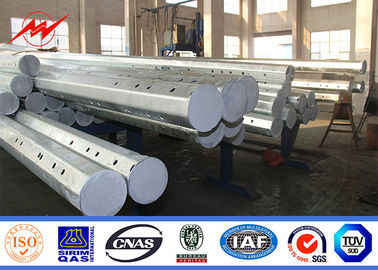

Large Image : 27.5m 60KN GR65 Material Utility Power Poles Transmission 45ft 50ft Height

Product Details:

Place of Origin:	China
Brand Name:	Milky Way
Certification:	ISO//BV
Model Number:	27.5m 60KN GR65 material utility power pole for transmission

Payment & Shipping Terms:

Minimum Order Quantity:	one 40HQ
Price:	negotiation
Packaging Details:	as per customer request
Delivery Time:	usually 2 weeks after confirming
Payment Terms:	T/T
Supply Ability:	300 pieces pole per day

Contact Now

Detailed Product Description

Type:	27.5m 60KN GR65 Material Utility Power Pole For Transmission	Style:	Galvanization
Suit For:	Electricity Distribution	Welding Standard:	AWS D 1.1
Height:	45ft 50ft	Application:	Electric Power Transmission, Power Transmission And Distribution Line, Power Distribution, Double Circuit Steel Utility Poles, Support Cable
Galvanization Standard:	ASTM A 123
High Light:	electrical power poles , electrical transmission poles

27.5m 60KN GR65 material utility power pole for transmission

Material:	Hot rolled steel, Q235,Q345,GR65, or customized
Pole’s height	27.5m
length	Within 16m once forming without slip joint
Wall thickness	2.5mm-20mm or optional
Pole's Shape:	dodecagon
Arm type:	Single arm, Double arm, or as per cliens' request
Temperature range	-35 °C~+45 °C
Max wind velocity	Aganist wind pressure of 160Km/h
Base plate mounted	Base plate is square, octagonal or round in shape with slotted holes for anchor bolt and dimension as per customer’s requirement.
Ground mounted	The length buried underground as per customer’s requirement.

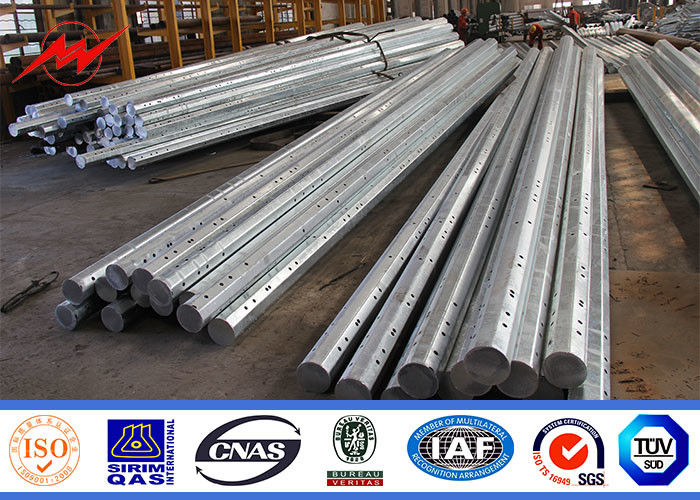

27.5m 60KN GR65 Material Utility Power Poles Transmission 45ft 50ft Height 1

Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required. Our main products steel pole, electric power transimission &distribution steel poles ,hot-dip-galvanized steel poles ,lamp poles,high mast poles,lattice tower, etc.
With deep engineering know-how, Milky Way is well qualified to account for the lighting load, tower weight, variable wind speeds, local soil conditions and a host of other relevant variables which less experienced suppliers may not consider in their designs.

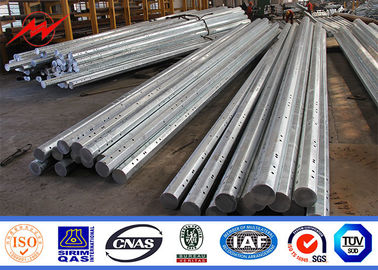

27.5m 60KN GR65 Material Utility Power Poles Transmission 45ft 50ft Height 2

Estbilsed in 1991,Jiangsu Milky Way Steel Poles is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai Port .

We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV transmission poels ,our products have been deliveried to more than 70 contries and areas ,including America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia and so on.
