27M Tapered Transmission Metal Light Pole Three Sections Slip Joint

China 27M Tapered Transmission Metal Light Pole Three Sections Slip Joint supplier
27M Tapered Transmission Metal Light Pole Three Sections Slip Joint supplier 27M Tapered Transmission Metal Light Pole Three Sections Slip Joint supplier 27M Tapered Transmission Metal Light Pole Three Sections Slip Joint supplier 27M Tapered Transmission Metal Light Pole Three Sections Slip Joint supplier

Large Image :  27M Tapered Transmission Metal Light Pole Three Sections Slip Joint

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/SGS
Model Number: Steel Utility Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
Detailed Product Description
Class: Class A Or B Application: Electric Power Transmission
Pole Seal: Steel Top Plate Welding Welding Standard: AWS D 1.1
Surface Treatment: Galvanization Dimenstion Torlance: +- 2%
High Light:

electrical transmission poles

,

high voltage pole

27M Tapered Transmission Metal Light Pole Three Sections Slip Joint

Specifications:



Joint of Poles Insert mode,innerflange mode,face to face joint mode
Design of pole Against earthquake of 8 grade
Wind Speed 160 Km/Hour .  30 m /s
Minimum yield strength 355 mpa
Minimum ultimate tensile strength 490 mpa
Max ultimate tensile strength 620 mpa
Standard  ISO 9001
Length of per section Within 14m once forming without slip joint


Pole Type



Two different types:

Flange type

Welding type

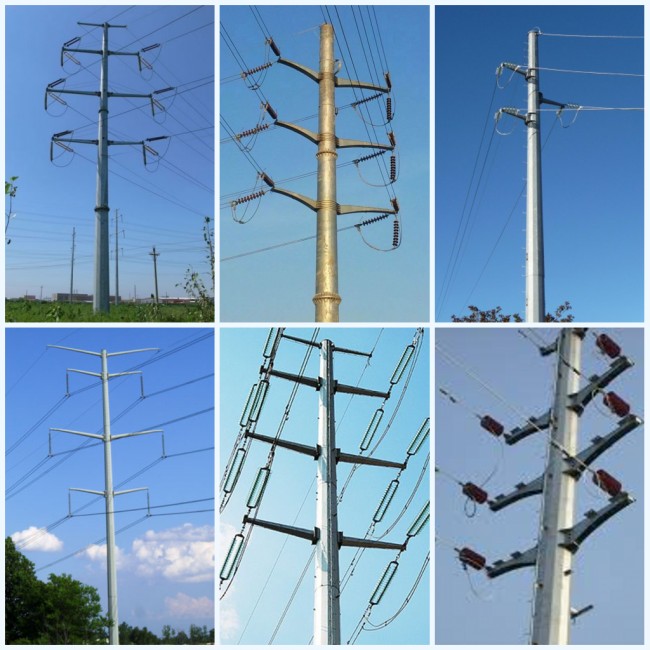

27M Tapered Transmission Metal Light Pole Three Sections Slip Joint 0



Key Benefits



Fabricated with uniform dimensions

Easy to install

Durable

Easy to maintain

Lower in life cycle costs

A solution to EPA regulations and deforestation issues

Superior in strength

Impervious to insects and rot

Free of toxic chemical treatments or hazardous waste concerns

100% recyclable

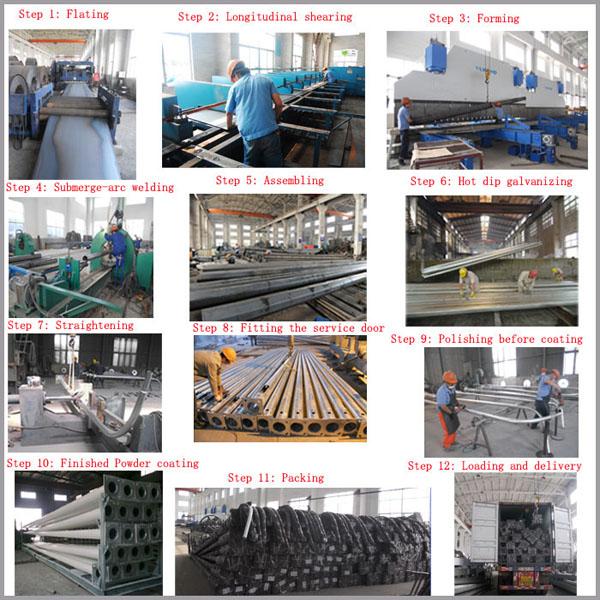

 Manufacture Process:



• 2500t Brake Press (capacity to press poles with wall thicknesses up to 30mm)

• Automatic Plasma cutting, Flame cutting, Seam welding and Flange welding machines

• Straightening machines

• CNC Punching machines

• Capacity to produce poles with diameters ranging from 60mm to greater than 3000mm

• Capacity to produce poles in heights from 3m to greater than 75m

• Capable of producing poles for any requirement from small distribution poles to large transmission poles



27M Tapered Transmission Metal Light Pole Three Sections Slip Joint 1



Standard Accessory
-Top plate
-Base plate
-Bottom strip
-Standard hole
-Climbing rung
-Anchor bolt
-Bitumen protection
-Painted marking
-Removable ladder

Available Foundation Types
Direct Embedment
Anchor Bolt/Base Plate
Vibratory Steel Caisson

Available Finishes
Galvanized per ASTM A123
Paint over galvanized,paint over black steel
Powder Coating

Standard Features

In-Ground Mounted:
12-sided pole shaft
Welded top cap
Mounting holes (to your specification if required)
Identification plate
M12 earth point 250mm above the nominal ground line
M24 nut 250mm above the nominal ground line (to assist lifting)
Additional in-ground corrosion protection 200mm above to 400mm below the nominal ground line
Anti-sink straps
Hot dip galvanised finish

Base Plate Mounted:
12-sided pole shaft (40kN to 80kN)
16-sided pole shaft (100kN & 120kN)
Welded top cap
Mounting holes (to your specification if required)
Identification plate
M12 earth point 250mm above the pole base
Two lifting gussets on the base plate
Anchor bolts, templates, nuts & washers
Hot dip galvanised finish



More Pictures

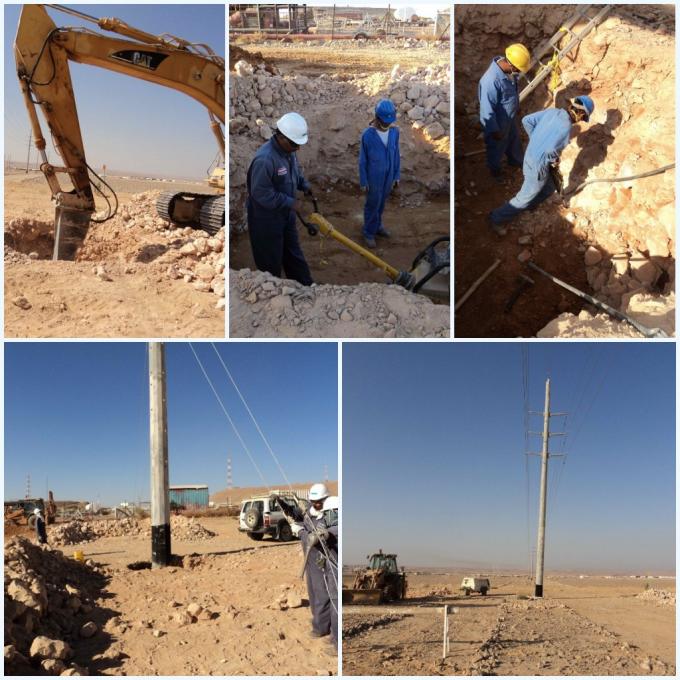

27M Tapered Transmission Metal Light Pole Three Sections Slip Joint 2





Company Introduction:

Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .

Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.

We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.

We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the high mast pole for Sochi Winter Olympic Game and so on.
