2.75*127*248*10670mm Gr,345 Mpa HDG Steel Power Pole Monopoles With AWS D1.1

China 2.75*127*248*10670mm Gr,345 Mpa HDG Steel Power Pole Monopoles With AWS D1.1 supplier
2.75*127*248*10670mm Gr,345 Mpa HDG Steel Power Pole Monopoles With AWS D1.1 supplier 2.75*127*248*10670mm Gr,345 Mpa HDG Steel Power Pole Monopoles With AWS D1.1 supplier 2.75*127*248*10670mm Gr,345 Mpa HDG Steel Power Pole Monopoles With AWS D1.1 supplier 2.75*127*248*10670mm Gr,345 Mpa HDG Steel Power Pole Monopoles With AWS D1.1 supplier 2.75*127*248*10670mm Gr,345 Mpa HDG Steel Power Pole Monopoles With AWS D1.1 supplier

Large Image :  2.75*127*248*10670mm Gr,345 Mpa HDG Steel Power Pole Monopoles With AWS D1.1

Product Details:

Place of Origin: China
Brand Name: Milky Way- HDG steel power poles ,monopoles
Certification: SGS/BV/ISO
Model Number: Steel Power Pole 12M high Q345

Payment & Shipping Terms:

Minimum Order Quantity: one 40HQ
Price: negotiation
Packaging Details: as per customer request
Delivery Time: 8
Payment Terms: T/T, L/C
Supply Ability: 300 pieces pole per day
Contact Now
Detailed Product Description
Welding Standard: AWS ( American Welding Society ) D 1.1 With Penatration Rate No Less Than 80%-100% Tolerance: +/-2%
Product Name: 2.75*127*248*10670mm Gr,345 Mpa HDG Steel Power Poles ,monopoles With AWS D1.1 For The Philippiness Material: High Strength Low Alloy Structural Steels
Anchor Bolts: Customization Available Surface Treatment: Hot Dip Glivanized In Accordance With ASTM A123 With Thickness No Less Than 86μm
Design Of Pole: Against Earthquake Of 8 Grade Type: Steel Powe Pole, Momopole



2.75*127*248*10670mm Gr,345 mpa HDG steel power poles ,monopoles with AWS D1.1 for the Philippiness



Type

Steel power pole,monopoles

Suit for

Electricity distribution

Shape

Conoid ,Multi-pyramidal,Columniform,polygonal or conical

Material

ASTM 572 Grade 50 with yieled strength  no less than 345mpa

ASTM 572 Grade 65 with yieled strength no less than 450mpa

Torlance of dimenstion

+- 2%

Power

10  KV ~550 KV

Safety Factor

Safety factor for conducting wire : 8
Safety factor for grounding wire : 8

Design Load in KG

300~ 1000 KG appliced to 50cm from the to pole

Marks

Name palte through rivert or glue ,engrave ,

emboss as per customer

requirement

Surface Treatment

Hot dip glivanized in accordance with ASTM A123 with thickness no less than 86μm

Color polyester power or any other standard by client required.

Joint of Poles

Insert mode,innerflange mode,face to face joint mode .

Design of Pole

Against earthquake of 8 grade

Wind Speed

160 Km/Hour .  30 m /s

Minimum Yield Strength

355 mpa

Minimum Ultimate Tensile Strength

490 mpa

Max Ultimate Tensile Strength

620 mpa

Standard

ISO 9001

Size

2.75*127*248*10670mm

Welding

We  has past flaw testing.

Internal and external double welding makes the welding beautiful in shape

AWS ( American Welding Society ) D 1.1 with penatration rate no less than 80%-100%

Thickness

1 mm to 30 mm

Production Process

Rew material test → Cuttingj →Molding or bending →Welidng (longitudinal )→Dimension verify →

Flange welding →Hole drilling →

Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packaging

Packages

Our poles as normal cover by Mat or straw bale at the top and bottom ,
Anyway also can following by client required , each 40HC or OT can loading
How many pcs will calculation base on the client actually specification and data.

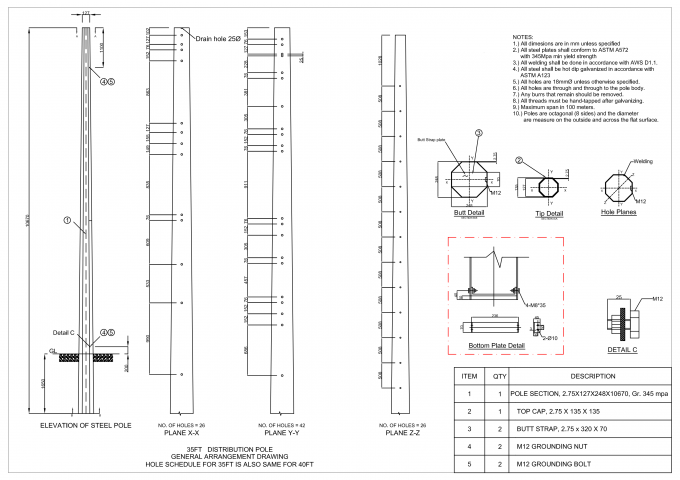

2.75*127*248*10670mm Gr,345 Mpa HDG Steel Power Pole Monopoles With AWS D1.1
2.75*127*248*10670mm Gr,345 Mpa HDG Steel Power Pole Monopoles With AWS D1.1

2.75*127*248*10670mm Gr,345 Mpa HDG Steel Power Pole Monopoles With AWS D1.12.75*127*248*10670mm Gr,345 Mpa HDG Steel Power Pole Monopoles With AWS D1.1






Our Service


1. Factory direct sale.
2. Industry and trade integration business.
3. 15 years experience.
4. Customized designs.
5. ODM, OEM acceptable.
6. Flexible payment.
7. Fast, accurate quotes.
8. Our good service.
9. Technical support by e-mail.
10. Calling service.
11. Provide maintenance instruction video.







WE ARE MANUFACTURER SINCE 1992



Experience: Our company was set up in 1992, having over 24 years of production experience in galvanized garden light poles.

Production Capacity: We manufacture galvanized garden light poles from 3M-35M at the capacity of 20,000 poles per month.

Production lines: For galvanized garden light poles we carry on vertical production to get good control of quality and cost

We have plate cutting line--plate bending line-- auto. welding line--polishing line--spray painting line--packaging line



2.75*127*248*10670mm Gr,345 Mpa HDG Steel Power Pole Monopoles With AWS D1.1



ADVANTAGES



OEM&ODM service available

Great anti-corrosion performance

Long life time: 25 years long life span

BAOSTEEL Q235 steel, high strength and great resilience

Dual protection treatments: hot galvanized first and then powder paint

Multiple painting colors available: Default color Gray. Custom available

Dismountable arms and foundation kit: Only a screwdriver, requiring no welding



2.75*127*248*10670mm Gr,345 Mpa HDG Steel Power Pole Monopoles With AWS D1.1
