33KV 40FT 11900MM Galvanized Steel Power Poles Design Load 500KGS

China 33KV 40FT 11900MM Galvanized Steel Power Poles Design Load 500KGS supplier
33KV 40FT 11900MM Galvanized Steel Power Poles Design Load 500KGS supplier 33KV 40FT 11900MM Galvanized Steel Power Poles Design Load 500KGS supplier 33KV 40FT 11900MM Galvanized Steel Power Poles Design Load 500KGS supplier 33KV 40FT 11900MM Galvanized Steel Power Poles Design Load 500KGS supplier 33KV 40FT 11900MM Galvanized Steel Power Poles Design Load 500KGS supplier 33KV 40FT 11900MM Galvanized Steel Power Poles Design Load 500KGS supplier

Large Image :  33KV 40FT 11900MM Galvanized Steel Power Poles Design Load 500KGS

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/SGS
Model Number: Galvanized Steel Power Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
Detailed Product Description
Product Name: Galvanized Steel Power Pole Application: Power Line
Thickness: 1 Mm To 36mm Tolerance Of The Dimension: +-2%
Life Time: 50 Years Welding Standard: AWS (American Welding Society ) D 1.1
Material: Q345

33KV 40FT 11900MM Design Load 500KGS Galvanized Steel Power Poles





 Specifications:



Distribution Range
Product Code Length ULS Pole Dimension
Top Base
11M 13.5KN 11M 13.5kN 160 328
12.5M 12KN 12.5M 12KN 160 340
12.5M 16KN 12.5M 16KN 180 380
12.5M 24KN 12.5M 24KN 200 420
14M 16KN 14M 16KN 190 402
14M 24KN 14M 24KN 210 465
15.5M 12KN 15.5M 12KN 160 405
15.5M 24KN 15.5M 24KN 210 500
Note:Tapered 12-sided, direct buried
Pole deflection less than 5% of pole height at 50% ULS

Sub Transmission  Range
Product Code Length ULS Pole Dimension
Top Base
18.5M 24KN 18.5M 24KN 210 660
18.5M 40KN 18.5M 40KN 260 730
21M 40KN 21M 30KN 220 697
21M 40KN 21M 40KN 260 795
24M 30KN 24M 30KN 220 755
24M 40KN 24M 40KN 300 760
Note:Tapered 12-sided, direct buried



Suit for

Electricity distribution

Shape

Conoid ,Multi-pyramidal,Columniform,polygonal or conical

Material

Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,
SS490, to ST52-

Torlance of the dimenstion

+- 2%

Power

10  KV ~550 KV

Safety Factor

Safety factor for conducting wine : 8
Safety factor for grounding wine : 8

Design Load in Kg

300~ 1000 Kg appliced to 50cm from the to pole

Marks

Nane palte through rivert or glue ,engrave ,emboss as per

customer requirement

Surface treatment

Hot dip galvanized Following ASTM A 123,
color polyester power or any other standard by client required

Joint of Poles

Insert mode,innerflange mode,face to face joint mode

Design of pole

Against earthquake of 8 grade

Wind Speed

160 Km/Hour .  30 m /s

Welding

We has past flaw testing.Internal and external double welding makes
the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1

Thickness

1 mm to 30 mm

Packages

Our poles as normal cover by Mat or straw bale at the top and bottom ,
anyway also can following by client required , each 40HC or OT can
loading how many pcs will calculation base on the client actually
specification and data





 Description:
 Standard Accessory
 -Top plate
 -Base plate
 -Bottom strip
 -Standard hole
 -Climbing rung
 -Anchor bolt
 -Bitumen protection
 -Painted marking
 -Removable ladder
 These are the standard accessories of the electric pole.

 33KV 40FT 11900MM Galvanized Steel Power Poles Design Load 500KGS

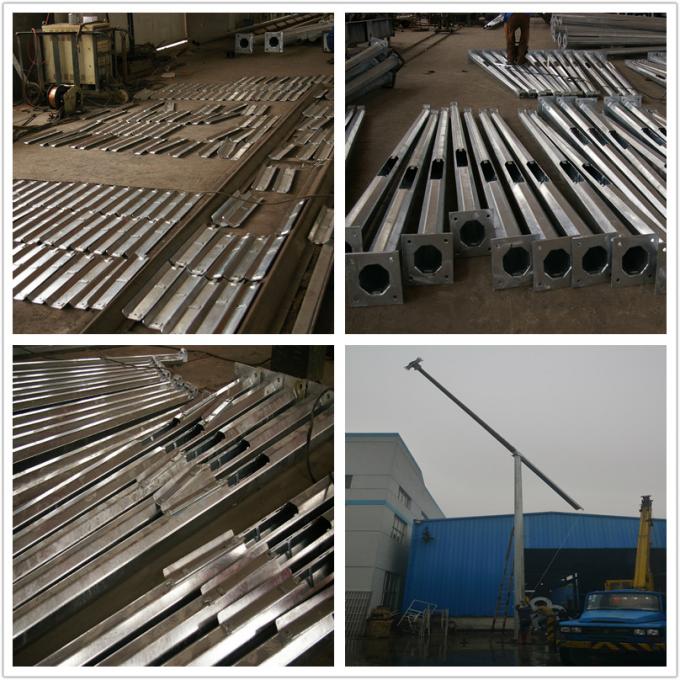

 Galvanizzation

 The galvanization of the steel pole are under strict control.Galvanization is achieved by immersion in a  molten zinc bath(450d°) after pre-treated(dipping).

 33KV 40FT 11900MM Galvanized Steel Power Poles Design Load 500KGS



 Technical information-Cross Arm

 33KV 40FT 11900MM Galvanized Steel Power Poles Design Load 500KGS



 The above listed is the most frequently used design,and is made from angel steel.And the cross arm will  be fixed to the pole shaft connecting by bolts through the pre-drilling holes on both the cross arms and  the pole shaft.If you have any other requirements on the design,material and connecting method for  cross arm,pls contact us.

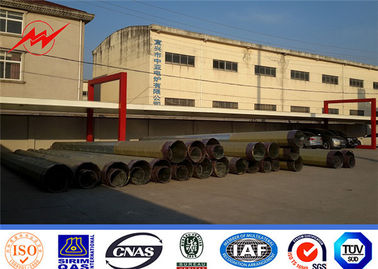

 Package

 Packing with plastic paper or according to client’s request.

 33KV 40FT 11900MM Galvanized Steel Power Poles Design Load 500KGS
