3 Sections 30m 6mm Electricity Pole Telepower Pole ISO Certificate

China 3 Sections 30m 6mm Electricity Pole Telepower Pole ISO Certificate supplier
3 Sections 30m 6mm Electricity Pole Telepower Pole ISO Certificate supplier 3 Sections 30m 6mm Electricity Pole Telepower Pole ISO Certificate supplier 3 Sections 30m 6mm Electricity Pole Telepower Pole ISO Certificate supplier 3 Sections 30m 6mm Electricity Pole Telepower Pole ISO Certificate supplier

Large Image :  3 Sections 30m 6mm Electricity Pole Telepower Pole ISO Certificate

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/SGS
Model Number: Steel Electric Power Poles

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
Detailed Product Description
Product Name: Steel Electric Power Poles Application: Power Distribution
Surface Treatment: HDG Powder Coating Certificate: ISO
Thickness: 6mm Dimenstion Torlance: +- 2%
High Light:

electric utility poles

,

steel utility poles

3 Sections 30m 6mm Steel Electric Power Poles with Cross Arm





 Specification:





Height

From 9 meter to 100 meter

Suit for

Electric Power Transmission and Distribution

Shape

Polygonal or Conical

Material

Normally   Q345B/A572, Minimum Yield Strength ≥ 345 N/mm²

                  Q235B/A36, Minimum Yield Strength ≥ 235 N/mm²

As well as Hot rolled coil from ASTM A572 GR65, GR50, SS400

Power Capacity

10kV to 220kV

Tolerance of the dimension

According to client’s requirement.

Surface treatment

Hot dip galvanized Following ASTM A 123, or any other

standard by client required.

Joint of Poles

Slip joint, flanged connected

Standard

ISO 9001:2008

Length of per section

Within 14 meter once forming

Welding Standard

AWS (American Welding Society ) D 1.1

Thickness

1 mm to 36mm

Production Process

Raw material test → Cutting →bending →Welding (longitudinal )

→Dimension verify →Flange welding →Hole drilling →sample assemble

 → surface clean→ Galvanization or powder coating ,painting →

Recalibration →Packages

Packages

Packing with plastic paper or according to client’s request.





 Production Flow:
 The production process:Row material test → Cutting →Molding or bending →Welding (longitudinal  )→Dimension verify →Flange welding→Hole drilling →Calibration → Deburr→Galvanization or powder  coating ,painting →Recalibration →Thread →Packages

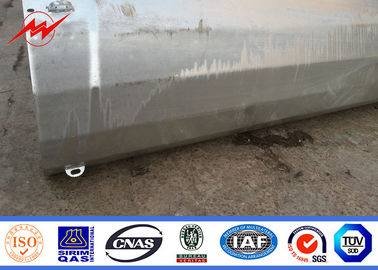

 3 Sections 30m 6mm Electricity Pole Telepower Pole ISO Certificate 0





 Galvanization
 Standard:NFA91121
 Average thickness of the galvanization:Not less than 86μm.

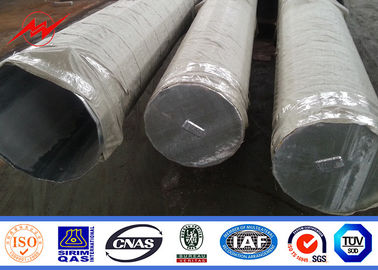

 3 Sections 30m 6mm Electricity Pole Telepower Pole ISO Certificate 1



 Manufacture Tolerance
 -Component Length:-25mm to 75mm
 -Straightness:2mm/m
 -Twisting degree:1°per 3 meters length
 -Ovalisation:Maximum is 3%
 -The average diameter:+/-0.5%
 -Slip length:+/-150mm





 Company Introduction:
 Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of  the largest sea port of China ,Shanghai,Port .
 Our Company has 24 years experience on producing the steel poles including the transmission power  pole,street light pole,high mast pole and so on.
 We exported to oversea countries since 1991 and our products have been delivered to more than 70  countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa  and so on.
 We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the  high mast pole for Sochi Winter Olympic Game and so on.

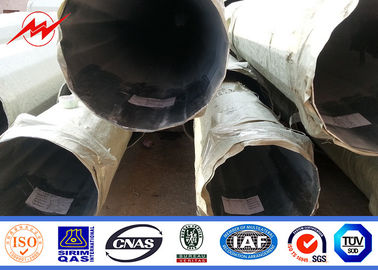

 3 Sections 30m 6mm Electricity Pole Telepower Pole ISO Certificate 2
