3mm Thickness 40ft 500KG Gr65 Electrical Power Pole , Electrical Transmission Poles

China 3mm Thickness 40ft 500KG Gr65 Electrical Power Pole , Electrical Transmission Poles supplier
3mm Thickness 40ft 500KG Gr65 Electrical Power Pole , Electrical Transmission Poles supplier 3mm Thickness 40ft 500KG Gr65 Electrical Power Pole , Electrical Transmission Poles supplier 3mm Thickness 40ft 500KG Gr65 Electrical Power Pole , Electrical Transmission Poles supplier 3mm Thickness 40ft 500KG Gr65 Electrical Power Pole , Electrical Transmission Poles supplier

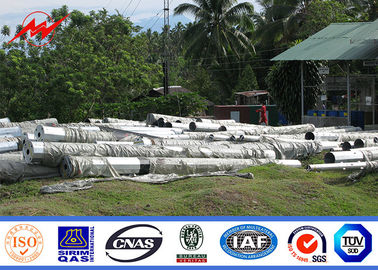

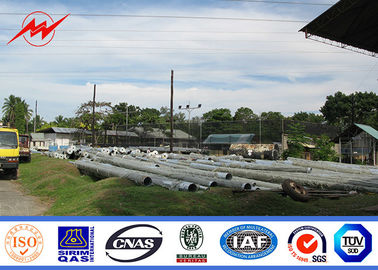

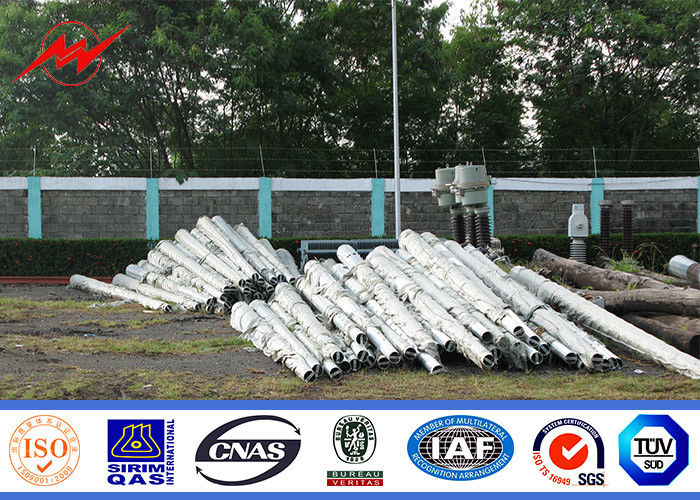

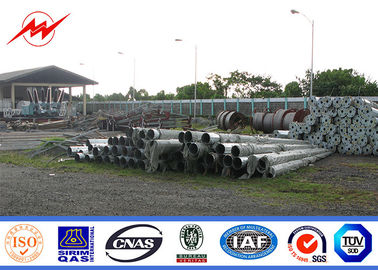

Large Image :  3mm Thickness 40ft 500KG Gr65 Electrical Power Pole , Electrical Transmission Poles

Product Details:

Place of Origin: China
Brand Name: Milky Way
Certification: ISO//BV
Model Number: 3mm thickness 40ft 500KG power transmission Gr65 electric pole

Payment & Shipping Terms:

Minimum Order Quantity: one 40HQ
Price: negotiation
Packaging Details: as per customer request
Delivery Time: usually 2 weeks after confirming
Payment Terms: T/T
Supply Ability: 300 pieces pole per day
Detailed Product Description
Type: Straight Pole, Tensile Pole, Turn Pole Style: Galvanization
Galvanized Standard: ASTM A123 Torlance Of Dimenstion: +- 2%
Welding Standard: AWS D 1.1 Material: Gr65,etc.
Shape: Octagonal Application: Electric Power Transmission,Power Transmission And Distribution Line
High Light:

electrical power poles

,

electrical transmission poles

3mm thickness 40ft 500KG power transmission Gr65 electric pole



Material:

Hot rolled steel, GR65, Q235,Q345,S235, or customized

Pole’s height

3m –15m

length

Within 16m once forming without slip joint

Wall thickness

2.5mm-20mm or optional

Pole's Shape:

Round, Polygonal, Octagonal, Conial

Arm type:

Single arm, Double arm, or as per cliens' request

Application:

road,avenue, street, expressway, park, square

Temperature range

-35 °C~+45 °C

Max wind velocity

Aganist wind pressure of 160Km/h

Base plate mounted

Base plate is square, octagonal or round in shape with slotted holes for anchor bolt and dimension as per customer’s requirement.

Ground mounted

The length buried underground as per customer’s requirement.

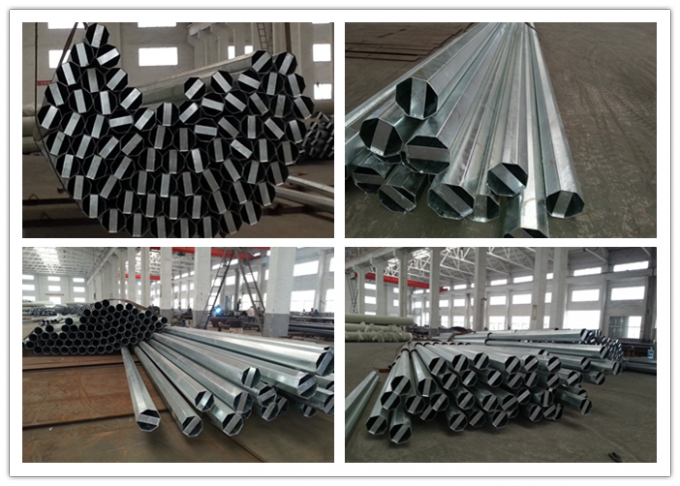

3mm Thickness 40ft 500KG Gr65 Electrical Power Pole , Electrical Transmission Poles 0



Utility poles are commonly used to carry two types of electric power lines:distribution lines (or "feeders") and subtransmission lines.



Steel poles can provide advantages for high-voltage lines, where taller poles are required for enhanced clearances and longer span requirements.



Electric Power Tower includes angle steel tower, tapered tubular steel, transformer substation framework, power plant framework and so on.

Electric power tower is the steel structure frame of bracing electrical wires, keeping a sage distance of guild wires and buildings on the ground. According to appearance, the power tower can be divided to glass type tower, cat head type tower, Shang type tower, Gan type tower and doliform tower.

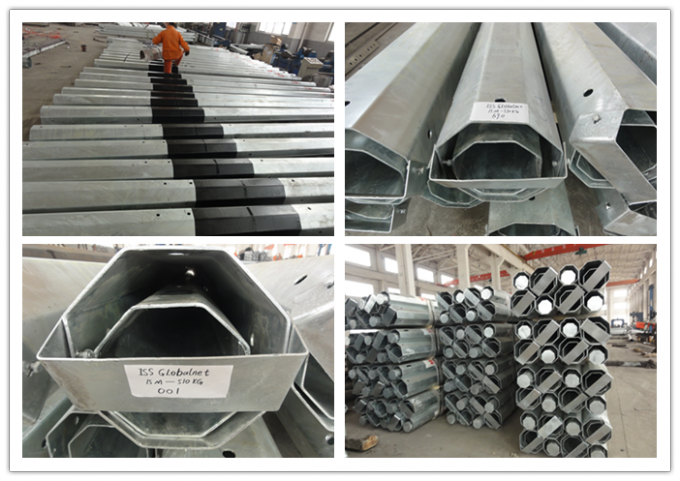

3mm Thickness 40ft 500KG Gr65 Electrical Power Pole , Electrical Transmission Poles 1



Steel tube tower mainly use between high voltage transmission lines, with lightning rod hanging place on top, bolt connecting tower body with cross arm which has wires hanging place. The intersecting surface of tower is oblong, and the intersection surface macroaxis of tower and cross arm is 0 to 90 degree angle. In practical application, raw material can be saved of shorten the circumference of intersection surface by bearing the max bending moment of oblong intersection surface macroaxis.



3mm Thickness 40ft 500KG Gr65 Electrical Power Pole , Electrical Transmission Poles 2



All of our material are purchased from famous mill factory to assure the quality
A mill certificate issued by the mill factory with stamp and signature must be provided before unload the material in our factory; otherwise we have our reason to refuse the material.
Before put into production, all the material must pass the chemical and physical analysis to make sure that they have met the requested strength and component.
