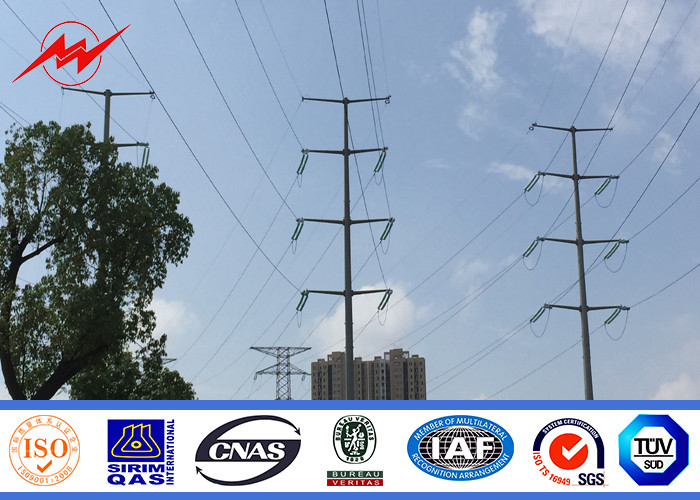

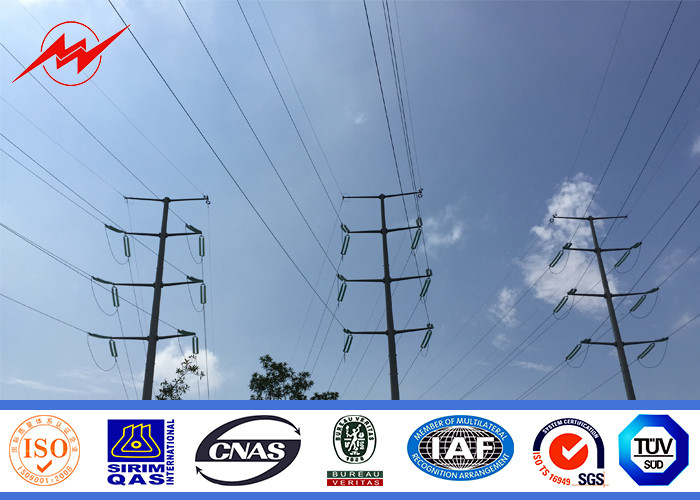

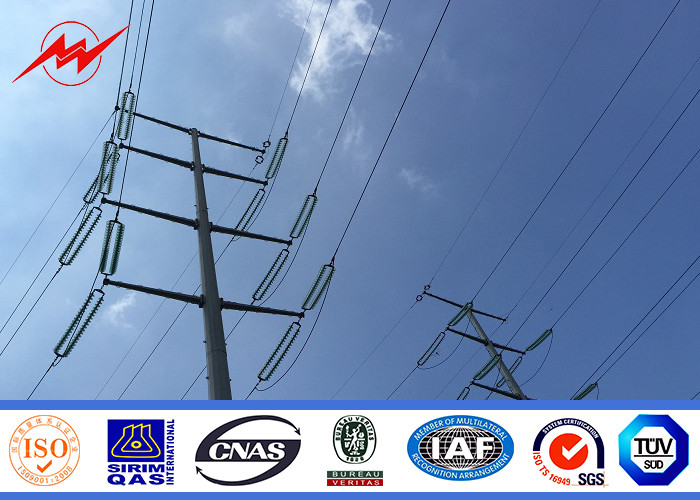

40FT NGCP Steel Utility Pole 3mm GR65for 55KV Power Distribution

China 40FT NGCP Steel Utility Pole 3mm GR65for 55KV Power Distribution supplier
40FT NGCP Steel Utility Pole 3mm GR65for 55KV Power Distribution supplier 40FT NGCP Steel Utility Pole 3mm GR65for 55KV Power Distribution supplier 40FT NGCP Steel Utility Pole 3mm GR65for 55KV Power Distribution supplier 40FT NGCP Steel Utility Pole 3mm GR65for 55KV Power Distribution supplier

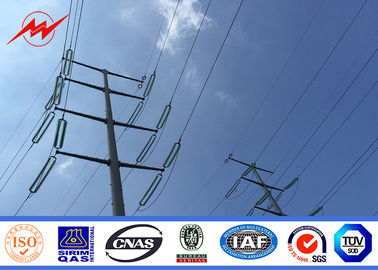

Large Image :  40FT NGCP Steel Utility Pole 3mm GR65for 55KV Power Distribution

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/
Model Number: Steel Utility Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Detailed Product Description
Product Name: Steel Utility Pole Application: Power Transmission
Surface Treatment: Hot Dip Galvanization Dimension Torlance: +- 2%
Welding Standard: AWS D 1.1 Galvanization Standard: ASTM A 123
Material: Gr65 Galvanization Thickness: Average 86μm
High Light:

metal utility poles

,

electrical utility poles

40FT NGCP Steel Utility Pole 3mm for 55KV Power Distribution





 Specifications:





Suit for

Communication distribution

Shape

Conoid ,Multi-pyramidal,Columniform,polygonal or conical

Material

Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,
SS490, to ST52-

Power

10  KV ~550 KV

Safety Factor

Safety factor for conducting wine : 8
Safety factor for grounding wine : 8

Design Load in Kg

300~ 1000 Kg applied to 50cm from the to pole

Marks

Name plate through rivert or glue ,engrave ,emboss as per customer requirement

Surface treatment

Hot dip galvanized Following ASTM A 123,
color polyester power or any other standard by client required

Joint of Poles

Insert mode,inner flange mode,face to face joint mode

Design of pole

Against earthquake of 8 grade

Wind Speed

160 Km/Hour .  30 m /s

Minimum yield strength

355 mpa

Minimum ultimate tensile strength

490 mpa

Max ultimate tensile strength

620 mpa

Length of per section

Within 14m once forming without slip joint

Welding

We has past flaw testing.Internal and external double welding makes
the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1

Thickness

1 mm to 30 mm

Production Process

Row material test → Cutting →Molding or bending →
Welding (longitudinal )→Dimension verify →Flange welding
→Hole drilling →Calibration → Deburr→Galvanization or
powder coating ,painting →Recalibration →Thread →Packages

Packages

Our poles as normal cover by Mat or straw bale at the top and bottom ,
anyway also can following by client required , each 40HC or OT can
loading how many pcs will calculation base on the client actually
specification and data

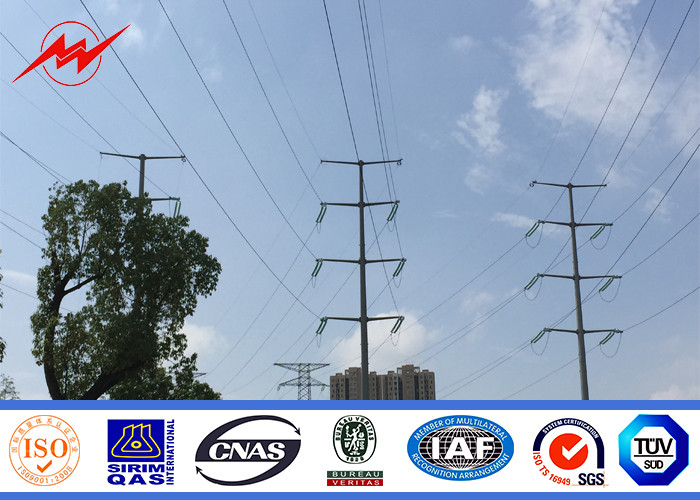

 40FT NGCP Steel Utility Pole 3mm GR65for 55KV Power Distribution 0



 Steel
 The material is in accordance with NF EN 10025
 Standard and NF EN 10149 Standard,it has the following property.
 -Yield Strength=355N/mm2
 -Toughness remains the same under 20 degrees below zero.
 -Galvanization is in accordance with NFA35503 Standard Class 1.

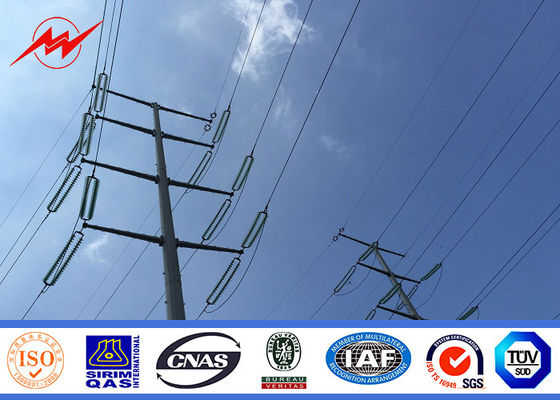

 40FT NGCP Steel Utility Pole 3mm GR65for 55KV Power Distribution 1



 Galvanization
 Standard:NFA91121
 Average thickness of the galvanization:Not less than 70μm.







 Company Introduction:

 JiangSu Milky Way Steel Poles Co., Ltd.was established in 1988, is located in Yixing City, Jiangsu  Province, Wan Shi Town, covering an area of 35,000 square meters, annual output value reached 200  million . We have 20 years experience in design and  production. Our main products are power pole,  communication towers, street lighting poles, steel bracket and so on. The company has strong technical  force, advanced production equipment, perfect quality management system, product quality has reached  international advanced level.
