40M 12 Sides Galvanized High Mast Pole for Plaza Lighting with Winch

China 40M 12 Sides Galvanized High Mast Pole for Plaza Lighting with Winch supplier
40M 12 Sides Galvanized High Mast Pole for Plaza Lighting with Winch supplier 40M 12 Sides Galvanized High Mast Pole for Plaza Lighting with Winch supplier 40M 12 Sides Galvanized High Mast Pole for Plaza Lighting with Winch supplier 40M 12 Sides Galvanized High Mast Pole for Plaza Lighting with Winch supplier

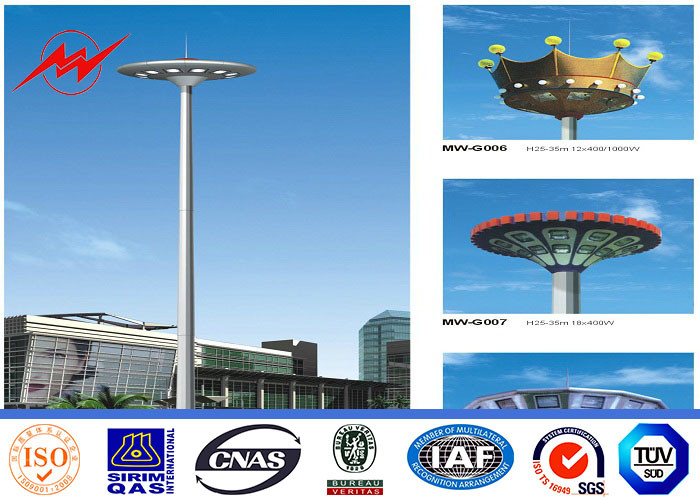

Large Image :  40M 12 Sides Galvanized High Mast Pole for Plaza Lighting with Winch

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/SGS
Model Number: High Mast Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
Detailed Product Description
Product Name: High Mast Pole Application: Airport Lighting
Galvanization Standard: ASTM A 123 Material: Q235
Lift Time: 50 Years Warranty: 15 Years
Thickness: 1 Mm To 30 Mm
High Light:

high mast lighting pole

,

Sports Light Poles

40M 12 Sides Galvanized High Mast Pole for Plaza Lighting with Winch





 Specifications:





Height

From 20m to 55m

Suit for

Airport ,seaport,plaza,stadium ,square,highway,

Shape

Conoid ,Multi-pyramidal,Columniform,polygonal or conical

Material

Usually Q345B/A572,minimum yield strength>=345n/mm2
              Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,
SS490, to ST52-

Lamp power

20 W- 400 W (HPS/MH)
220V (+-10%) /50Hz

Electroshock resistant protective grade

Grade  Ⅰ

The casing anti-corrosion performance

Class Ⅱ

Working atmosphere of lighting fixture

-35 ℃~+45 ℃

Surface treatment

Hot dip galvanized Following ASTM A 123,
color polyester power or any other standard by client required.

Joint of Poles

Insert mode,innerflange mode,face to face joint mode

Design of pole

Against earthquake of 8 grade

Wind Speed

160 Km/Hour

Minimum yield strength

355 mpa

Minimum ultimate tensile strength

490 mpa

Max ultimate tensile strength

620 mpa

Production Process

Rew material test → Cuttingj →Molding or bending →
Welidng (longitudinal )→Dimension verify →Flange welding
→Hole drilling →Calibration → Deburr→Galvanization or
powder coating ,painting →Recalibration →Thread →Packages

Packages

Our poles as normal cover by Mat or straw bale at the top and bottom ,
anyway also can following by client required , each 40HC or OT can
loading how many pcs will calculation base on the client actually
specification and data.





 Galvanization
 Standard:NFA91121
 Average thickness of the galvanization:Not less than 70μm.

 Manufacture Tolerance
 -Component Length:-25mm to 75mm
 -Straightness:2mm/m
 -Twisting degree:1°per 3 meters length
 -Ovalisation:Maximum is 3%
 -The average diameter:+/-0.5%
 -Slip length:+/-150mm

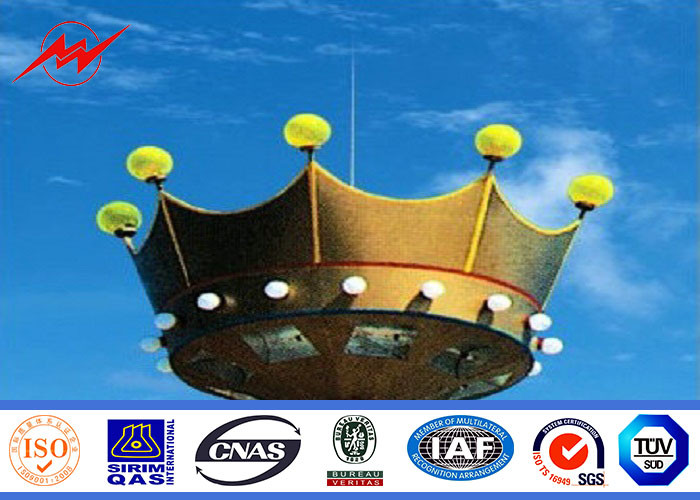

40M 12 Sides Galvanized High Mast Pole for Plaza Lighting with Winch 0









 More Photos:

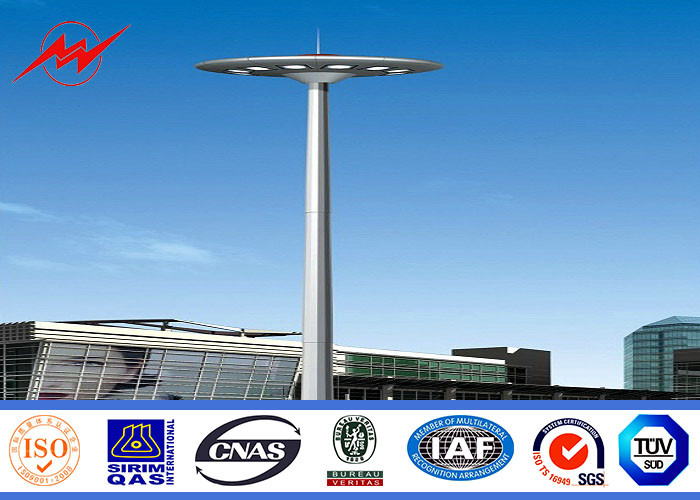

 40M 12 Sides Galvanized High Mast Pole for Plaza Lighting with Winch 1









 Company Introduction:

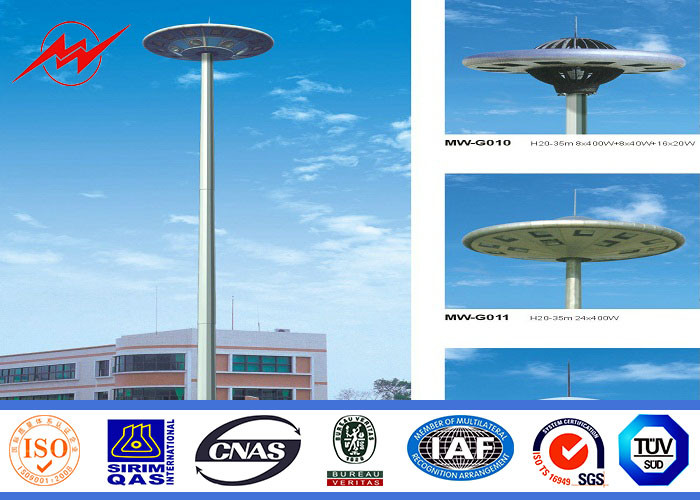

 40M 12 Sides Galvanized High Mast Pole for Plaza Lighting with Winch 2
