4 Sections 10mm High Mast Light Pole For Flyovers Stations City Squares

China 4 Sections 10mm High Mast Light Pole For Flyovers Stations City Squares supplier
4 Sections 10mm High Mast Light Pole For Flyovers Stations City Squares supplier 4 Sections 10mm High Mast Light Pole For Flyovers Stations City Squares supplier 4 Sections 10mm High Mast Light Pole For Flyovers Stations City Squares supplier 4 Sections 10mm High Mast Light Pole For Flyovers Stations City Squares supplier

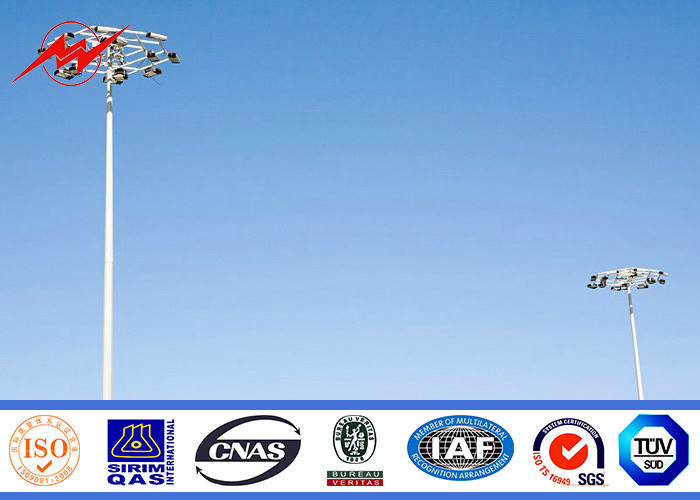

Large Image :  4 Sections 10mm High Mast Light Pole For Flyovers Stations City Squares

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/SGS
Model Number: High Mast Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
Detailed Product Description
Product Name: High Mast Pole Application: Plaza Lighting
Galvanization Thickness: Average 86um Material: Q345
Lift Time: 50 Years Warranty: 15 Years
High Light:

high mast lighting pole

,

Park Light pole

 4 Sections 10mm 40M  High Mast Pole for Plaza Lighting with Climbing Rung





 Specifications:



Specification:

20-50 meters high mast pole

Type

high mast pole

Shape

conical, hexagonal and octagonal

Material

Usually   Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50

SS400, SS490ST52

Torlance of dimenstion

-0.02

Design Load in Kg

300~ 1000 Kg appliced to 50cm from the to pole

Surface treatment

Hot dip galvanized Following ASTM A 123, color polyester

power or any other standard by client required.

Standard

Octagonal Conical tapered column
Certified by SIRIM QAS INTERNATIONAL.
Approved by JABATAN KERJA RAYA MALAYSIA.
Conforms to Standard:
Pole design : BS EN 40
Material : BS EN 10025 S275 / JIS G3101 SS400
Welding : BS 5135
Galvanizing : BS 729 / ISO 1461 ASTM A 123

Length of per section

Within 14m once forming without slip joint.

high mast pole suit for

city square,wharf,stadium

Option of high mast pole

Height from 20m to 35m
Flange mounted or planted type

Production Process of high mast pole

Raw material test → Cutting →Molding or bending

→Welidng (longitudinal )→Dimension verify

→Flange welding →Hole drilling →Calibration →Deburr

→Galvanization or powder coating ,painting →Recalibration

→Thread →Packages





 Descripition of material:
 1. Poles are made by the high-quality metal plants,which were molded into the multi-row cone-shaped  vertical steel barwith hot galvanized anti-corrosion treatment
 2. Light plate frame is made by high-quality stainless steel
 3. Fastened bolts and nuts of stainless steel

 Feature:
 Special designed for stadium to provide high-power, large-area lighting for facilities; Lighthouse is  devided into fixed or lift, fixed poles set up an escalator inside for installation and maintenance purposes
 Light source :400w-1000w sodium light

 Application:
 City squares, stations, ports, highways, stadiums, flyovers and etc

 Standard:
 Electric box protection level: IP23
 Lamp protection level: IP54





 More Photos:

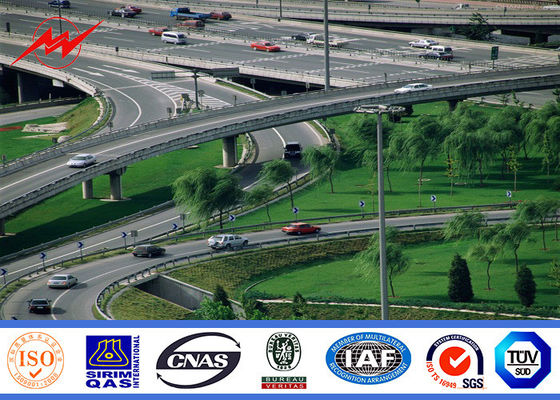

4 Sections 10mm High Mast Light Pole For Flyovers Stations City Squares 0

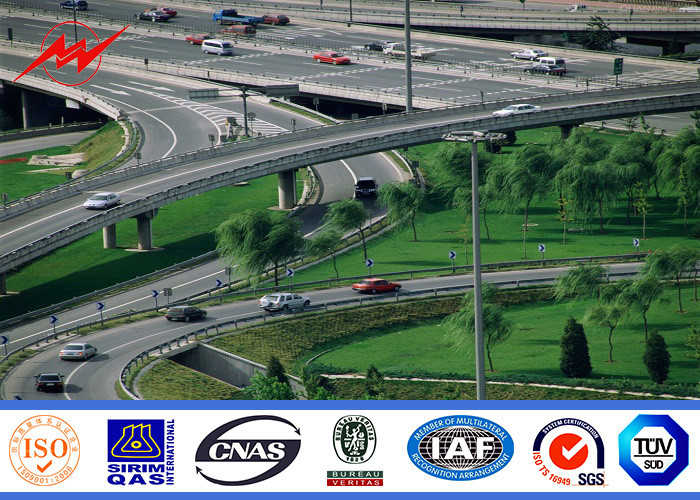

4 Sections 10mm High Mast Light Pole For Flyovers Stations City Squares 1
