4mm 45FT Galvanized Electric Telescoping Power Pole With Cross Arm

China 4mm 45FT Galvanized Electric Telescoping Power Pole With Cross Arm supplier
4mm 45FT Galvanized Electric Telescoping Power Pole With Cross Arm supplier 4mm 45FT Galvanized Electric Telescoping Power Pole With Cross Arm supplier 4mm 45FT Galvanized Electric Telescoping Power Pole With Cross Arm supplier 4mm 45FT Galvanized Electric Telescoping Power Pole With Cross Arm supplier

Large Image :  4mm 45FT Galvanized Electric Telescoping Power Pole With Cross Arm

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/SGS
Model Number: Electric Telescoping Power Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
Detailed Product Description
Product Name: Electric Telescoping Power Pole Application: Distribution Line
Power Capacity: 10kV To 220kV Welding Standard: AWS (American Welding Society ) D 1.1
Wind Load Resistance: 30m/s Thickness: 1mm-36mm
High Light:

electric power pole

,

steel power pole



4mm 45FT Galvanized Electric Telescoping Power Pole With Cross Arm





 Specification:



Height

From 9 meter to 100 meter

Suit for

Electric Power Transmission and Distribution

Shape

Polygonal or Conical

Material

Normally   Q345B/A572, Minimum Yield Strength ≥ 345 N/mm²

                  Q235B/A36, Minimum Yield Strength ≥ 235 N/mm²

As well as Hot rolled coil from ASTM A572 GR65, GR50, SS400

Power Capacity

10kV to 220kV

Tolerance of the dimension

According to client’s requirement.

Surface treatment

Hot dip galvanized Following ASTM A 123, or any other standard

by client required.

Joint of Poles

Slip joint, flanged connected

Standard

ISO 9001:2008

Length of per section

Within 14 meter once forming

Welding Standard

AWS (American Welding Society ) D 1.1

Thickness

1 mm to 36mm

Production Process

Raw material test → Cutting →bending →Welding (longitudinal )→

Dimension verify →Flange welding →Hole drilling →sample assemble

→ surface clean→ Galvanization or powder coating ,painting →Recalibration

→Packages

Packages

Packing with plastic paper or according to client’s request.



Distribution Range
Product Code Length ULS Pole Dimension
Top Base
11M 13.5KN 11M 13.5kN 160 328
12.5M 12KN 12.5M 12KN 160 340
12.5M 16KN 12.5M 16KN 180 380
12.5M 24KN 12.5M 24KN 200 420
14M 16KN 14M 16KN 190 402
14M 24KN 14M 24KN 210 465
15.5M 12KN 15.5M 12KN 160 405
15.5M 24KN 15.5M 24KN 210 500
Note:Tapered 12-sided, direct buried
Pole deflection less than 5% of pole height at 50% ULS

Sub Transmission  Range
Product Code Length ULS Pole Dimension
Top Base
18.5M 24KN 18.5M 24KN 210 660
18.5M 40KN 18.5M 40KN 260 730
21M 40KN 21M 30KN 220 697
21M 40KN 21M 40KN 260 795
24M 30KN 24M 30KN 220 755
24M 40KN 24M 40KN 300 760
Note:Tapered 12-sided, direct buried



 Descripition of material:


 1.   Poles are made by the high-quality metal plants,which were molded into the multi-row cone-shaped  vertical steel barwith hot galvanized anti-corrosion treatment
 2. Light plate frame is made by high-quality stainless steel
 3.  Fastened bolts and nuts of stainless steel

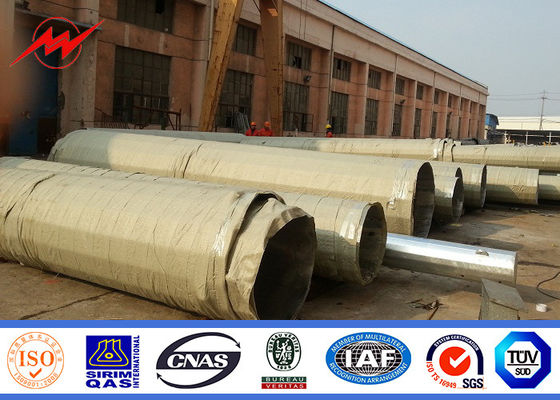

 4mm 45FT Galvanized Electric Telescoping Power Pole With Cross Arm 0



 Galvanization
 Standard:NFA91121
 Average thickness of the galvanization:Not less than 86μm.

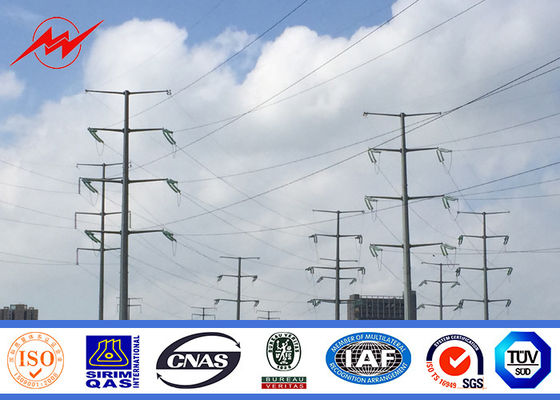

 4mm 45FT Galvanized Electric Telescoping Power Pole With Cross Arm 1



 Installation
 -Remove all the equipment on the pole during Assembly.
 -Circle a sling around th epole shaft of each section.
 -Fix the sling on top section to one pulley block.
 -The sling on the bottom section is tightly fixed and fixed at the center of gravity.
 -Make the steel pole vertical by tighten the sling of the top section.
 -Fix the steel pole.
 -Remove the sling.



 Standard

 Octagonal tapered column
 Certified by SIRIM QAS INTERNATIONAL.
 Approved by JABATAN KERJA RAYA MALAYSIA.
 Conforms to Standard:
 Pole design : BS EN 40
 Material : BS EN 10025 S275 / JIS G3101 SS400
 Welding : BS 5135
 Galvanizing : BS 729 / ISO 1461 ASTM A 123

 4mm 45FT Galvanized Electric Telescoping Power Pole With Cross Arm 2



 Company Introduction:
 Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of  the largest sea port of China ,Shanghai,Port .
 Our Company has 24 years experience on producing the steel poles including the transmission power  pole,street light pole,high mast pole and so on.
 We exported to oversea countries since 1991 and our products have been delivered to more than 70  countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa  and so on.
 We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the  high mast pole for Sochi Winter Olympic Game and so on.
