65FT Electrical Power Galvanized Steel Pole Against 8 Grade Earthquake

China 65FT Electrical Power Galvanized Steel Pole Against 8 Grade Earthquake supplier
65FT Electrical Power Galvanized Steel Pole Against 8 Grade Earthquake supplier 65FT Electrical Power Galvanized Steel Pole Against 8 Grade Earthquake supplier 65FT Electrical Power Galvanized Steel Pole Against 8 Grade Earthquake supplier 65FT Electrical Power Galvanized Steel Pole Against 8 Grade Earthquake supplier

Large Image :  65FT Electrical Power Galvanized Steel Pole Against 8 Grade Earthquake

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/
Model Number: Galvanized Steel Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Detailed Product Description
Product Name: 65FT Electrical Power Galvanized Steel Pole Against 8 Grade Earthquake Welding Standard: AWS D1.1
Galvanization Standard: ASTM A123 Certificate: ISO 9001
Colar: Any Tolerance: +/-2%
High Light:

galvanised steel poles

,

steel transmission poles

65FT Electrical Power Galvanized Steel Pole Against 8 Grade Earthquake





Power

10  KV ~550 KV

Safety Factor

Safety factor for conducting wine : 8

Safety factor for grounding wine : 8

Design Load in Kg

300~ 1000 Kg appliced to 50cm from the to pole

Marks

Nane palte through rivert or glue ,engrave ,emboss as per customer requirement

Surface treatment

Hot dip galvanized Following ASTM A 123,color polyester power or any other standard by client required.

Joint of Poles

Insert mode,innerflange mode,face to face joint mode .

Design of pole

Against earthquake of 8 grade

Wind Speed

160 Km/Hour

Minimum yield strength

355 mpa

Minimum ultimate tensile strength

490 mpa

Max ultimate tensile strength

620 mpa

Standard

ISO 9001

Length of per section

Within 14m once forming without slip joint

Welding

We has past flaw testing.Internal and external double welding makes the welding beautiful in shape Welding Standard :AWS ( American Welding Society ) D 1.1

Thickness

1 mm to 30 mm

Production Process

Rew material test → Cuttingj →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages

Packages

Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data.





Upright stanchion and its main components should meet the standard requirements , the surface should be smooth and welding flat , smooth , solid and reliable . No holes ,welding slag, cold solder joint and weld defects .

Pole and its main components with mine-protected.

Lamps' non - charged metal form an overall through the bolt of shell connection with earth wire.

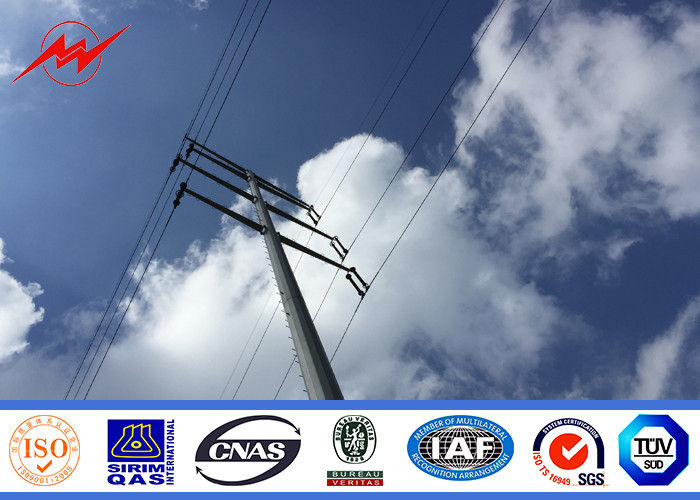

65FT Electrical Power Galvanized Steel Pole Against 8 Grade Earthquake 0



Description:



Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on.



 We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV transmission poels ,our products have been deliveried to more than 70 contries and areas ,including America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia and so on

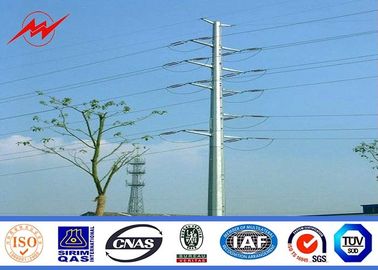

65FT Electrical Power Galvanized Steel Pole Against 8 Grade Earthquake 1





Project:



We have completed many big and important project all over the world and win the trust of our client.

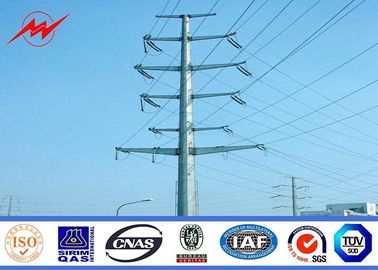

65FT Electrical Power Galvanized Steel Pole Against 8 Grade Earthquake 2
