| High Light: | roadside tubular street light pole,11m tubular street light pole,69KV tubular street light pole |
||
|---|---|---|---|
Specification:
| Type | hot dip galvanized solar street lighting pole |
| Shape | Conoid ,Multi-pyramidal,Columniform,polygonal or conical |
| Material | Usually Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2 As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490ST52 |
| Torlance of dimenstion | -0.02 |
| Design Load in Kg | 300~ 1000 Kg appliced to 50cm from the to pole |
| Surface treatment | Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required. |
| Standard | Octagonal tapered column Certified by SIRIM QAS INTERNATIONAL. Approved by JABATAN KERJA RAYA MALAYSIA. Conforms to Standard: Pole design : BS EN 40 Material : BS EN 10025 S275 / JIS G3101 SS400 Welding : BS 5135 Galvanizing : BS 729 / ISO 1461 ASTM A 123 |
| Length of per section | Within 14m once forming without slip joint. |
| Suit for | Highway Roadway Residential subdivisions Commercial development |
| Option | Height from 6m to 12m Flange mounted or planted type Variable arm length from 0.125m to 3.0m with single or double arm type Variable spigot size from 35mm to 60mm. |
| Production Process | Raw material test → Cutting →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration →Deburr→Galvanization or powder coating ,painting →Recalibration →Thread→Packages |
Experience: Our company was set up in 1992, having over 20 years of production experience in galvanized street light poles.
Production Capacity: We manufacture galvanized street light poles from 3M-35M at the capacity of 20,000 poles per month.

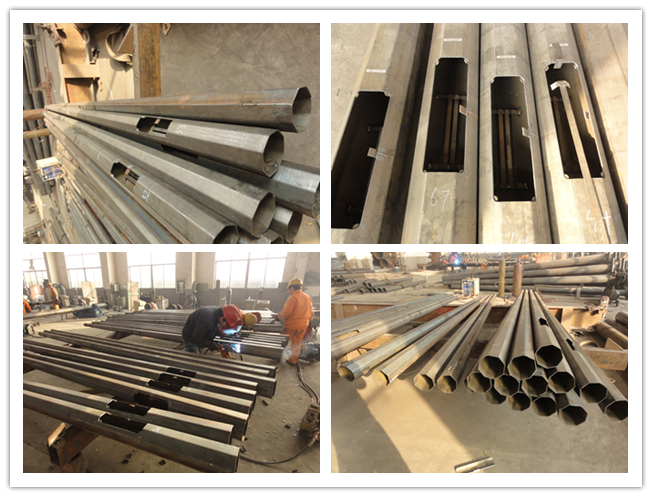

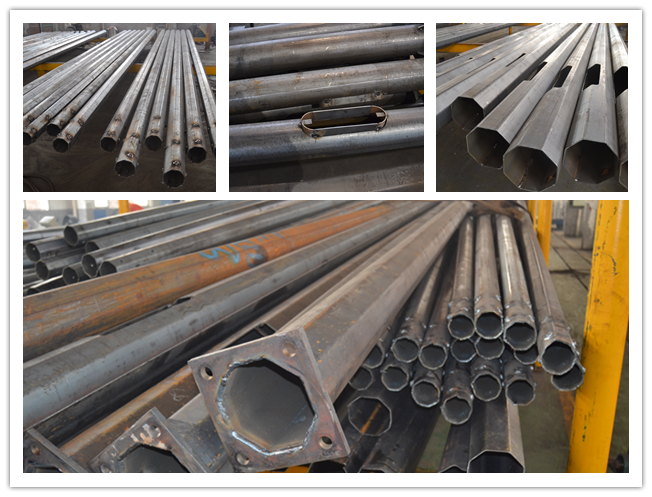

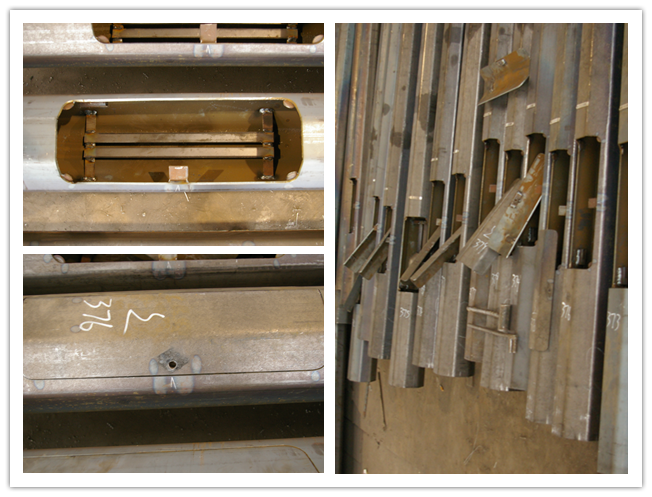

Production lines: For galvanized street light poles we carry on vertical production to get good control of quality and cost
We have plate cutting line--plate bending line-- auto. welding line--polishing line--spray painting line--packaging line
ADVANTAGES
OEM&ODM service available
Great anti-corrosion performance
Long life time: 25 years long life span
BAOSTEEL Q235 steel, high strength and great resilience
Dual protection treatments: hot galvanized first and then powder paint
Multiple painting colors available: Default color Gray. Custom available
Dismountable arms and foundation kit: Only a screwdriver, requiring no welding
