69kv Galvanized Steel Utility Power Poles For Power Transmission Line Project

Certification
China Jiangsu milky way steel poles co.,ltd certification
China Jiangsu milky way steel poles co.,ltd certification
Dear Sirs, Hereby we confirm that JiangSu MilkyWay steel poles co., ltd is our partner for several years. Since that time this company has shown itself as reliable supplier of qualitative products.We also would like to note that they provide top level service and all kinds of support.We plan to continue our fruitful cooperation co-operation for many years more.

—— Abacus

We do hereby certify the 69 KV transmmision line steel pole(from 25ft to 90 ft ) manufacuterd by Jiangsu Milky Way Steel Poles Co., Ltd since 2010.We are satisfied with their quality,service and the ways and attention they showed toward our order.

—— National Electricity Company

I'm Online Chat Now

69kv Galvanized Steel Utility Power Poles For Power Transmission Line Project

China 69kv Galvanized Steel Utility Power Poles For Power Transmission Line Project supplier

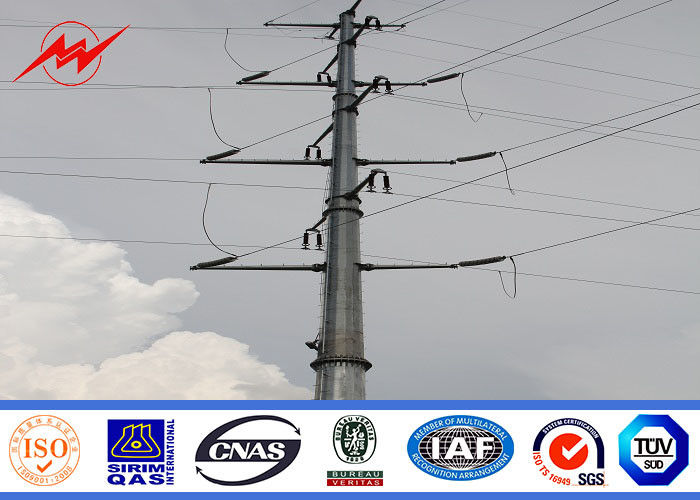

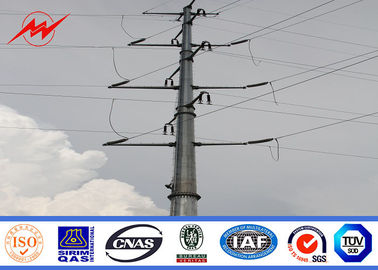

Large Image :  69kv Galvanized Steel Utility Power Poles For Power Transmission Line Project

Product Details:

Place of Origin: China
Brand Name: Milky Way
Certification: ISO, BV,
Model Number: 69kv Galvanized Steel Utility Power Poles For Power Transmission Line Project

Payment & Shipping Terms:

Minimum Order Quantity: one 40 HQ
Price: negotiation
Packaging Details: as per customer request
Delivery Time: usually 2 weeks after confirming
Payment Terms: T/T
Supply Ability: 300 pieces pole per day
Detailed Product Description
Type: Straight Pole, Tensile Pole, Turn Pole Surface Treatment: Hot Dip Galvanized
Thickness: 1mm To 30mm Optical Assembly Of Lighting Fixture: IP 65
Torelance Of Dimenstion: +- 2% Wind Speed: 160km/h, 30m/s
High Light:

electrical power poles

,

electrical transmission poles

69kv Galvanized Steel Utility Power Poles For Power Transmission Line Project



Specification





Minimum yield strength

355 mpa

Minimum ultimate tensile strength

490 mpa

Max ultimate tensile strength

620 mpa

Standard

ISO 9001

Length of per section

Within 14m once forming without slip joint

Welding

We  has past flaw testing.Internal and external double

welding makes the welding

beautiful in shape



Welding Standard :AWS ( American Welding Society ) D 1.1





69kv Galvanized Steel Utility Power Poles For Power Transmission Line Project 0

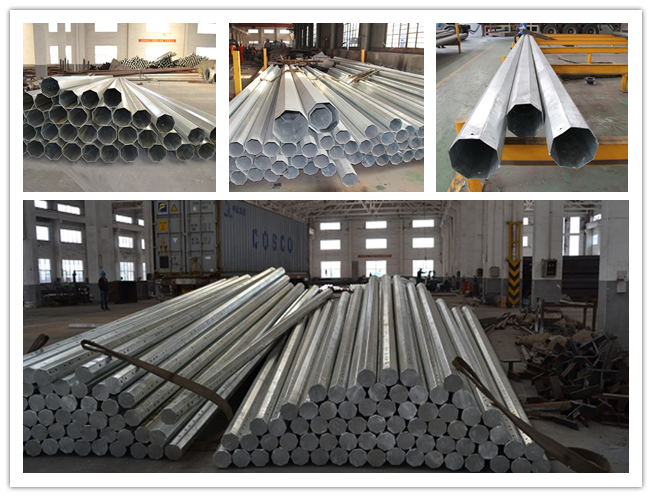

Production Process



Our factory own advance production line, machine including bending calibration machine, hydraulic plate shears machine, shears machine, slitting machine, 208T hydraulic straightener, etc. All the purpose is to produce good quality steel poles.



The fabrication process as cut plate, bending, forming, automatic welding, drill holes, quality check before galvanized, hot dip galvanized and powder coating, finally quality check according by client’s required.



Our Services





1. Reply your inquiry in 24 working hours.



2. Experienced staffs answer all your questions in fluent English.



3. Customized design is available. UEM&UBM are welcomed.



4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.



5. Special discount and protection of sales are provided to our distributor.



6. Professional factory : We are manufacturer, specializing in producing all kinds of steel poles for more than 11 years, competitive with good quantity.



7. Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.



8. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company

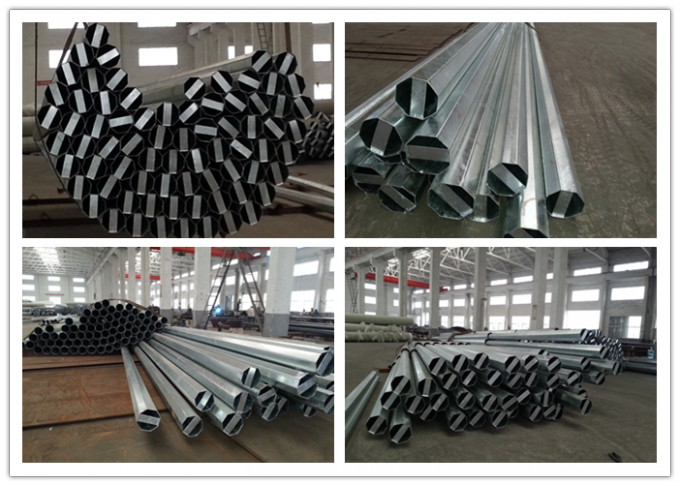

69kv Galvanized Steel Utility Power Poles For Power Transmission Line Project 1



Features:



1.We can supply the product base on client required drawing ,but also can supply the design for any kinds of lamp poles ,electric poles ,street lighting poles, high mast poles ,garden light poles , outdoor lighting ,outdoor lighting poles ,flag poles ,traffic light poles ,lighting ,road lighting pole.

2.Matercial :hot rolled coil from Q235 to Q460 ,ASTM573 GR65, GR50 ,SS400, SS490,ST52-3

3.deal: Hot dip galvanized Following ASTM A 123 or any other stardand by client required.

4.Packing: Plastic bulble , Mat &Straw Bale or following client required

5.Length : within 16meters once forming( single section)

6.Thickness: from 1mm to 22mm

7.Shape: polygonal(6-side,8side,12-side,16side) round tapered.

8.Easy install and maintenance.
