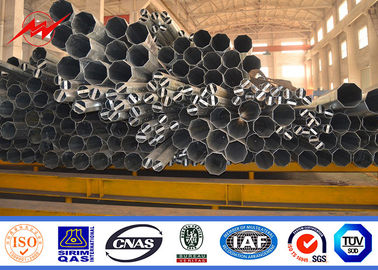

69KV Polygonal / Conical Shape Galvanized Steel Pole With Bitumen 50 Years Life Time

Large Image : 69KV Polygonal / Conical Shape Galvanized Steel Pole With Bitumen 50 Years Life Time

Product Details:

Place of Origin:	China
Brand Name:	MilkyWay
Certification:	ISO9001/BV/
Model Number:	Transmission Steel Power Pole

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiation
Packaging Details:	As customer request
Delivery Time:	20 working days after received your payment
Payment Terms:	T/T, L/C at sight
Supply Ability:	300pcs per day

Contact Now

Detailed Product Description

Product Name:	Galvanized Steel Power Pole	Shape:	Polygonal Or Conical
Material:	Gr50 Gr65	Length Of Per Section:	Within 14 Meter Once Forming
Life Time:	50 Years	Welding Standard:	AWS (American Welding Society ) D 1.1
High Light:	galvanized light pole , steel power poles

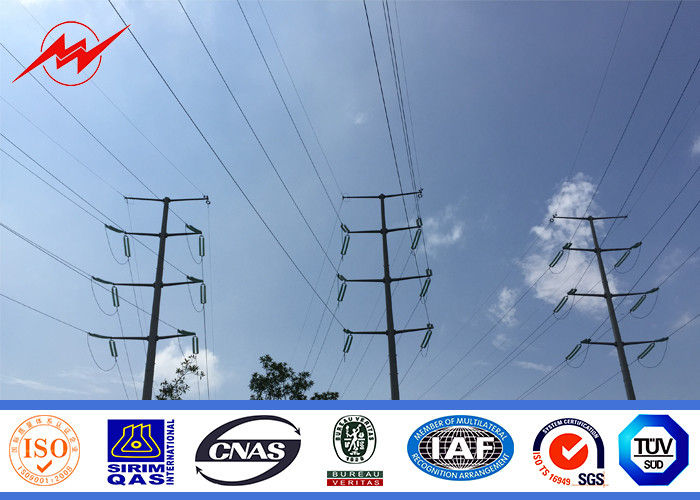

Philippine 69KV 45FT-70FT Electric Steel Power pole with Bitumen

Steel
The material is in accordance with NF EN 10025
Standard and NF EN 10149 Standard,it has the following property.
-Yield Strength=355N/mm2
-Toughness remains the same under 20 degrees below zero.
-Galvanization is in accordance with NFA35503 Standard Class 1.

China GB	America ASTM ASME	Japan JIS	Europen EN	Gemany DIN	England BS	International ISO
16Mn 14MnNd Q345(A.B.C.D.E)	A572MGr.50 A633MGr.C A633MGr.D	SM490A SM490B SM490C	S355JR S355JOS 355J2G3 S355J2G 4S355K2 G3 S355K2G 4S355N S355NL	St52-3	50A 50B 50C 50D 50DD	E355DD E355E Fe510B Fe510D
WH60/Q460 ( C.D.E)	A572MGr.65	SM570	S460N S460NL	StE460	55C 55E	E460C E460D
Q235 ( A.B.C.D) Q275 20 25 30 35 40 45 50 55 50Mn	A283MGr.C A283MGr.D 1020 1025 1030 1035 1040 1045 1050 1055 1053	SS400 SM400( A B) SS490 S20CS22C S25C S28C S30C S33C S35C S38C S40C S43C S45C S48C S50C S53C S55C S58C SWRH52B	S235JR S235JO S235J2G 3 1C22 1C25 1C30 1C35 1C40 1C45 1C50 1C55 2C50	St37-2 St37-3 1C22 1C25 1C30 1C35 1C40 1C45 1C50 1C55 2C50	40A 40B 40C 40D 1C22 1C25 1C30 1C35 1C40 1C45 1C50 1C55 2C50	Fe360 ( A.B.C.D) Fe430A C25E4 C30E4 C35E4 C40E4 C45E4 C50E4 C55E4 SL, SM

Specifications:

Types Length	45ft	50ft	55ft	60ft	65ft	70ft
Types Length	13.75m	15.25m	16.80m	18.30m	19.85m	21.35m
B ( 0°-2°)
Top diameter (mm)	200	200	200	200	200	200
Butt diameter (mm)	345	370	395	415	435	455
Thickness (mm)	6	6	6	6	6	6
E ( 2°-15°)
Top diameter (mm)	200	200	200	200	200	200
Butt diameter (mm)	545	585	625	660	700	740
Thickness (mm)	6	6	6	6	6	6
C ( 15°-30°)
Top diameter (mm)	250	250	250	250	250	250
Butt diameter (mm)	600	645	690	730	770	805
Thickness (mm)	6	6	6	6	6	6
D ( 30°-90°)
Top diameter (mm)	300	300	300	300	300	300
Butt diameter (mm)	680	730	725	765	755	790
Thickness (mm)	6	6	7	7	8	8
HS ( 0°-2°)
Top diameter (mm)	200	200	200	200	200	200
Butt diameter (mm)	340	360	385	400	420	440
Thickness (mm)	6	6	6	6	6	6
HT ( 2°-15°)
Top diameter (mm)	200	200	200	200	200	200
Butt diameter (mm)	485	520	550	580	615	645
Thickness (mm)	6	6	6	6	6	6
3T ( 15°-30°)
Top diameter (mm)	250	250	250	250	250	250
Butt diameter (mm)	520	540	565	595	615	640
Thickness (mm)	6	6	6	6	6	6
3D ( 30°-90°)
Top diameter (mm)	300	300	300	300	300	300
Butt diameter (mm)	585	620	650	680	715	765
Thickness (mm)	6	6	6	6	6	6

Production Process
Raw material test → Cutting →bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting →Recalibration →Packages

Manufacture Tolerance
-Component Length:-25mm to 75mm
-Straightness:2mm/m
-Twisting degree:1°per 3 meters length
-Ovalisation:Maximum is 3%
-The average diameter:+/-0.5%
-Slip length:+/-150mm

The information to inquiry or purchase
-Steel pole height and force
-Cross arm type and length,the position to install in the steel pole
-The method to fix the cross arm(use bolt to connect or use one or two template to weld in the steel pole to install the cross arm)
-Safety factor of the steel pole
-Wind speed
-Type of climbing rung
-Destination port
-Other.

Quality Control
We strictly follow the standard of ISO9001-2008. Quality is in the first place at every stage of production to ensure the product compliance to the specification/standards. Careful inspections are carried out by highly trained inspection engineers during every procedure from raw material stage to finished product and delivery.

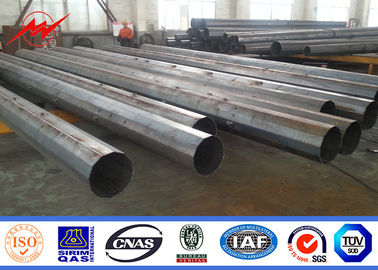

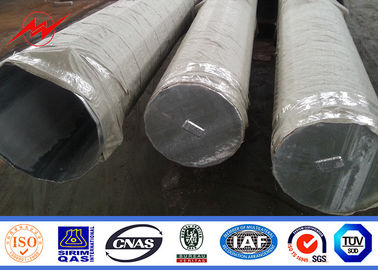

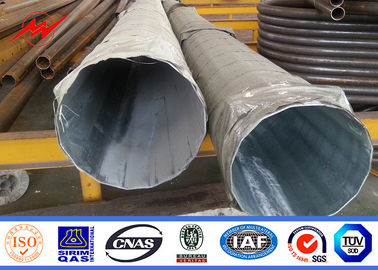

More Photos
