69kv Power Transmission Electric Steel Pole Hot Dip Galvanization Powder Coating

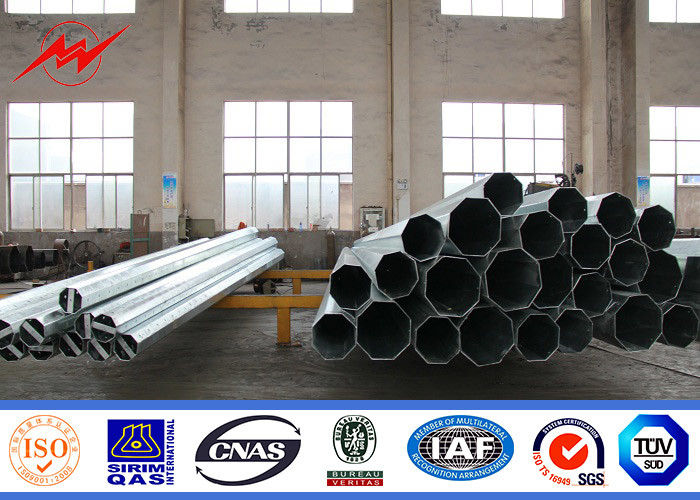

Large Image : 69kv Power Transmission Electric Steel Pole Hot Dip Galvanization Powder Coating

Product Details:

Place of Origin:	China
Brand Name:	Milky Way
Certification:	/BV/ISO
Model Number:	Electric power pole utility power pole power transmission poles power line

Payment & Shipping Terms:

Minimum Order Quantity:	one 40 HQ
Price:	negotiation
Packaging Details:	as per customer request
Delivery Time:	usually 2 weeks after confirming
Payment Terms:	T/T
Supply Ability:	300 pieces pole per day

Contact Now

Detailed Product Description

Power:	10kv~550kv	Type:	Straight Pole, Tensile Pole, Turn Pole
Thickness:	1mm To 30mm	Wind Speed:	160km/h, 30m/s
Tolerance:	+/-2%	Design Load In Kg:	300~ 1000 Kg Applicated To 50cm From The To Pole
High Light:	power transmission electric steel pole , hot dip galvanization electric steel pole , powder coating metal power pole

69KV Electric Power Pole for Power Transmission with Hot Dip Galvanization and Powder Coating

Specification

Material:	Q345, Gr65, S500
Shape of pole:	Round,conical,octagonal,square,mid hinged,polygonal shafts are made of steel sheet that folded into required shape and welded longitudinally by automaticarc welding machine
Groung mounted:	The length buried underground as per customers requirement
Galvanizing:	Hot dip galvanization, average thickness not less than 86um
Powder coating:	Pure polyester powder painting, color is optional

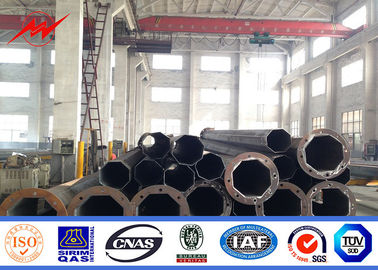

69kv Power Transmission Electric Steel Pole Hot Dip Galvanization Powder Coating 0

Production Process

Our factory own advance production line, machine including bending calibration machine, hydraulic plate shears machine, shears machine, slitting machine, 208T hydraulic straightener, etc. All the purpose is to produce good quality steel poles.

The fabrication process as cut plate, bending, forming, automatic welding, drill holes, quality check before galvanized, hot dip galvanized and powder coating, finally quality check according by client’s required.

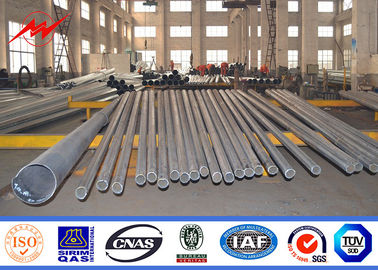

69kv Power Transmission Electric Steel Pole Hot Dip Galvanization Powder Coating 1
