75ft 80ft Flange Steel Utility Pole / High Voltage Lattice Steel Towers Overhead

China 75ft 80ft Flange Steel Utility Pole / High Voltage Lattice Steel Towers Overhead supplier
75ft 80ft Flange Steel Utility Pole / High Voltage Lattice Steel Towers Overhead supplier 75ft 80ft Flange Steel Utility Pole / High Voltage Lattice Steel Towers Overhead supplier 75ft 80ft Flange Steel Utility Pole / High Voltage Lattice Steel Towers Overhead supplier 75ft 80ft Flange Steel Utility Pole / High Voltage Lattice Steel Towers Overhead supplier 75ft 80ft Flange Steel Utility Pole / High Voltage Lattice Steel Towers Overhead supplier

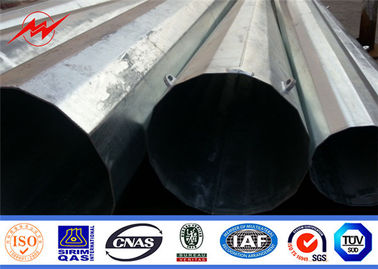

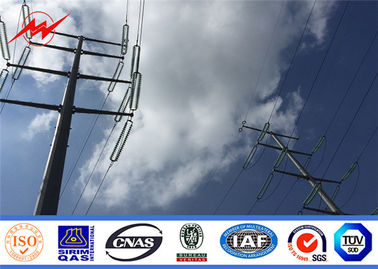

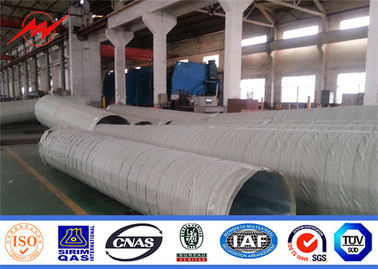

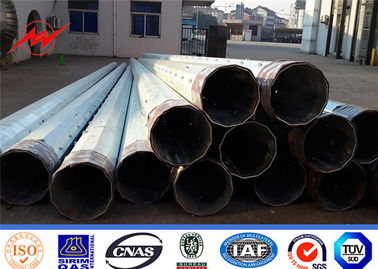

Large Image :  75ft 80ft Flange Steel Utility Pole / High Voltage Lattice Steel Towers Overhead

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/SGS
Model Number: Steel Utility Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
Detailed Product Description
Product Name: Steel Utility Pole Application: Electrical Power Distribution
Galvanization Thickness: Average 86μm Warranty: 15 Years
Surface Treatment: Hot Dip Galvanized Dimenstion Torlance: +- 2%
Standard: ISO

high voltage tower overhead transmission line steel lattice masts 75ft 80ft utility flange pole

 Steel
 The material is in accordance with NF EN 10025
 Standard and NF EN 10149 Standard,it has the following property.
 -Yield Strength=355N/mm2
 -Toughness remains the same under 20 degrees below zero.
 -Galvanization is in accordance with NFA35503 Standard Class 1.





 Specifications:

Torlance of the dimenstion +- 2%
Power 10  KV ~550 KV
Safety Factor

Safety factor for conducting wine : 8
Safety factor for grounding wine : 8

Design Load in Kg 300~ 1000 Kg appliced to 50cm from the to pole
Marks Nane palte through rivert or glue ,engrave ,emboss as per customer requirement
Surface treatment

Hot dip galvanized Following ASTM A 123,
color polyester power or any other standard by client required.

Joint of Poles Insert mode,innerflange mode,face to face joint mode
Design of pole Against earthquake of 8 grade
Wind Speed 160 Km/Hour .  30 m /s
Minimum yield strength 355 mpa
Minimum ultimate tensile strength 490 mpa
Length of per section Within 14m once forming without slip joint
Welding

We has past flaw testing.Internal and external double welding makes
the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1

Thickness 1 mm to 30 mm
Production Process

Rew material test → Cuttingj →Molding or bending →
Welidng (longitudinal )→Dimension verify →Flange welding
→Hole drilling →Calibration → Deburr→Galvanization or
powder coating ,painting →Recalibration →Thread →Packages





 Technical information-Cross Arm



75ft 80ft Flange Steel Utility Pole / High Voltage Lattice Steel Towers Overhead

 The above listed is the most frequently used design,and is made from angel steel.And the cross arm will  be fixed to the pole shaft connecting by bolts through the pre-drilling holes on both the cross arms and  the pole shaft.If you have any other requirements on the design,material and connecting method for  cross arm,pls contact us.



 Standard Accessory
 -Top plate
 -Base plate
 -Bottom strip
 -Standard hole
 -Climbing rung
 -Anchor bolt
 -Bitumen protection
 -Painted marking
 -Removable ladder



 More Pitures:

 75ft 80ft Flange Steel Utility Pole / High Voltage Lattice Steel Towers Overhead



 Company Introduction:

 JiangSu Milky Way Steel Poles Co., Ltd.was established in 1988, is located in Yixing City, Jiangsu  Province, Wan Shi Town, covering an area of 35,000 square meters, annual output value reached 200  million . We have 20 years experience in design and  production. Our main products are power pole,  communication towers, street lighting poles, steel bracket and so on. The company has strong technical  force, advanced production equipment, perfect quality management system, product quality has reached  international advanced level.

 After 20 years of development, our company products are exported to overseas. Pakistan, Germany,  Nigeria, Singapore, New Zealand, India, the Philippines, Australia and so on, we have shared a broad  market.Our products are well knowed. Now the capataity of Exports has taken 40% of company sales,  which made us become one of the leading export enterprises in china.



 75ft 80ft Flange Steel Utility Pole / High Voltage Lattice Steel Towers Overhead
