75FT Philippines NGCP Standard Galvanized Steel Pole With 4-5mm Thickenss

China 75FT Philippines NGCP Standard Galvanized Steel Pole With 4-5mm Thickenss supplier
75FT Philippines NGCP Standard Galvanized Steel Pole With 4-5mm Thickenss supplier 75FT Philippines NGCP Standard Galvanized Steel Pole With 4-5mm Thickenss supplier 75FT Philippines NGCP Standard Galvanized Steel Pole With 4-5mm Thickenss supplier 75FT Philippines NGCP Standard Galvanized Steel Pole With 4-5mm Thickenss supplier

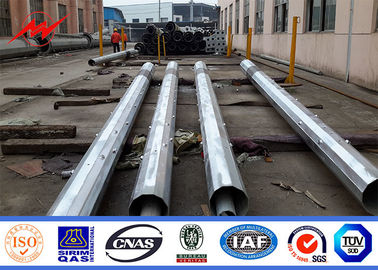

Large Image :  75FT Philippines NGCP Standard Galvanized Steel Pole With 4-5mm Thickenss

Product Details:

Place of Origin: Jiangsu
Brand Name: milkyway
Certification: ISO9001:2015
Model Number: 75FT 2 segements

Payment & Shipping Terms:

Minimum Order Quantity: one container
Price: USD 130-180/pieces
Packaging Details: Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pics will calculation base on the client actually specification and data.
Delivery Time: always 2 weeks
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 pieces per month
Detailed Product Description
Name: 75FT 2 Segements Philippines NGCP Standard Electric Galvanized Pole Steel Pole Design: 75FT 2 Segements Philippines NGCP Standard Electric Galvanized Pole Steel Pole
Height: 90FT Thickenss: 4-5mm
Design Load: 1280kg Port: Always Shanghai
Galvanization Standard: ASTM A123 Average Coating Thickness 86microns Length Of Per Section: Within 14m Once Forming Without Slip Joint
Welding: AWS D1.1 Penetration :100%
High Light:

galvanised steel poles

,

steel transmission poles



90ft Philippines NGCP standard electric galvanized pole steel pole

Description

1.Top diameter:190mm

2.Bottom diameter:350mm

3.Thickness:4mm 5mm

4.Material:Low alloy steel,yield strength not less than 345mpa(GB/T1591-2008standard)

                C≤0.20,Mn≤1.70,Si≤0.50,P≤0.50,S≤0.0345

5.Marks:Nane plate through rivert or glue ,engrave ,emboss as per customer requirement

6.Welding :We has past flaw testing.Internal and external double welding makes the welding beautiful in shape
                  Welding Standard :AWS ( American Welding Society ) D 1.1

                  Penetration :100%

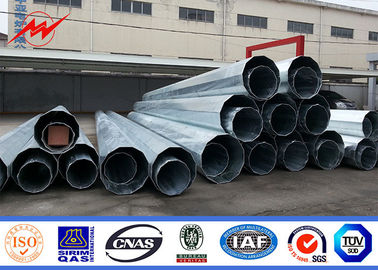

75FT Philippines NGCP Standard Galvanized Steel Pole With 4-5mm Thickenss 0





Advantage

Excellent performance:

Because of the long and thin shape,closed polygonal section and apply of high strength steel material,these steel poles have excellent durability.they can withstand the extreme condition,such as the frost climate,unbalanced loads, or breaking of wire.



Installation

The designing weight of the steel poles are usually relatively light ,and is good for the operation,transportation,assemble and installation.



Environment

Since the long and thin straight line shape.the steel pole from Milkyway Steel Poles are easily intergrated into the landscape.At the protected areas(mountains),the installation of steel pole will not influence the aesthetic solution of the scenic spot.



Maintenance

The hot dip galvanization trearment can increase the service life of the steel polewithout the environmental pollution and no need for other daily maintance.The following described types are specially designed for Africa Market which can meet the regulated height and load standard of France electricity power company.



Production

our steel pole is bend to form to the polygonal(conical) section firstly.Then it is welded by the automatic submerged-arc welding machine.Thirdly the top cap,strip and base plate will be welded to the pole.And finally other accessories (support brackets ,ladder support,etc.)will be welded to the pole shaft.



Galvanization

The galvanization of the steel pole are under strict control.galvanization is achieved by immersion in a molten zinc bath(450°) after pre-treated(dipping)

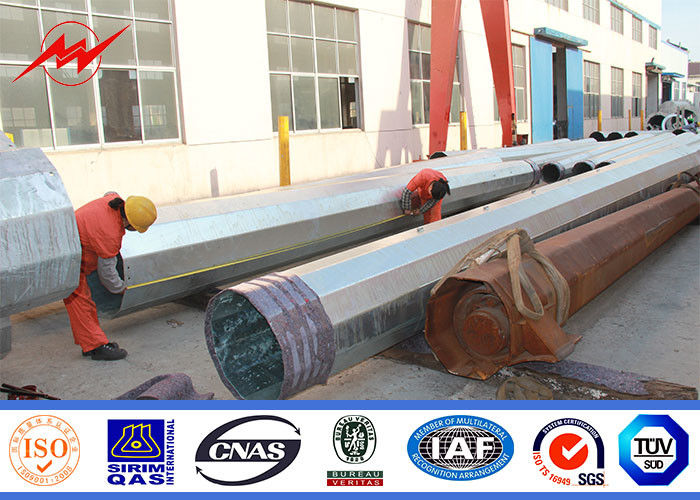

75FT Philippines NGCP Standard Galvanized Steel Pole With 4-5mm Thickenss 1

Installation


1.Remove all the equipment on the pole during Assembly.
2.Circle a sling around th epole shaft of each section.
3.Fix the sling on top section to one pulley block.
4.The sling on the bottom section is tightly fixed and fixed at the center of gravity.
5.Make the steel pole vertical by tighten the sling of the top section.
6Fix the steel pole.
7.Remove the sling.

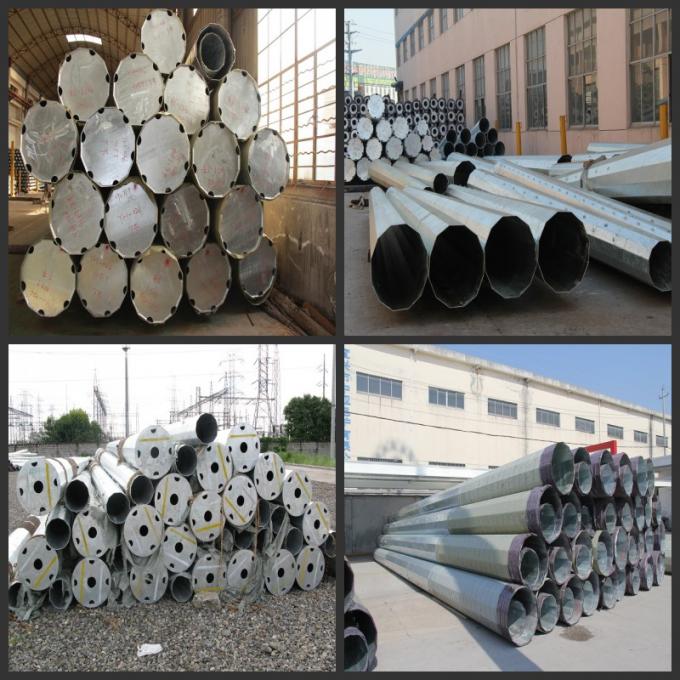

75FT Philippines NGCP Standard Galvanized Steel Pole With 4-5mm Thickenss 2

Our steel pole, steel poles , steel power poles ,power steel poles, electrical poles, electrical power poles, power poles, power distribution equipment poles , electric power transimission &distribution steel poles ,hot-dip-galvanized steel poles ,lamp poles ,road poles, streeting lighting poles, street lamp poles ,solar street lamps steel poles ,high mast lamp poles,road lamp poles, the steel street lamp poles, hot-dip-galvanized steel lighting ,outdoor lighting ,outdoor lamps ,street lighting poles ,steel post ,street poles, lamp parts ,lighting fixture ,lighting poles ,lighting equipment ,lighting decoration ,lighting product , street lighting body, high mast lighting steel poles &tower,electric poles, round&square street lighting steel poles with double arm or single arm . Stainless steel poles, Flag mast stainless steel pole, aluminum street light poles, traffic lighting steel poles, telecom tower poles , baseplate , bearing plate, base flanges , are made by hot-roll steel coil ,the process as cut plate, bending ,forming,automatic welding,drill holes ,quality check before galvanized, hot dip galvanized or powder coating , final quality check according by client required.
