8Ft Slip Joint Q235 Utility Power Poles , Galvanized Electricity Steel Metal Utility Poles

China 8Ft Slip Joint Q235 Utility Power Poles , Galvanized Electricity Steel Metal Utility Poles supplier
8Ft Slip Joint Q235 Utility Power Poles , Galvanized Electricity Steel Metal Utility Poles supplier 8Ft Slip Joint Q235 Utility Power Poles , Galvanized Electricity Steel Metal Utility Poles supplier 8Ft Slip Joint Q235 Utility Power Poles , Galvanized Electricity Steel Metal Utility Poles supplier 8Ft Slip Joint Q235 Utility Power Poles , Galvanized Electricity Steel Metal Utility Poles supplier 8Ft Slip Joint Q235 Utility Power Poles , Galvanized Electricity Steel Metal Utility Poles supplier

Large Image :  8Ft Slip Joint Q235 Utility Power Poles , Galvanized Electricity Steel Metal Utility Poles

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/SGS
Model Number: Steel Utility Poles

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
Detailed Product Description
Product Name: Steel Utility Poles Application: Electrical Power Transmission
Torlance Of Dimenstion: +-2% Certificate: ISO9001/BV/SGS
Power Capacity: 10kV To 220kV Shape: Polygonal

8Ft Slip Joint Q235 Utility Power Poles , Galvanized Electricity Steel Metal Utility Poles





 Specifications:



Height From 9 meter to 100 meter
Suit for Electric Power Transmission and Distribution
Shape Polygonal or Conical
Material

Normally Q345B/A572, Minimum Yield Strength ≥ 345 N/mm²

Q235B/A36, Minimum Yield Strength ≥ 235 N/mm²

As well as Hot rolled coil from ASTM A572 GR65, GR50, SS400

Power Capacity 10kV to 220kV
Tolerance of the dimension According to client’s requirement.
Surface treatment Hot dip galvanized Following ASTM A 123, or any other standard by client required.
Joint of Poles Slip joint, flanged connected
Standard ISO 9001:2008
Length of per section Within 14 meter once forming
Welding Standard AWS (American Welding Society ) D 1.1
Thickness 1 mm to 36mm
Production Process Raw material test → Cutting →bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting →Recalibration →Packages

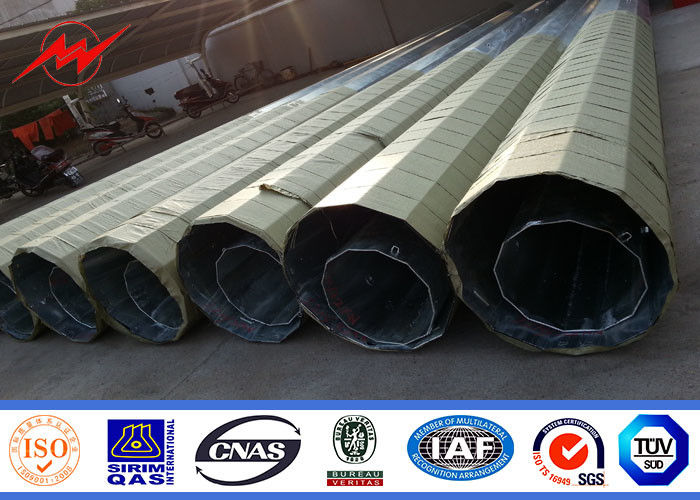

Packages Packing with plastic paper or according to client’s request.





Material
Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52-

8Ft Slip Joint Q235 Utility Power Poles , Galvanized Electricity Steel Metal Utility Poles



 Production Process
 Raw material test → Cutting →bending →Welding (longitudinal )→Dimension verify →Flange welding  →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting  →Recalibration →Packages

 8Ft Slip Joint Q235 Utility Power Poles , Galvanized Electricity Steel Metal Utility Poles





 Galvanization
 Standard:NFA91121
 Average thickness of the galvanization:Not less than 86μm.

 8Ft Slip Joint Q235 Utility Power Poles , Galvanized Electricity Steel Metal Utility Poles



 Installation
 -Remove all the equipment on the pole during Assembly.
 -Circle a sling around th epole shaft of each section.
 -Fix the sling on top section to one pulley block.
 -The sling on the bottom section is tightly fixed and fixed at the center of gravity.
 -Make the steel pole vertical by tighten the sling of the top section.
 -Fix the steel pole.
 -Remove the sling.





 Company Introduction:
 Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of  the largest sea port of China ,Shanghai,Port .
 Our Company has 24 years experience on producing the steel poles including the transmission power  pole,street light pole,high mast pole and so on.
 We exported to oversea countries since 1991 and our products have been delivered to more than 70  countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa  and so on.
 We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the  high mast pole for Sochi Winter Olympic Game and so on.
