Product Details:
Payment & Shipping Terms:
|
| Product Name: | Electric Power Pole | Application: | Power Transmission |
|---|---|---|---|
| Surface Treatment: | Hot Dip Galvanization Power Coating | Dimension Torlance: | +- 2% |
| Galvanization Standard: | ASTM A 123 | Liftingtime: | 50 Years |
| Standard: | ISO | Wind Speed: | 30m/s |
| High Light: | steel power pole,transmission line poles |
||

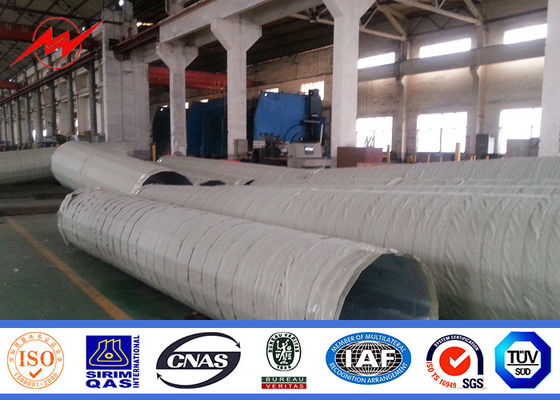

8M 5KN Gr65 Material 3mm Electric Power Pole for 110KV Power Transmission
Steel
The material is in accordance with NF EN 10025
Standard and NF EN 10149 Standard,it has the following property.
-Yield Strength=355N/mm2
-Toughness remains the same under 20 degrees below zero.
-Galvanization is in accordance with NFA35503 Standard Class 1.
Galvanization
Standard:NFA91121
Average thickness of the galvanization:Not less than 70μm.
Manufacture Tolerance
-Component Length:-25mm to 75mm
-Straightness:2mm/m
-Twisting degree:1°per 3 meters length
-Ovalisation:Maximum is 3%
-The average diameter:+/-0.5%
-Slip length:+/-150mm
Specifications:
|
Shape |
Conoid ,Multi-pyramidal,Columniform,polygonal |
|
Material |
Usually Q345B/A572,minimum yield strength>=345n/mm2 |
|
Power |
10 KV ~550 KV |
|
Safety Factor |
Safety factor for conducting wine : 8 |
|
Design Load in Kg |
300~ 1000 Kg applied to 50cm from the to pole |
|
Marks |
Name plate through rivert or glue ,engrave ,emboss as per customer requirement |
|
Surface treatment |
Hot dip galvanized Following ASTM A 123, |
|
Joint of Poles |
Insert mode,inner flange mode,face to face joint mode |
|
Design of pole |
Against earthquake of 8 grade |
|
Wind Speed |
160 Km/Hour . 30 m /s |
|
Minimum yield strength |
355 mpa |
|
Minimum ultimate tensile strength |
490 mpa |
|
Max ultimate tensile strength |
620 mpa |
|
Length of per section |
Within 14m once forming without slip joint |
The information to inquiry or purchase
-Steel pole height and force
-Cross arm type and length,the position to install in the steel pole
-The method to fix the cross arm(use bolt to connect or use one or two template to weld in the steel pole to install the cross arm)
-Safety factor of the steel pole
-Wind speed
-Type of climbing rung
-Destination port
-Other.
More Photos:
Company Introduction:
Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.
We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.
We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the high mast pole for Sochi Winter Olympic Game and so on.
