9.4m 11.6m 13.8m 693.23daN electric steel pole factory price

China 9.4m 11.6m 13.8m 693.23daN electric steel pole factory price supplier
9.4m 11.6m 13.8m 693.23daN electric steel pole factory price supplier 9.4m 11.6m 13.8m 693.23daN electric steel pole factory price supplier 9.4m 11.6m 13.8m 693.23daN electric steel pole factory price supplier 9.4m 11.6m 13.8m 693.23daN electric steel pole factory price supplier

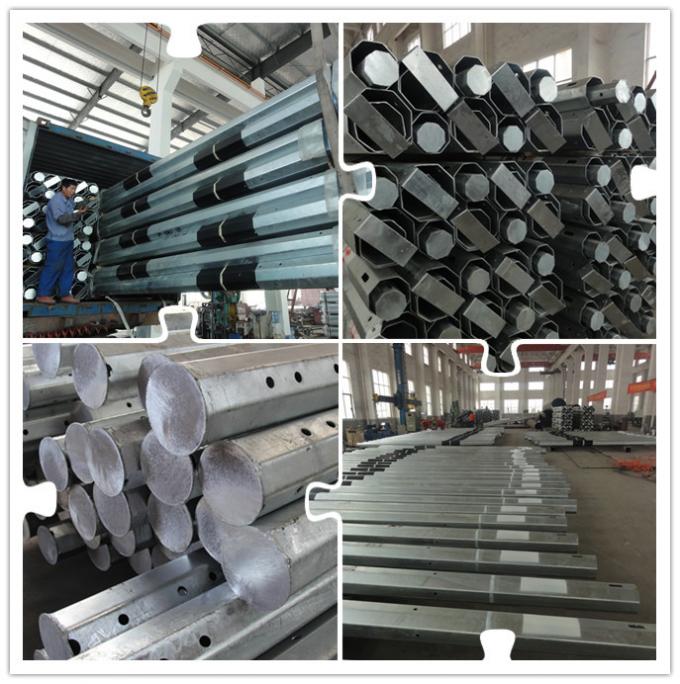

Large Image :  9.4m 11.6m 13.8m 693.23daN electric steel pole factory price

Product Details:

Place of Origin: Jiangsu
Brand Name: milkyway
Certification: ISO9001:2015
Model Number: 9.4m 11.6m 13.8m 693.23daN

Payment & Shipping Terms:

Minimum Order Quantity: one container
Price: USD 130-180/pieces
Packaging Details: Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pics will calculation base on the client actually specification and data.
Delivery Time: always 2 weeks
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 pieces per month
Contact Now
Detailed Product Description
Name: 9.4m 11.6m 13.8m 693.23daN Electric Steel Pole Factory Price Design: 9.4m 11.6m 13.8m 693.23daN
Height: 9.4m 11.6m 13.8m Thickenss: 3mm
Design Load: 693dan Port: Always Shanghai
Galvanization Standard: ASTM A123 Average Coating Thickness 86microns Welding: AWS D1.1 Penetration :100%
Safety Factor: Not Less Than 1.0 Material: Yield Strength Not Less Than 500mpa

9.4m 11.6m 13.8m 693.23daN electric steel pole factory price


1.Top diameter:120mm

2.Bottom diameter:240mm/260mm/302mm


4.Material:Low alloy steel,yield strength not less than 500mpa

5.Marks:Nane plate through rivert or glue ,engrave ,emboss as per customer requirement

6.Welding :We has past flaw testing.Internal and external double welding makes the welding beautiful in shape
                  Welding Standard :AWS ( American Welding Society ) D 1.1

                  Penetration :100%

7.Design:9.4m-one section 11.6m-one  section 13.8m-two section

9.4m 11.6m 13.8m 693.23daN electric steel pole factory price

slip joint assembly

1.steel poles are assembled by a simple and effective method to connect different sections together is slip joint.

2.The assembly can make different sections together into one piece.The following conditions need to be achieved before install the pole:

(1)Slip joint length need to reach rated(standard) length L,amd the tolerance is +-150mm.

(2)Apply a force F st the connection position to make the top and lower solidly connected to prevent the silde.

The recommend F is 1O tones,the pulling force for the pulley block is 5 tonnes.

9.4m 11.6m 13.8m 693.23daN electric steel pole factory price




Excellent performance:

Because of the long and thin shape,closed polygonal section and apply of high strength steel material,these steel poles have excellent durability.they can withstand the extreme condition,such as the frost climate,unbalanced loads, or breaking of wire.



The designing weight of the steel poles are usually relatively light ,and is good for the operation,transportation,assemble and installation.



Since the long and thin straight line shape.the steel pole from Milkyway Steel Poles are easily intergrated into the landscape.At the protected areas(mountains),the installation of steel pole will not influence the aesthetic solution of the scenic spot.



The hot dip galvanization trearment can increase the service life of the steel polewithout the environmental pollution and no need for other daily maintance.The following described types are specially designed for Africa Market which can meet the regulated height and load standard of France electricity power company.



our steel pole is bend to form to the polygonal(conical) section firstly.Then it is welded by the automatic submerged-arc welding machine.Thirdly the top cap,strip and base plate will be welded to the pole.And finally other accessories (support brackets ,ladder support,etc.)will be welded to the pole shaft.



The galvanization of the steel pole are under strict control.galvanization is achieved by immersion in a molten zinc bath(450°) after pre-treated(dipping)

9.4m 11.6m 13.8m 693.23daN electric steel pole factory price



Q1. How can I get a price of needed pole?

A: 1. Please give the exactly dimensions such as height, thickness, material, top and bottom dia. We can according to your specification give you a similar price.

2. You can send us a drawing; we can according to your drawing give you one price.

Q2. I am a small wholesaler, do you accept small order?
A: It's no problem if you are a small wholesaler; we would like to grow up with you together.
Q3. I am a designer; Can you help me to produce the sample which we designed?
A: Our mission is to help customers to be successful. So it's welcome if we can help you solve problem and make your design come true.
Q4. We want be your agent of our area. How to apply for this?
A: Please send your idea and your profile to delia @yin-he.com
Q5. Tell me about your company?

A:Jiangsu Milky Way Steel Poles Co.,Ltd , we have been a manufacturer and exporter of all kinds of steel poles, including street lighting pole,

power transmission pole, floodlighting pole for large squares and other steel products since 1991.Our poles have been exported to more than 70 countries and areas.

Q6. Do you have some special policies for Brand company?

A:Yes, we have some special support for the company who has own brand but also in our VIP customers list. Please send us your selling

data of last year. So we can see how to support you for your products in your market.

Q7. Can you make Door to Door service? Because i don't know how to do customs clearance.

A:Yes. We can make Door to Door service to help you save much time of shipping. Also we have big discount with shipping company because

we have do much of this every day. So it will save your time also money.


Our steel pole, steel poles , steel power poles ,power steel poles, electrical poles, electrical power poles, power poles, power distribution equipment poles , electric power transimission &distribution steel poles ,hot-dip-galvanized steel poles ,lamp poles ,road poles, streeting lighting poles, street lamp poles ,solar street lamps steel poles ,high mast lamp poles,road lamp poles, the steel street lamp poles, hot-dip-galvanized steel lighting ,outdoor lighting ,outdoor lamps ,street lighting poles ,steel post ,street poles, lamp parts ,lighting fixture ,lighting poles ,lighting equipment ,lighting decoration ,lighting product , street lighting body, high mast lighting steel poles &tower,electric poles, round&square street lighting steel poles with double arm or single arm . Stainless steel poles, Flag mast stainless steel pole, aluminum street light poles, traffic lighting steel poles, telecom tower poles , baseplate , bearing plate, base flanges , are made by hot-roll steel coil ,the process as cut plate, bending ,forming,automatic welding,drill holes ,quality check before galvanized, hot dip galvanized or powder coating , final quality check according by client required.
