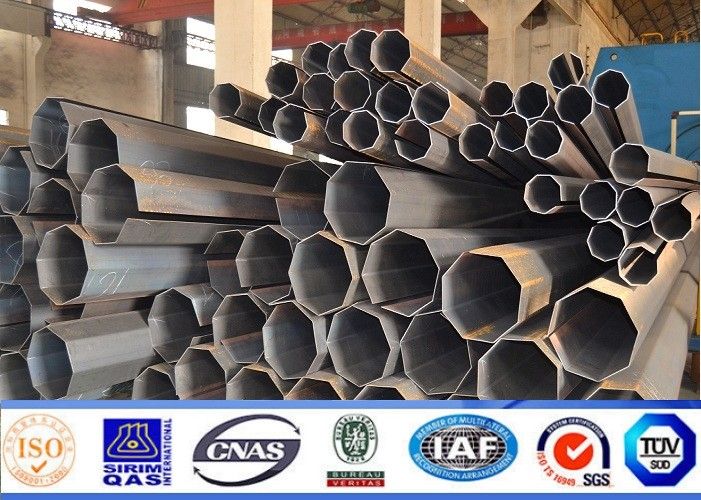

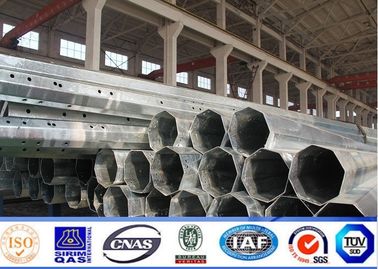

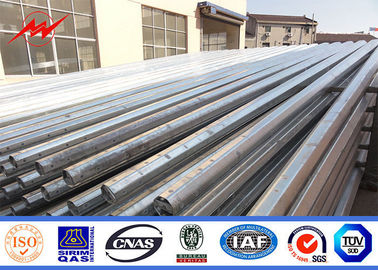

9m 12m Q235 Polygonal Pole Bitumen For Electrical Transmission Line

Large Image : 9m 12m Q235 Polygonal Pole Bitumen For Electrical Transmission Line

Product Details:

Place of Origin:	Jiangsu,China
Brand Name:	Milky Way
Certification:	ISO, BV,
Model Number:	Steel Power Pole

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiation
Packaging Details:	As customer request
Delivery Time:	20 working days after received your payment
Payment Terms:	L/C, T/T
Supply Ability:	300pcs per day

Contact Now

Detailed Product Description

Material:	Q235 Q345 Yield Strength Not Less Than 235/345mpa	Shape:	Polygonal
Power:	10kv~550kv	Suit For:	Electricity Distribution
Welding Standard:	AWS D 1.1	Torlance Of Dimenstion:	+- 2%
High Light:	electric utility poles , steel utility poles , q235 polygonal pole

Specification:

`Application`	`Electricity distribution`
`Shape`	Octagonal
`Material`	`Q235B/A36,minimum yield strength>=235n/mm2`
Torlance of dimenstion	+- 2%
Power	10 KV ~550 KV
Safety Factor	Safety factor for conducting wine : 8 Safety factor for grounding wine : 8
Design Load in Kg	300~ 1000 Kg appliced to 50cm from the to pole
Surface treatmen	Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
Joint of Poles	Insert mode,innerflange mode,face to face joint mode .
Wind Speed	160 Km/Hour . 30 m /s
Standard	ISO 9001
Welding	We has past flaw testing.Internal and external double welding makes the welding beautiful in shape Welding Standard :AWS ( American Welding Society ) D 1.1
Galvanization:	Hot dip galvanization with thickness of 80-100µm average in accordance with Chinese standardGB/T 13912-2002 or American standard ASTM A123, ISO: 2626-1985.
Thickness	1 mm to 30 mm
Production Process	Rew material test → Cuttingj →Molding or bending →Welidng (longitudinal)→Dimension verify→Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting→Recalibration →Thread →Packages
Packages	Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data.

9m 12m Q235 Polygonal Pole Bitumen For Electrical Transmission Line 0

Certification:

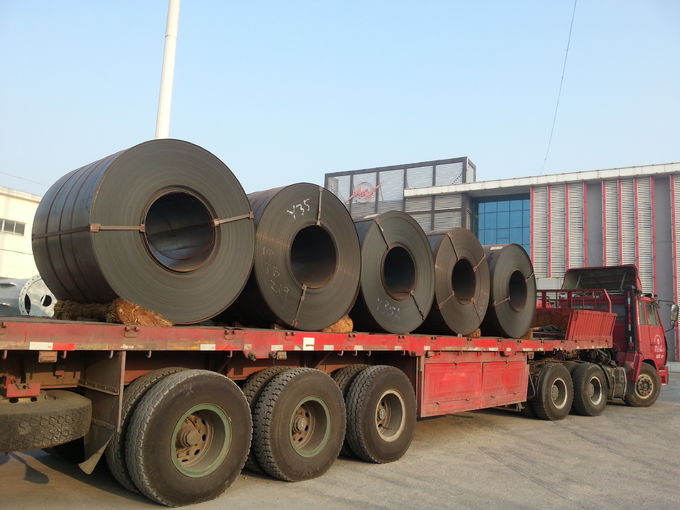

1. Raw Material

When purchasing the raw material (steel plate), on sheet of mill certificate from mill factory must be enclosed. When the raw material arrives at the warehouse, the quality department must take the elongation test and the chemical composition analysis to make sure the raw material have meet all the standard that the needed before production.

9m 12m Q235 Polygonal Pole Bitumen For Electrical Transmission Line 2

2. Cutting

Cutting the raw material that have meet all the standard required into different length and width. CNC laser cutting is used to direct the material or the laser beam generated. A typical commercial laser for cutting materials would involve a motion control system to follow a CNC or G-code of the pattern to be cut onto the material. The focused laser beam is directed at the material, which then either melts, burns, vaporizes away, or is blown away by a jet of gas, leaving an edge with a high-quality surface finish.

3. Molding

Forming the cut steel plate into the shape (circular or polygonal or other shape ) that as per specified in the drawing. This invention relates to forming devices and more particularly to devices or machines for bending longitudinally rolled sections or strips of metal stock to desired curvilinear shapes.

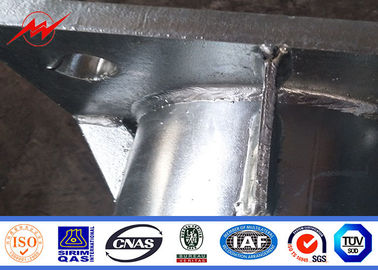

4. Welding

After molding, weld the steel plate together. Usually it is longitudinal welds. It adopts A.C.inverter control, with functions of stable running and fast traveling speed; The seam-tracking arc-guide mechanism is three-spindle system to guarantee the alignment without aberrancy; The main frame and welding machine are intergrated control, with flux auto-recovering system and it is easy to operate with high efficiency.

5. Galvanization

All poles internally and externally are to be hot-dip galvanized in accordance with requirement mentioned in the relevant drawing or specification Galvanization standard:IS2629-1985 ,BS729-1971

9m 12m Q235 Polygonal Pole Bitumen For Electrical Transmission Line 3

Our Company:

Established in 1991,Jiangsu Milky Way Steel Poles is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port . Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on.
We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV transmission poels ,our products have been deliveried to more than 70 contries and areas ,including America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia , Dominica, Congo, Togo and Guniea so on.

9m 12m Q235 Polygonal Pole Bitumen For Electrical Transmission Line 4

Service:

1. Reply your inquiry in 24 working hours. 2. Experienced staffs answer all your questions in fluent English.
3. Customized design is available. UEM&UBM are welcomed.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory : We are manufacturer, specializing in producing all kinds of steel poles for more than 20 years, competitive with good quantity.
7 Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.
8. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.
