9M 440DAN Dan Octagonal Utility Power Poles Hot Dip Galvanized Power Distribution Poles

China 9M 440DAN Dan Octagonal Utility Power Poles Hot Dip Galvanized Power Distribution Poles supplier
9M 440DAN Dan Octagonal Utility Power Poles Hot Dip Galvanized Power Distribution Poles supplier 9M 440DAN Dan Octagonal Utility Power Poles Hot Dip Galvanized Power Distribution Poles supplier 9M 440DAN Dan Octagonal Utility Power Poles Hot Dip Galvanized Power Distribution Poles supplier 9M 440DAN Dan Octagonal Utility Power Poles Hot Dip Galvanized Power Distribution Poles supplier 9M 440DAN Dan Octagonal Utility Power Poles Hot Dip Galvanized Power Distribution Poles supplier

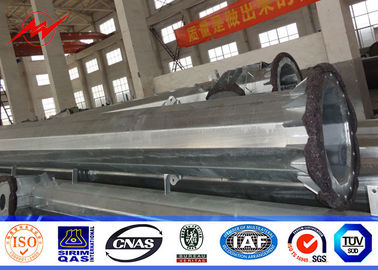

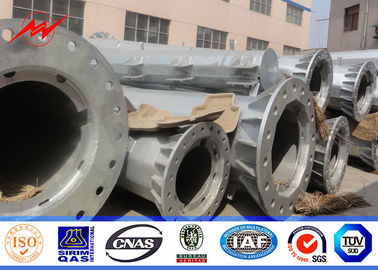

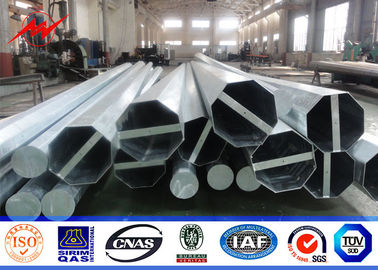

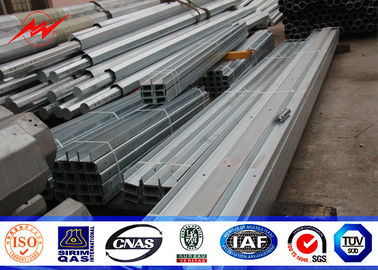

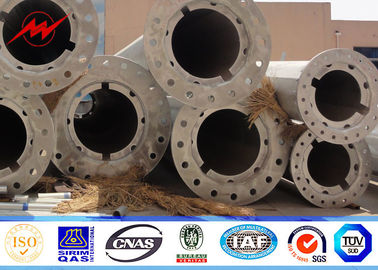

Large Image :  9M 440DAN Dan Octagonal Utility Power Poles Hot Dip Galvanized Power Distribution Poles

Product Details:

Place of Origin: China
Brand Name: Milky Way
Certification: ISO, BV, SGS
Model Number: 12m 800Dan Utility Power Poles For Electrical Distribution Line

Payment & Shipping Terms:

Minimum Order Quantity: one 40 HQ
Price: negotiation
Packaging Details: as per customer request
Delivery Time: usually 2 weeks after confirming
Payment Terms: T/T
Supply Ability: 300 pieces pole per day
Contact Now
Detailed Product Description
Surface Treatment: Hot Dip Galvanized Type: Straight Pole, Tensile Pole, Turn Pole
Thickness: 1mm To 30mm Power: 10kv~550kv
Suit For: Electricity Distribution Length Of Per Section: Within 14m Once Forming Without Slip Joint



9M 440DAN Dan Octagonal Electrical Utility Power Poles , Hot Dip Galvanized Power Distribution Poles





Specification



Material

Usually   Q345B/A572,minimum yield strength>=345n/mm2
               Q235B/A36,minimum yield strength>=235n/mm2

As well as Hot rolled coil from Q460 ,ASTM573 GR65,

 GR50 ,SS400,
SS490, to ST52-

Safety Factor

Safety factor for conducting wine : 8
Safety factor for grounding wine : 8

Design Load in Kg

300~ 1000 Kg appliced to 50cm from the to pole

Marks

Nane palte through rivert or glue ,engrave ,emboss as per

 customer

requirement

Joint of Poles

Insert mode,innerflange mode,face to face joint mode .


Minimum yield strength

355 mpa

Minimum ultimate tensile strength

490 mpa

Max ultimate tensile strength

620 mpa

Length of per section

Within 14m once forming without slip joint

Welding

We  has past flaw testing.Internal and external double welding
makes the welding beautiful in shape

Welding Standard :AWS ( American Welding Society ) D 1.1


Production Process

Rew material test → Cuttingj →Molding or bending →Welidng

(longitudinal )
→Dimension verify →Flange welding →Hole drilling →Calibration

→ Deburr
→Galvanization or powder coating ,painting →Recalibration →

Thread
→Packages

Packages

Our poles as normal cover by Mat or straw bale at the top

and bottom ,
anyway also can following by client required , each 40HC or

OT can loading
how many pcs will calculation base on the client actually

specification and data.




9M 440DAN Dan Octagonal Utility Power Poles Hot Dip Galvanized Power Distribution Poles



Features



1. We can supply the product base on client required drawing ,but also can supply the design for any kinds of lamp poles ,electric poles ,street lighting poles, high mast poles ,garden light poles , outdoor lighting ,outdoor lighting poles ,flag poles ,traffic light poles ,lighting ,road lighting pole.

2. Matercial :hot rolled coil from Q235 to Q460 ,ASTM573 GR65, GR50 ,SS400, SS490,ST52-3

3. deal: Hot dip galvanized Following ASTM A 123 or any other stardand by client required.

4. Packing: Plastic bulble , Mat &Straw Bale or following client required

5. Length : within 16meters once forming( single section)

6. Thickness: from 1mm to 22mm

7. Shape: polygonal(6-side,8side,12-side,16side) round tapered.

8. Easy install and maintenance.



9M 440DAN Dan Octagonal Utility Power Poles Hot Dip Galvanized Power Distribution Poles



The lamp poles, electrical poles, power poles, transmission poles, road lamp poles, street lighting poles, street lamp pole , outdoor lighting pole,outdoor light pole,street lighting ,lighting pole , lighting , road lighting pole , road light pole ,road lamp pole ,steel pole, light pole, lighting pole ,street pole ,road pole,poles ,high mast poles, mast pole and traffic single pole are made by hot –roll coil , the material can be Q235 ,Q345,Q460,ASTM A 572 GR65 ,GR65, SS400 ,SS490,ST52-3 or any other client required , the process as cut plate, bending ,forming ,automatic welding ,drill holes ,quality check before galvanized ,hot dip galvanized or powder coating ,final quality check according by client required.



9M 440DAN Dan Octagonal Utility Power Poles Hot Dip Galvanized Power Distribution Poles
