Anticorrosive 10m LED Solar Galvanized Street Light Pole with 2 Cross Arms

Certification
Good quality Electrical Power Pole for sales
Good quality Electrical Power Pole for sales
Dear Sirs, Hereby we confirm that JiangSu MilkyWay steel poles co., ltd is our partner for several years. Since that time this company has shown itself as reliable supplier of qualitative products.We also would like to note that they provide top level service and all kinds of support.We plan to continue our fruitful cooperation co-operation for many years more.

—— Abacus

We do hereby certify the 69 KV transmmision line steel pole(from 25ft to 90 ft ) manufacuterd by Jiangsu Milky Way Steel Poles Co., Ltd since 2010.We are satisfied with their quality,service and the ways and attention they showed toward our order.

—— National Electricity Company

I'm Online Chat Now

Anticorrosive 10m LED Solar Galvanized Street Light Pole with 2 Cross Arms

China Anticorrosive 10m LED Solar Galvanized Street Light Pole with 2 Cross Arms supplier
Anticorrosive 10m LED Solar Galvanized Street Light Pole with 2 Cross Arms supplier Anticorrosive 10m LED Solar Galvanized Street Light Pole with 2 Cross Arms supplier Anticorrosive 10m LED Solar Galvanized Street Light Pole with 2 Cross Arms supplier Anticorrosive 10m LED Solar Galvanized Street Light Pole with 2 Cross Arms supplier

Large Image :  Anticorrosive 10m LED Solar Galvanized Street Light Pole with 2 Cross Arms

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/SGS
Model Number: Galvanized Steel Poles

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
Detailed Product Description
Product Name: Galvanized Steel Poles Welding Standard: AWS D 1.1
Material: Q345 Torlance Of The Dimenstion : +- 2%
Warranty: 15 Years Wall Thickness: 2.5mm to 20mm

 10m LED Solar Galvanized Steel Poles with 2 Cross Arms for Highway Lighting





 Descripition of material:


 1. Poles are made by the high-quality metal plants,which were molded into the multi-row cone-  shaped vertical steel barwith hot galvanized anti-corrosion treatment
 2. Light plate frame is made by high-quality stainless steel
 3. Fastened bolts and nuts of stainless steel





 Specifications:



  Material:

Hot rolled steel, Q235,Q345,S235,S355,SS400,Gr 50

Yield strength of Material:

Minimum yield strength>=235n/mm2 for Q235, S235  and SS400

Minimum yield strength>=345n/mm2 for Q345 S355  and Gr 50

Pole’s height:

3m –15m

Length of one part

Within 16m once forming without slip joint

Wall thickness:

2.3mm-30mm

Pole's Shape Can be made:

Round, Polygonal, Taper Octagonal, Taper round,

Round conical, Taper Square, Square.

Arm type can be made:

Single arm, Double arm, Tri-arm, Four-arm

Arm Diameter:

Diameter as 42mm, 48mm, 60mm, 76mm and etc,

can fit to any diameter’s lamps.

Power:

250W to 400W

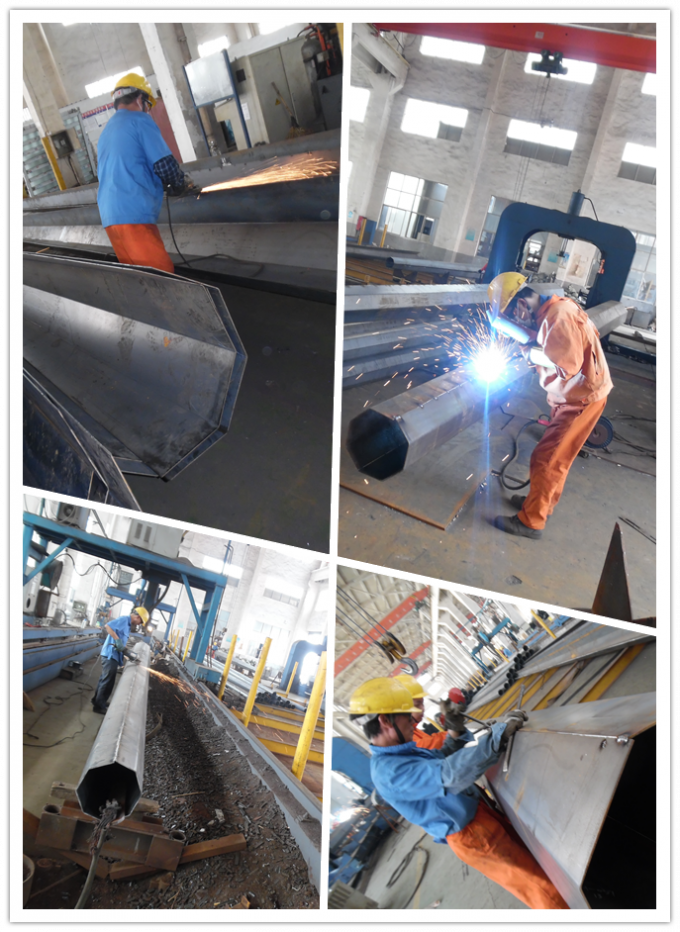

Welding

Advanced submerge-arc welding and CNC welding equipment.

It has past flaw testing,

internal and external double welding makes the welding beautiful

in shape. It confirms with the international welding standard of

CWB and AWS D 1.1

Galvanization:

Hot dip galvanization with thickness of 80-100µm average

in accordance with Chinese standardGB/T 13912-2002 or

American standard ASTM A123, ISO: 2626-1985.

Manufactury Capacity Per Day:

250

Wall thickness Tolerance:



+- 0.1mm from 2.3mm to 4mm. +- 0.2mm from 5mm to 20mm.

+- 0.5mm from 22mm to 30mm

Painting color:

(RAL)Color card  or Refer to client’s requirement

Surface treatment 1:

Black pole, Rough pole

Surface treatment 2:

Hot dip Galvanizing antirust.

Surface treatment 3:

Hot dip galvanizing with powder coating

Temperature range

-35 °C~+45 °C

Wind Speed:

Aganist wind pressure of 120Km/h to 180Km/h, it according to

client’s design.

Base plate mounted

Base plate is square, octagonal or round in shape with slotted

holes for anchor bolt and dimension as per customer’s requirement.

Ground mounted:

The length buried underground as per customer’s requirement.

Quality Control

According to ISO9001-2008 requirements.

Certificates

ISO9001-2008, SGS  Audited Supplier, The AAA grade certificate of goodwill

Other

Less land occupation & easy maintenance.





 Welding:



 Advanced submerge-arc welding and CNC welding equipment.

 It has past flaw testing,

 internal and external double welding makes the welding beautiful

 in shape. It confirms with the international welding standard of

 CWB and AWS D 1.1

 Anticorrosive 10m LED Solar Galvanized Street Light Pole with 2 Cross Arms





 The information to inquiry or purchase
 - Steel pole height
 - Dimension of the flange
 - Position and dimension of the service door
 - Cross arm type and length,the position to install in the steel pole
 - The method to fix the cross arm(use bolt to connect or use one or two template to weld in the steel pole  to install the cross arm)
 - Wind speed
 - Destination port
 - Other.

 Anticorrosive 10m LED Solar Galvanized Street Light Pole with 2 Cross Arms





 Application:
 Highway Seamless Steel Pipe                                Park Seamless Steel Pipe
 Main Roads Seamless Steel Pipe                         Dock Seamless Steel Pipe
 Secondary Roads Seamless Steel Pipe              Stadium Seamless Steel Pipe
 Storage-yar Seamless Steel Pipe                         Overpass Seamless Steel Pipe
 Industrial-Plant Seamless Steel                            Toll-Station Seamless Steel Pipe

 Anticorrosive 10m LED Solar Galvanized Street Light Pole with 2 Cross Arms
