AWSD 1.1 Round 11m 400daN Steel Utility Pole for Electrical Distribition

China AWSD 1.1 Round 11m 400daN Steel Utility Pole for Electrical Distribition supplier
AWSD 1.1 Round 11m 400daN Steel Utility Pole for Electrical Distribition supplier AWSD 1.1 Round 11m 400daN Steel Utility Pole for Electrical Distribition supplier AWSD 1.1 Round 11m 400daN Steel Utility Pole for Electrical Distribition supplier AWSD 1.1 Round 11m 400daN Steel Utility Pole for Electrical Distribition supplier

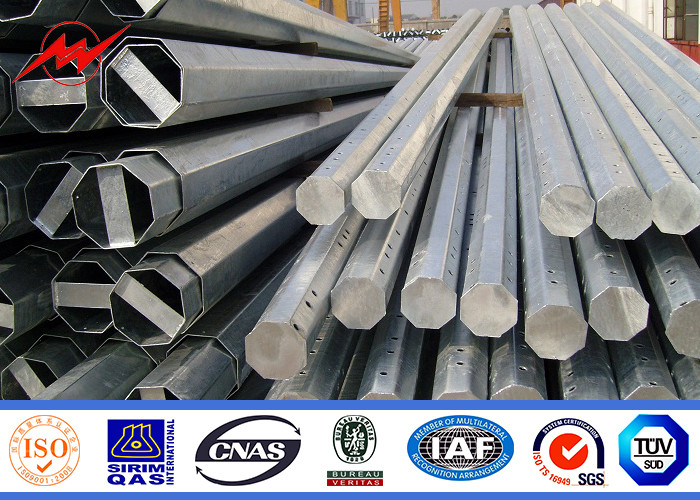

Large Image :  AWSD 1.1 Round 11m 400daN Steel Utility Pole for Electrical Distribition

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/SGS
Model Number: Steel Utility Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
Detailed Product Description
Product Name: Steel Utility Pole Application: Electrical Power Transmission
Standard: ISO9001-2008 Welding Standard: AWSD 1.1
Surface Treatment: Galvanization Warranty: 15 Years
High Light:

metal utility poles

,

electrical utility poles

 Round 11m 400daN Steel Utility Pole for Electrical Distribition with Cross Arm





 Specifications:



Distribution Range
Product Code Length ULS Pole Dimension
Top Base
11M 13.5KN 11M 13.5kN 160 328
12.5M 12KN 12.5M 12KN 160 340
12.5M 16KN 12.5M 16KN 180 380
12.5M 24KN 12.5M 24KN 200 420
14M 16KN 14M 16KN 190 402
14M 24KN 14M 24KN 210 465
15.5M 12KN 15.5M 12KN 160 405
15.5M 24KN 15.5M 24KN 210 500
Note:Tapered 12-sided, direct buried
Pole deflection less than 5% of pole height at 50% ULS

Sub Transmission  Range
Product Code Length ULS Pole Dimension
Top Base
18.5M 24KN 18.5M 24KN 210 660
18.5M 40KN 18.5M 40KN 260 730
21M 40KN 21M 30KN 220 697
21M 40KN 21M 40KN 260 795
24M 30KN 24M 30KN 220 755
24M 40KN 24M 40KN 300 760
Note:Tapered 12-sided, direct buried

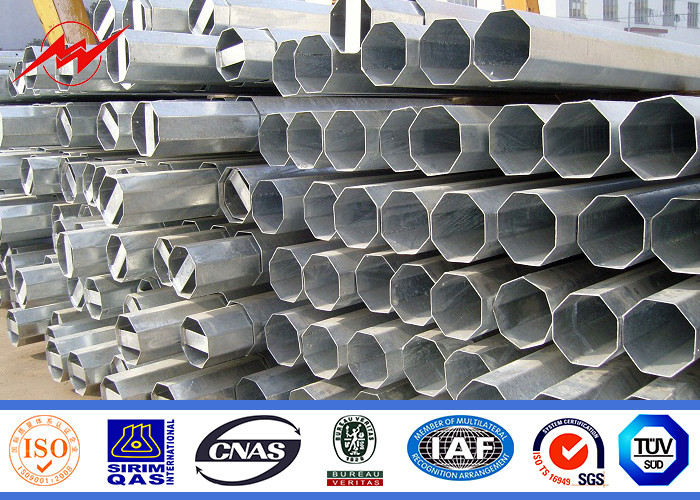

AWSD 1.1 Round 11m 400daN Steel Utility Pole for Electrical Distribition 0





 Description:
 The material we use is from Baosteel.According to the different strength request,we can use the  Q235,Q345 and GR65.The strength of GR 65 is best and Q235 is lowest.
 For the street light pole,we usually choose Q235 and Q345.
 The good quality of steel material guarantee the good quality of the finished steel pole.

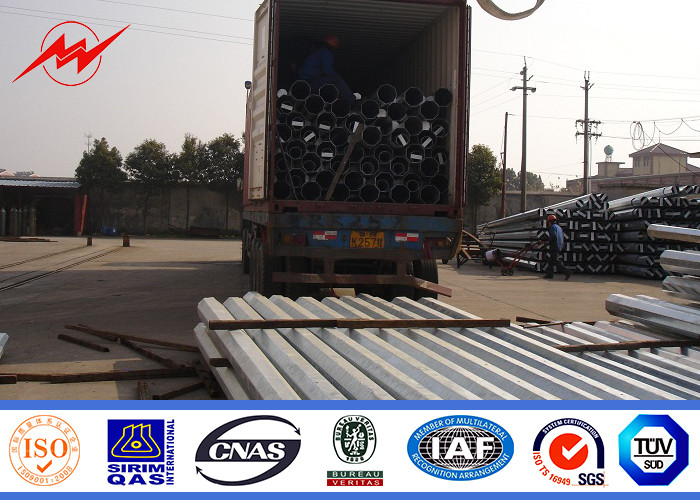

 AWSD 1.1 Round 11m 400daN Steel Utility Pole for Electrical Distribition 1





 Installation
 -Remove all the equipment on the pole during Assembly.
 -Circle a sling around th epole shaft of each section.
 -Fix the sling on top section to one pulley block.
 -The sling on the bottom section is tightly fixed and fixed at the center of gravity.
 -Make the steel pole vertical by tighten the sling of the top section.
 -Fix the steel pole.
 -Remove the sling.

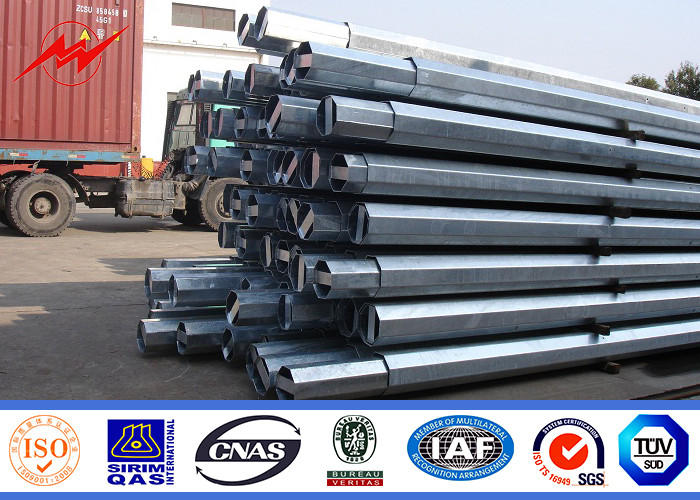

 AWSD 1.1 Round 11m 400daN Steel Utility Pole for Electrical Distribition 2





 The information to inquiry or purchase
 -Steel pole height
 -Dimension of the flange
 -Position and dimension of the service door
 -Cross arm type and length,the position to install in the steel pole
 -The method to fix the cross arm(use bolt to connect or use one or two template to weld in the steel pole  to install the cross arm)
 -Wind speed
 -Destination port
 -Other.





 Design: We have our standard pole with our design, OEM and ODM is also accpetable
 Packages: Standard seaworthy
 Delivery time: with two weeks after confirm the order.
