BLACK Electrical Wires And Cables Heat Resistance Environmentally

China BLACK Electrical Wires And Cables Heat Resistance Environmentally supplier
BLACK Electrical Wires And Cables Heat Resistance Environmentally supplier BLACK Electrical Wires And Cables Heat Resistance Environmentally supplier BLACK Electrical Wires And Cables Heat Resistance Environmentally supplier BLACK Electrical Wires And Cables Heat Resistance Environmentally supplier

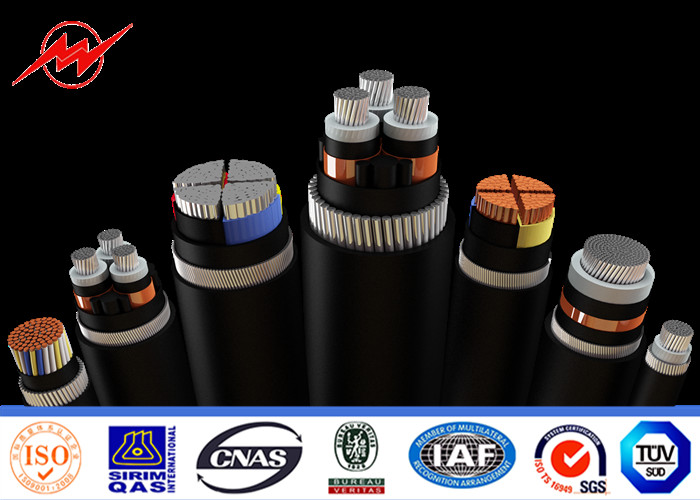

Large Image :  BLACK Electrical Wires And Cables Heat Resistance Environmentally

Product Details:

Place of Origin: CHINA
Brand Name: BAO WO
Certification: ISO/CE/UL/CSA
Model Number: up to 35kv pvc insulated power cable

Payment & Shipping Terms:

Minimum Order Quantity: 3000 Meters
Price: USD1-100 per meter
Packaging Details: As per customer request
Delivery Time: 10-20 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union
Supply Ability: 100000 meters per day
Contact Now
Detailed Product Description
Type: High Voltage Cable,medium Voltage Cable Surface: PVC Or XLPE Insulation
Voltage: 0.6kv—35kv Model Number: YJV/YJLV/VV/VLV/KVV/JKV/JKLV/JL/YJHLV6
Standard: ISO9001 JB8734.1~5-1998 Jacket: PE PVC/XLPE
Coductor: Copper Or Aluminum Alloy

Copper/Aluminum Alloy conductor electrical wire PVC insulated for power transmission.





Specifications:

sheath:

PVC/XLPE

Outer Sheath:

PVC or PE

Conductor

99.5% Pure Oxygen Free Copper or Aluminum alloy

Voltage :

0.6/1.2kv,10/22/35kv,220kv

No. of cores:

1, 2, 3, 4, 5, 3+1, 4+1, 3+2

Section of conductor(mm ²):

1.5~630 mm2

Application :

Non-armored PVC cable are suited for laying indoors ,In cable trench ,On cable

racks and in pipes. Unable bear external pressures and tensions.

Common Model name :

VV       Copper/Aluminum core ,PVC insulated ,PVC sheathed power cable

VLY     Copper/Aluminum core, PVC insulated ,PE sheathed power cable

YJL       XLPE insulated ,PVC/PE sheathed power cable

KVV     PVC(XLPE)Insulated and sheathed Control Cable

JKV      copper/aluminum core PVC insulated aerial cable

YJHLV  XLPE insulated ,thin steel wire armored ,PVC/PE sheathed cable

INSULATION THICKNESS(mm) :

1.0—10

Color:

BLACK

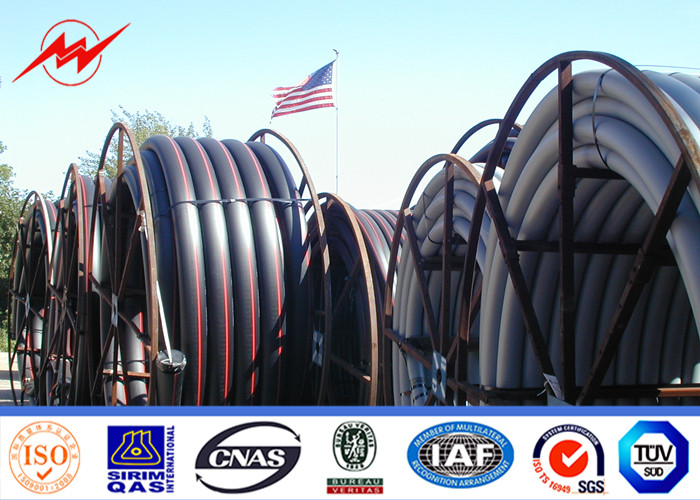

Packing:

100 meters per roll or 500 meters per roll or as per requirement

Delivery time:

10—20 days

Payment Terms:

L/C,D/A,D/P,T/T, Western Union



   BLACK Electrical Wires And Cables Heat Resistance Environmentally



Detail indruction

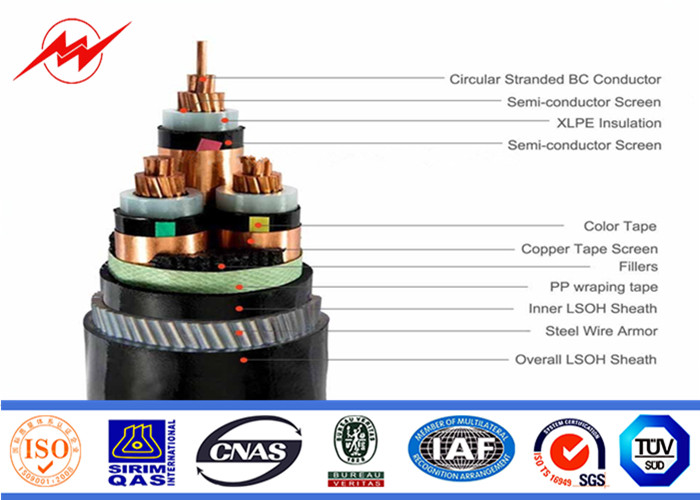

  The insulation material of this cable is cross-linked polyethylene, which has a heat-resistance rating up to 90℃. Thus this product is excellent for applications requiring intensive heat resistance. It is categorized as flame retardant, heat-resistant, or environmentally friendly depending on its features.

  During last 15-20 years the demand for cross-linked polyethylene insulated cable has expanded rapidly and this type of cable has become the main type for power cables.
  BAO WO  Cable has actively developed and applied recent manufacturing techniques for XLPE insulated cable, and has been engaged in a constant effort to obtain more stable quality, and produce XLPE cables for higher voltages, exceeding 220kV.
  The products in this catalogue are based on the GB/T 12706-2008 or IEC 60502-2004 specification.

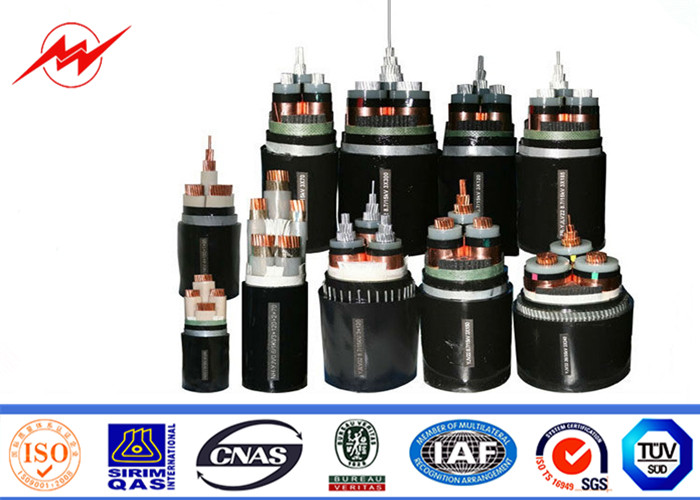

  BLACK Electrical Wires And Cables Heat Resistance Environmentally



Working Condition
1, Long-term working temperature by cable conductor is 90℃.
2, Max. temperature of cable conductor shall be no more than 250℃ during short circuit (the longest lasting time shall be no more than 5 seconds).
3, Environment temperature for installation is no less than 0℃.
4, Min bending radium of cable:
It is no less than 15 times that of cable outer diameter for cable with three cores.
It is no less than 20 times that of cable outer diameter for cable with single core.
5,A.C. rated voltage U0/U of cable is 0.6/1kV~26/35kV.
U0: rated A.C. voltage of conductor to earth OR between metallic shielding for cable designing, which is called phrase voltage.
U: rated A.C. voltage between conductors for cable designing, which is called wire voltage.
Um: Max endurable value of “Max system voltage” for cable Working Conditi
