Class Two 40FT Height Steel Electrical Power Pole 5mm Thickness For 69KV Transmission Distribution Application

China Class Two 40FT Height Steel Electrical Power Pole 5mm Thickness For 69KV Transmission Distribution Application supplier
Class Two 40FT Height Steel Electrical Power Pole 5mm Thickness For 69KV Transmission Distribution Application supplier Class Two 40FT Height Steel Electrical Power Pole 5mm Thickness For 69KV Transmission Distribution Application supplier Class Two 40FT Height Steel Electrical Power Pole 5mm Thickness For 69KV Transmission Distribution Application supplier Class Two 40FT Height Steel Electrical Power Pole 5mm Thickness For 69KV Transmission Distribution Application supplier

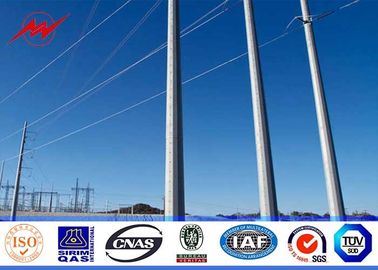

Large Image :  Class Two 40FT Height Steel Electrical Power Pole 5mm Thickness For 69KV Transmission Distribution Application

Product Details:

Place of Origin: Yixing,Jiangsu,China
Brand Name: Milky Way
Certification: ISO,BV
Model Number: Electric Power Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 Poles
Price: Negotation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 300pcs per day
Contact Now
Detailed Product Description
Height: 40ft Plant Depth: 1.8m Or 2.3m Underground
Minimum Yield Strength: 355 Mpa Appearance: Tubular,triangular,angular,lattice
Wind Speed: 35m/s Accessories: Steped Bolt
High Light:

metal power poles

,

electric utility poles

Class Two 40FT Steel Electrical Power Pole 5mm Thickness For 69KV Transmission Distribution Line





Options:



• The Power Distribution Pole is available in various length, diameters and hole arrangements.

• Multisided or Tapered round variations.

• The Power Distribution Pole covers Voltage between 10-220KV.

• The Power Distribution Pole includes: suspension pole, stain pole and angle pole in different forms.

• Standard Corrosion Protection: hot dip galvanising (above and in-ground)

• Additional in-ground protection is available for special circumstances (soil condition). For example: Epoxy Coating.

• Pre-drilling for removable safety steps is available.

• Cross arms available.

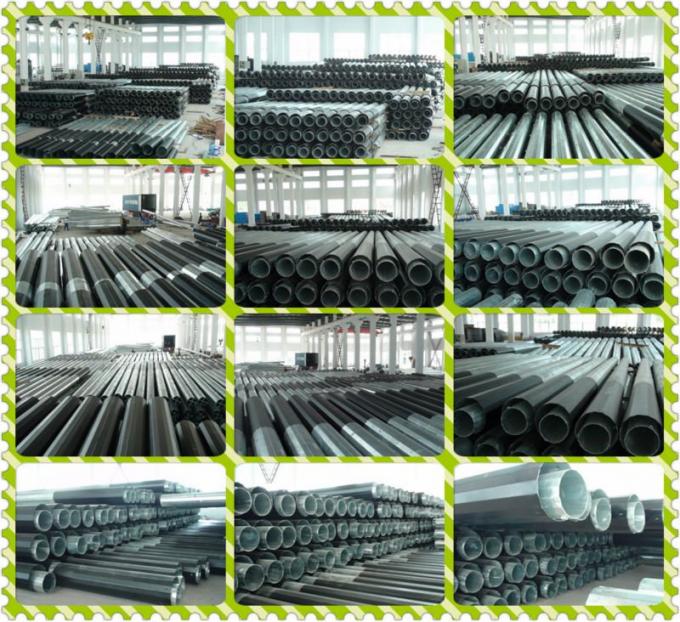

Workshop Picture

Class Two 40FT Height Steel Electrical Power Pole 5mm Thickness For 69KV Transmission Distribution Application 0

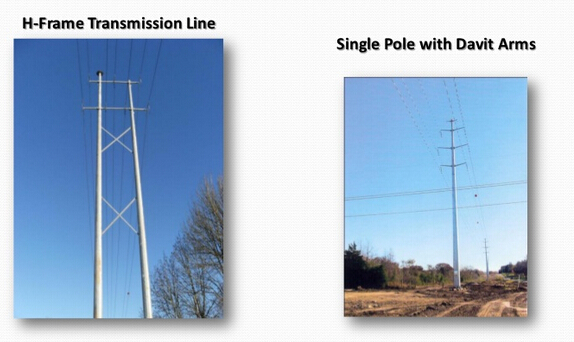

Pole Type



Class Two 40FT Height Steel Electrical Power Pole 5mm Thickness For 69KV Transmission Distribution Application 1







Technical Data Sheet(F=10KN)



Dimension 10m 11m 11.8m 13m 14m 16m 18m
DI(mm) 180 180 180 180 180 180 180
D2(mm) 360 380 400 400 410 445 475
T(mm) 3 3 3 3 3.5 3.75 3.75
h(m) 1.6 1.8 1.9 2.1 2.3 2.6 3

More details and load,feel free to call me.



Available Foundation Types



Direct Embedment

Anchor Bolt/Base Plate

Vibratory Steel Caisson



Available Finishes



Galvanized per ASTM A123

Paint over galvanized,paint over black steel

Powder Coating



Standard Features of in-ground and base plate mounted



In-Ground Mounted:



12-sided pole shaft

Welded top cap

Mounting holes (to your specification if required)

Identification plate

M12 earth point 250mm above the nominal ground line

M24 nut 250mm above the nominal ground line (to assist lifting)

Additional in-ground corrosion protection 200mm above to 400mm below the nominal ground line

Anti-sink straps

Hot dip galvanised finish



Base Plate Mounted:



12-sided pole shaft (40kN to 80kN)

16-sided pole shaft (100kN & 120kN)

Welded top cap

Mounting holes (to your specification if required)

Identification plate

M12 earth point 250mm above the pole base

Two lifting gussets on the base plate

Anchor bolts, templates, nuts & washers

Hot dip galvanised finish



The information to inquiry or purchase



- Steel pole height and force

- Cross arm type and length,the position to install in the steel pole

- The method to fix the cross arm(use bolt to connect or use one or two template to weld in the steel pole to install the cross arm)

- Safety factor of the steel pole

- Wind speed

- Type of climbing rung

- Destination port

- Other.

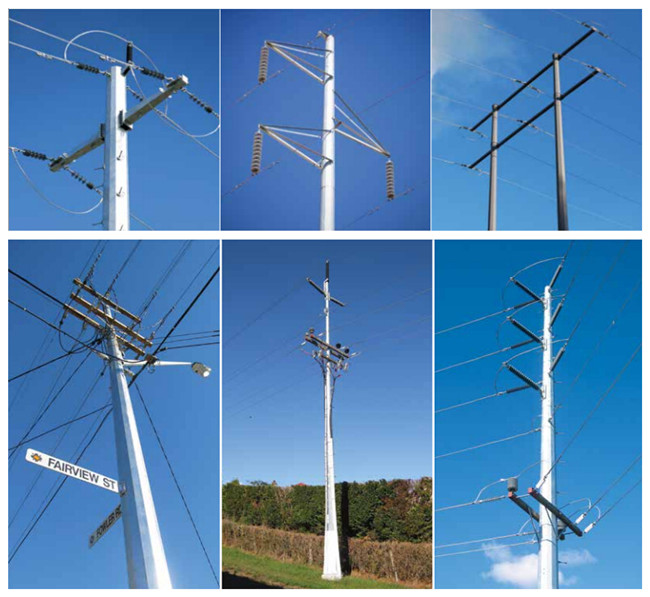

Pole Application:

Transmission

Distribution

Steel Substation Structure



Class Two 40FT Height Steel Electrical Power Pole 5mm Thickness For 69KV Transmission Distribution Application 2

Pole Advantage:



Power Distribution Poles are required especially in populated areas where these poles are favoured because they require less space than lattice towers and are more acceptable visually. Weighing of the steel made Power Distribution poles is approximately 50-70% less than comparable wood structures, the steel poles are easier and less expensive to handle and install.
