Communication Telecommunic Steel Mono Pole Telecom Three Legs Tower With 86 Galvanization Standard

China Communication Telecommunic Steel Mono Pole Telecom Three Legs Tower With 86 Galvanization Standard supplier
Communication Telecommunic Steel Mono Pole Telecom Three Legs Tower With 86 Galvanization Standard supplier Communication Telecommunic Steel Mono Pole Telecom Three Legs Tower With 86 Galvanization Standard supplier Communication Telecommunic Steel Mono Pole Telecom Three Legs Tower With 86 Galvanization Standard supplier Communication Telecommunic Steel Mono Pole Telecom Three Legs Tower With 86 Galvanization Standard supplier

Large Image :  Communication Telecommunic Steel Mono Pole Telecom Three Legs Tower With 86 Galvanization Standard

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/
Model Number: Mono Pole Tower

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Detailed Product Description
Product Name: Communication Telecommunic Steel Mono Pole Telecom Three Legs Tower With 86 Galvanization Standard Application: Communication Distrubution
Surface Treatment: Hot Dip Galvanization Dimension Torlance: +- 2%
Welding Standard: AWS D 1.1 Galvanization Standard: ASTM A 123
Material: Q345
High Light:

monopole transmission tower

,

monopole cell tower

Communication Telecommunic Steel Mono Pole Telecom Three legs Tower With 86 Galvanization Standard



 Specifications:





Suit for

Communication distribution

Shape

Conoid ,Multi-pyramidal,Columniform,polygonal or conical

Material

Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,
SS490, to ST52-

Torlance of the dimension

+- 2%

Power

10  KV ~550 KV

Safety Factor

Safety factor for conducting wine : 8
Safety factor for grounding wine : 8

Design Load in Kg

300~ 1000 Kg applied to 50cm from the to pole

Marks

Name plate through rivert or glue ,engrave ,emboss as per customer requirement

Surface treatment

Hot dip galvanized Following ASTM A 123,
color polyester power or any other standard by client required

Joint of Poles

Insert mode,inner flange mode,face to face joint mode

Design of pole

Against earthquake of 8 grade

Wind Speed

160 Km/Hour .  30 m /s

Minimum yield strength

355 mpa

Minimum ultimate tensile strength

490 mpa

Max ultimate tensile strength

620 mpa

Standard

ISO 9001

Length of per section

Within 14m once forming without slip joint

Welding

We has past flaw testing.Internal and external double welding makes
the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1

Thickness

1 mm to 30 mm

Production Process

Row material test → Cutting →Molding or bending →
Welding (longitudinal )→Dimension verify →Flange welding
→Hole drilling →Calibration → Deburr→Galvanization or
powder coating ,painting →Recalibration →Thread →Packages

Packages

Our poles as normal cover by Mat or straw bale at the top and bottom ,
anyway also can following by client required , each 40HC or OT can
loading how many pcs will calculation base on the client actually
specification and data





 Description:
 The communication tower is used for the communication distribution.

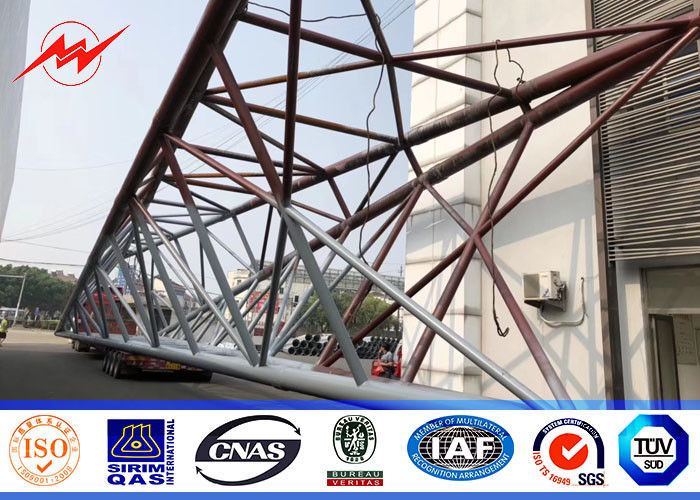

Communication Telecommunic Steel Mono Pole Telecom Three Legs Tower With 86 Galvanization Standard 0







 The material we use is from Baosteel.According to the different strength request,we can use the    Q235,Q345 and GR65.The strength of GR 65 is best and Q235 is lowest.





 More Pictures:

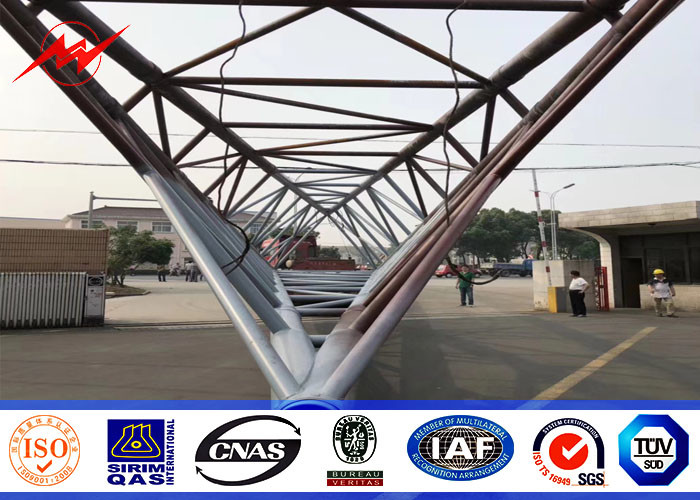

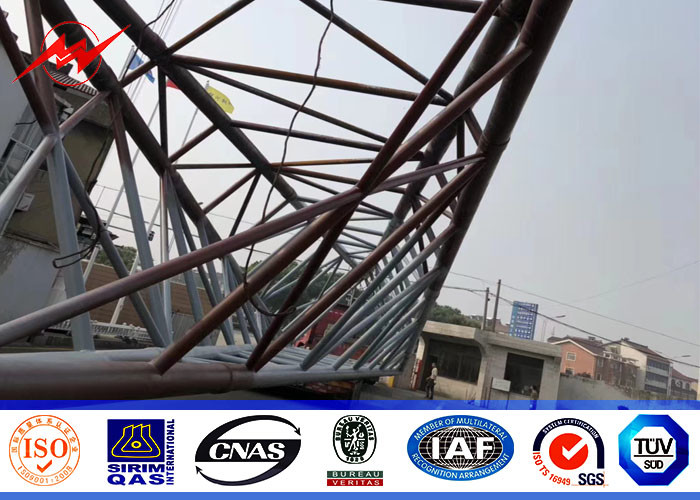

Communication Telecommunic Steel Mono Pole Telecom Three Legs Tower With 86 Galvanization Standard 1





 Company Introduction:


 Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of  the largest sea port of China ,Shanghai,Port .
 Our Company has 24 years experience on producing the steel poles including the transmission power  pole,street light pole,high mast pole and so on.
 We exported to oversea countries since 1991 and our products have been delivered to more than 70  countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa  and so on.
 We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the  high mast pole for Sochi Winter Olympic Game and so on.

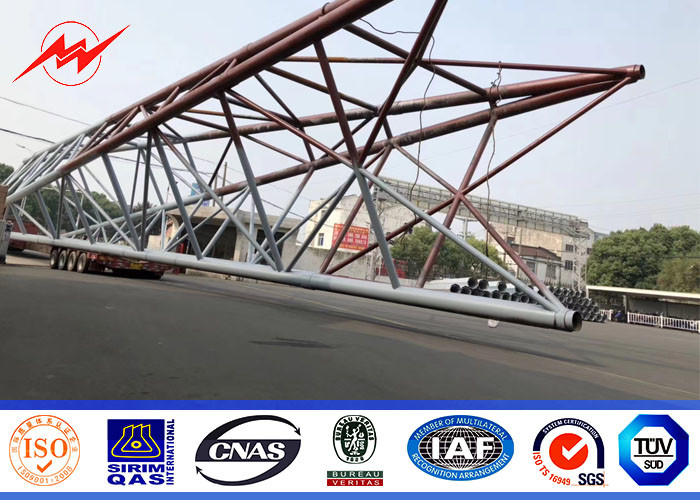

 Communication Telecommunic Steel Mono Pole Telecom Three Legs Tower With 86 Galvanization Standard 2
