Payment & Shipping Terms:
|Power:||10kv~550kv||Torlance Of Dimenstion:||+-2%|
|Thickness:||1mm To 30mm||Surface Treatment:||Hot Dip Galvanization|
|Suit For:||Electricity Distribution||Length Of Per Section:||Within 14m Once Forming Without Slip Joint|

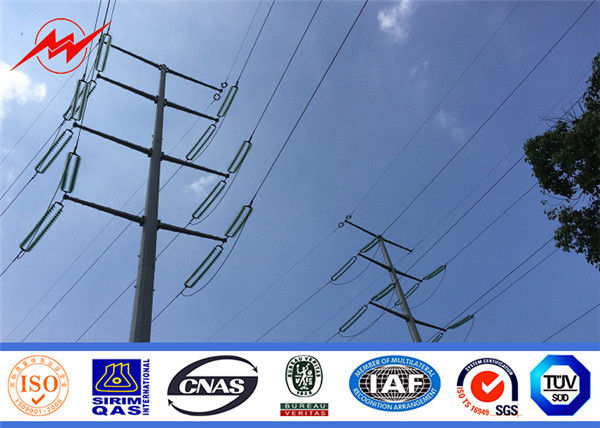

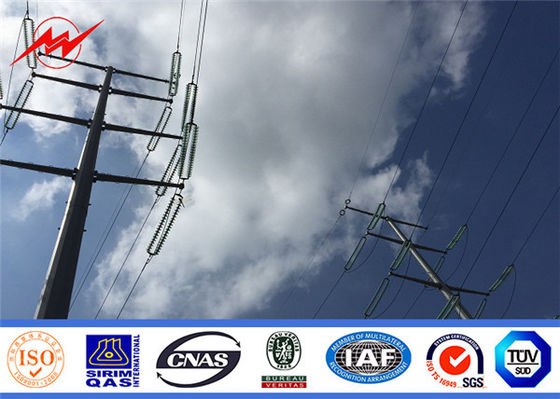

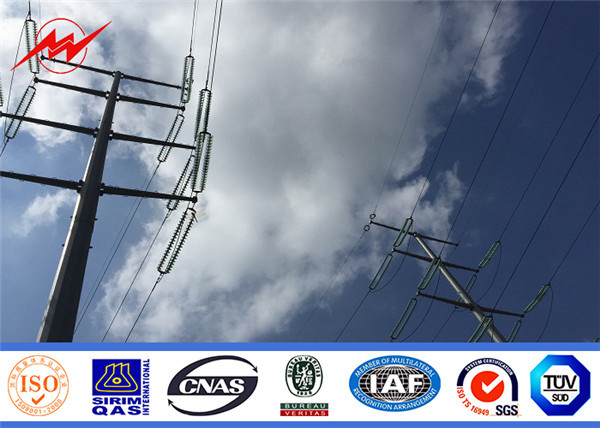

Concial Steel Utility Pole For Electricity Transmission , Power Distribution Pole 10kv - 550kv
galvanized steel tapered power pole
|Pole Type||Brief Description||Top Across Flat Dia. (mm)||Bottom Across Flat Dia. (mm)||Shaft Thickness (mm)||Shaft Weight (kg)||Ultimate Load (kg)||Color Code (No.of Bands)|
|OC10||10m Steel Pole, Low Voltage||100||100||4||227||803||White (1)|
|OC13S||13m Steel Pole, Medium Voltage, Single Circuit||155||155||4||377||1530||Red (1)|
|OC14S||14m Steel Pole, Medium Voltage, Single Circuit||155||155||4||420||1564||Yellow (1)|
|OC14D||14m Steel Pole, Medium Voltage, Single Circuit||155||155||4||544||2431||Yellow (2|
|OC15S/D||15m Steel Pole, Medium Voltage, Single & Double Circuit||155||155||4||466||1545||Green (1)|
|OC10SFS||10m Steel Pole, Self Support, Low voltage||230||230||5||527||4968||White (3)|
|OC13SFS||13m Steel Pole, Self Support, Single Circuit||230||230||7||1143||8781||Red (3)|
|OC14SFS||14m Steel Pole, Self Support, Single Circuit||230||230||7||1282||8874||Yellow (3)|
|OC15SFS||15m Steel Pole, Self Support, Single Circuit||230||230||7||1429||8898||Green (3)
We are the professional manufacturer for producing many kinds of telecom towers , power distribution pole, trafic signs , stree lighting poles . we have more than 10 years experiences in the telecom equipment industry.
Getting much high appraisement from our old customers,like China Mobile ,China Unicom & China telecom and so on.
We have brought series of professional and advanced machines, such as auto cutting machine, bending machine, auto welding machine. Now we have formed waterline production capacity, the productivity can reach more than220 metric tonnage per month.
1. We can supply the products base on client required drawing , also can supply the design for any kinds of power distribution poles( electric poles) ,street lighting poles, high mast poles ,garden light poles , outdoor lighting ,flag poles ,traffic light poles .
2. Matercials :hot rolled coil from Q235 and Q345 .
3. Treating: Hot dip galvanized Following ASTM A 123 or any other stardand by client required.
4. Packing: Plastic bulble , Mat &Straw Bale or following client required
5. Length : within 11meters once forming( single section)
6. Thickness:3mm. 6mm, 8mm, 12mm , etc
7. Shape: polygonal(6-side,8side,12-side,16side) round tapered
8. Easy install and maintenance.
Estbilsed in 1991,Jiangsu Milky Way Steel Poles is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on
We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV transmission poels ,our products have been deliveried to more than 70 contries and areas ,including America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia and so on
