Conical 12.20m Pipes Steel Utility Pole For Electrical Transmission Power Line

China Conical 12.20m Pipes Steel Utility Pole For Electrical Transmission Power Line supplier
Conical 12.20m Pipes Steel Utility Pole For Electrical Transmission Power Line supplier Conical 12.20m Pipes Steel Utility Pole For Electrical Transmission Power Line supplier Conical 12.20m Pipes Steel Utility Pole For Electrical Transmission Power Line supplier Conical 12.20m Pipes Steel Utility Pole For Electrical Transmission Power Line supplier

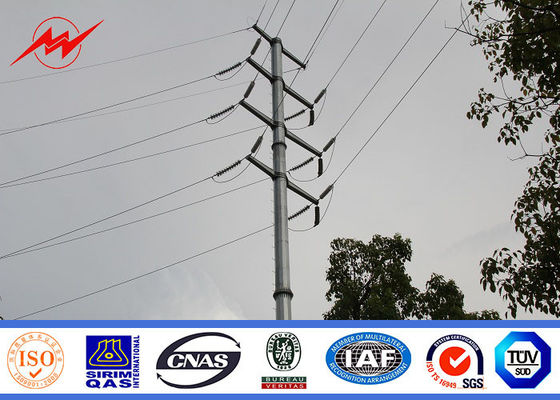

Large Image :  Conical 12.20m Pipes Steel Utility Pole For Electrical Transmission Power Line

Product Details:

Place of Origin: Jiangsu,China
Brand Name: Milky Way
Certification: SGS/BV/ISO9001
Model Number: Steel Utility Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customers' request
Delivery Time: 10-30 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 30,000 Tons per month
Contact Now
Detailed Product Description
Name: Steel Poles 12.20m Pipes Steel Utility Pole For Electrical Transmission Type: Round,Conical
Length: 5-25m Material: Q235,Q345,Gr65
Thickness: 2.5mm-16mm Surface Finished: Hot Dip Galvanized
Standard: SGS/BV/ISO9001
High Light:

metal utility poles

,

electrical utility poles

Steel poles 12.20m pipes Steel Utility Pole for electrical transmission





Lamp power

20 W- 400 W  (HPS/MH)

220V (+-10%) /50Hz

Torlance of the dimenstion

+- 2%

Power

10  KV ~550 KV

Safety Factor

Safety factor for conducting wine : 8

Safety factor for grounding wine : 8

Design Load in Kg

300~ 1000 Kg appliced to 50cm from the to pole

Marks

Nane palte through rivert or glue ,engrave ,emboss as per customer requirement

Surface treatment

Hot dip galvanized Following ASTM A 123,color polyester power or any other standard by client required.

Joint of Poles

Insert mode,innerflange mode,face to face joint mode .

Design of pole

Against earthquake of 8 grade

Wind Speed

160 Km/Hour

Minimum yield strength

355 mpa

Minimum ultimate tensile strength

490 mpa

Max ultimate tensile strength

620 mpa

Standard

ISO 9001

Length of per section

Within 14m once forming without slip joint

Welding

We has past flaw testing.Internal and external double welding makes the welding beautiful in shape Welding Standard :AWS ( American Welding Society ) D 1.1

Thickness

1 mm to 30 mm

Production Process

Rew material test → Cuttingj →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages

Packages

Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data.



Conical 12.20m Pipes Steel Utility Pole For Electrical Transmission Power Line 0





Products:





Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on.



 We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV transmission poels ,our products have been deliveried to more than 70 contries and areas ,including America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia and so on



Conical 12.20m Pipes Steel Utility Pole For Electrical Transmission Power Line 1





Material:





All of our material are purchased from famous mill factory to assure the quality.



1.A mill certificate issued by the mill factory with stamp and signature must be provided before unload the material in our factory ,otherwise we have our reason to refuse the material .



2.Before put into production ,all the material must pass the chemical and physical analysis to make sure that they have meet the requested strength and component.



Conical 12.20m Pipes Steel Utility Pole For Electrical Transmission Power Line 2
