Product Details:
Payment & Shipping Terms:
|
| Material: | Steel,Q345,With Miminum Yield Strength 345mpa | Application: | Electric Power Transmission And Distribution |
|---|---|---|---|
| Surface Treatment: | Hot Dip Galvanized,Hot-dip-galvanized Following ASTM123 | Color: | Customer Request |
| Height: | By Client Required | ||
| High Light: | steel power pole,transmission line poles |
||

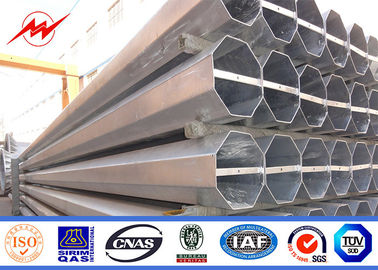

25 footer 30 footer 35 footer Transmission Line Electrical Power Pole
| Application | Electricity distribution |
| Shape | Conoid ,Multi-pyramidal,Columniform,polygonal or conical |
| Torlance of dimenstion | Q345B/A572,minimum yield strength>=345n/mm2 |
| Power | 10 KV ~550 KV |
| Safety Factor | Safety factor for conducting wine : 8 Safety factor for grounding wine : 8 |
| Design Load in Kg | 300~ 1000 Kg appliced to 50cm from the to pole |
| Marks | Name palte through rivert or glue ,engrave ,emboss as per customer requirement |
| Surface treatment | Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required. |
| Joint of Poles | Insert mode,innerflange mode,face to face joint mode |
| Design of pole | Against earthquake of 8 grade |
| Wind Speed | 160 Km/Hour . 30 m /s |
| Standard | ISO 9001 |
| Welding | We have past flaw testing.Internal and external double welding makes the welding beautiful in shape Welding Standard :AWS ( American Welding Society ) D 1.1 |
| Thickness | 1 mm to 30 mm |
| Production Process | Raw material test → Cutting →Molding or bending →Weldng (longitudinal )→Dimension verify→Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting→Recalibration →Thread →Packages |

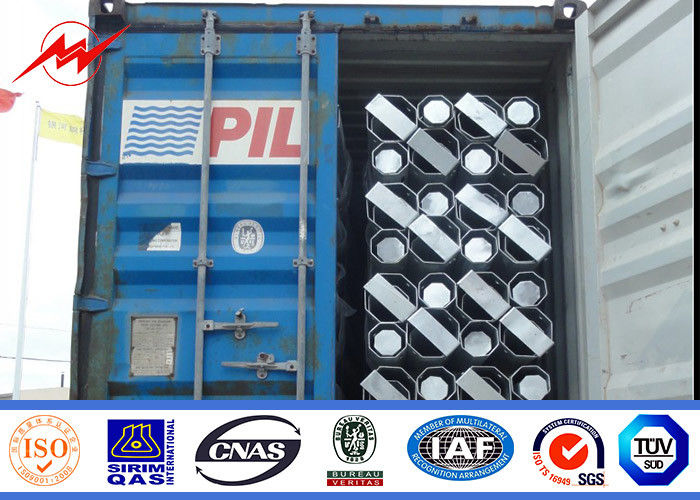

| Packages | Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data. |
Advantage
1. We can supply the products base on client required drawing , also can supply the design for any kinds of power distribution poles( electric poles) ,street lighting poles, high mast poles ,garden light poles , outdoor lighting ,flag poles ,traffic light poles .
2. Matercials :hot rolled coil from Q235 and Q345 .
3. Treating: Hot dip galvanized Following ASTM A 123 or any other stardand by client required.
4. Packing: Plastic bulble , Mat &Straw Bale or following client required
5. Length : within 11meters once forming( single section)
6. Thickness:3mm. 6mm, 8mm, 12mm , etc
7. Shape: polygonal(6-side,8side,12-side,16side) round tapered
8. Easy install and maintenance.
1. Factory direct sale.
2. Industry and trade integration business.
3. 15 years experience.
4. Various designs.
5. ODM, OEM acceptable.
6. Flexible payment.
7. Fast, accurate quotes.
8. Our good service.
9. Technical support by e-mail.
10. Calling service.
11. Provide maintenance instruction video
